KT-KD50X

Name: KT-KD50X
Brand: Kato Vision
SKU: KT-KD50X
Price: 1242323 NGN
Availability: InStock

Kato Vision

Blackmagic ATEM&VMIX Controller - Aluminum

go to the technical sheet

₦ 1,242,323.00

₦ 1,155,649.00 VAT excl.

Available 3 unit in 4 Days

Datasheet: Download

Not sure if this is the right product for you? Talk to a consultant

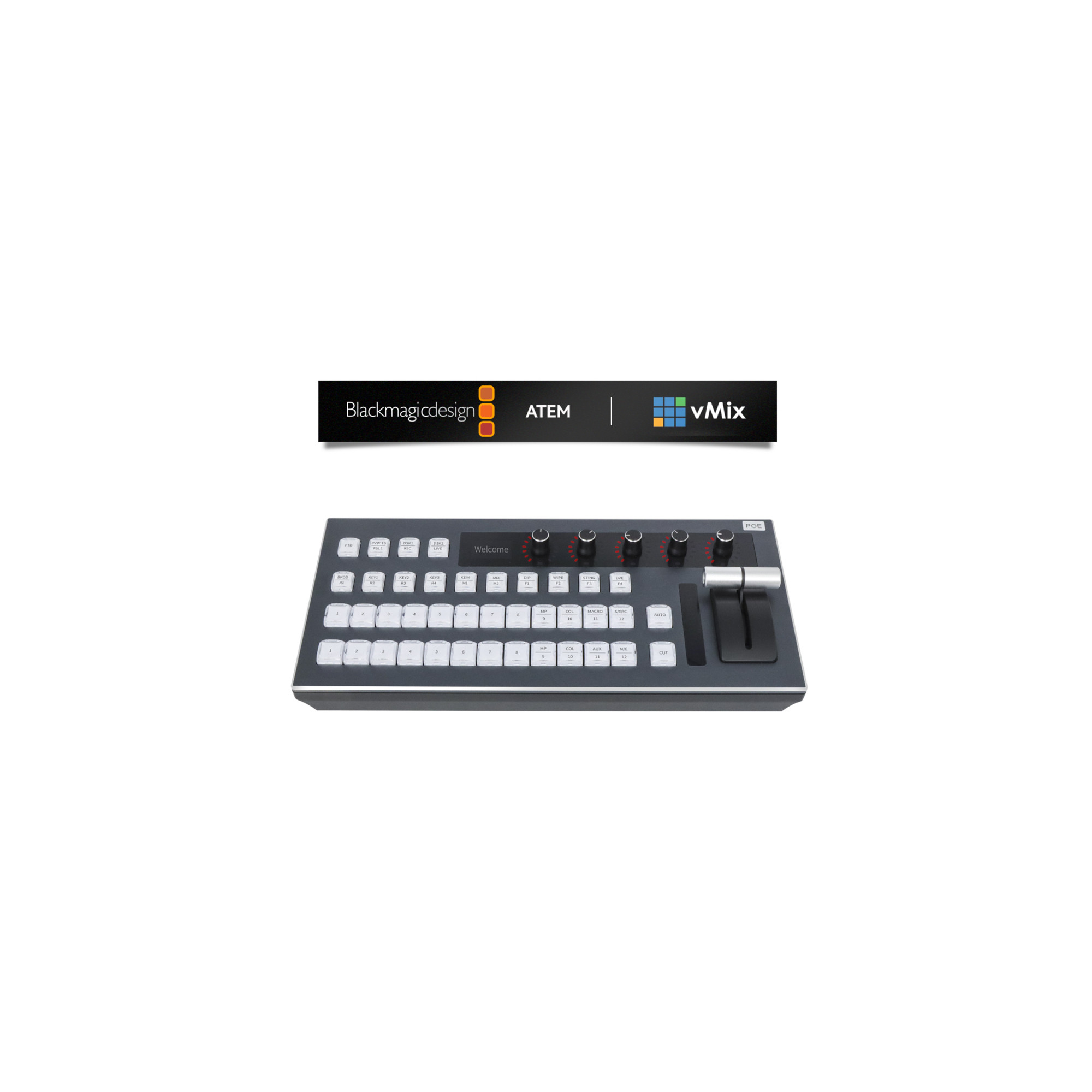

Kato Vision Blackmagic ATEM&VMIX Controller - Aluminum

Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

° Brand-new upgrade function, custom combination to play more effects
The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.

° Supports up to 12 channels of live video switching
Both ATEM and vMix support 12 channel PGM+12 channel PVW live switching.
Customized audio settings support Audio, XLR, MIC, MP and other multi-channel audio control functions.

° Compatible with plenty of live broadcast software
In addition to supporting ATEM series devices, it also supports MIDI protocol, compatible with Vmix and other various live broadcast software.
Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc., multi-purpose machine is more worry-free.

° Support 24-channel tally output function
Built-in DP25 tally interface, supports up to 24 tally signal output functions.

° USB 2.0, LAN dual interface connections, simple and convenient
Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supports LAN connection ), and can transmit video signals to computers and live video production software without a capture card, simple and convenient.

Download

Datasheet

Download (269.09KB)

Main Parameters
Audio Control: 1ch master+4ch input
Transition Control: Auto transitions, hard cuts, T-Bar
OLED Display: Set device parameters
Indicator Light: Indicate switcher status
Tally: 12ch PGM+12ch PVW

ATEM Functions
Connection Method: 100M LAN,support POE 802.3af
Video Control: 12ch inputs
Transition Effects: MIX / DIP / WIPE / STING / DVE
Upstream Keyboard: BKGD / KEY1 / KEY2 / KEY3 / KEY4
Downstream Keyboard: DSK1 / DSK2

Vmix Functions
Connection Method: 100M LAN,support POE 802.3af,USB
Video Control: 12ch inputs
Transition Effects: 4 kinds
Picture-in-picture Function: R1 / R2 / R3 / R4
Playback Setting: M1 / M2

Power Supply
Input Voltage: DC 12V
Input Current: 0.3A
Rated Power: 4W
POE: POE 802.3af for optional
Powered by USB: Support ( rely on the USB power supply capability of the computer )

Others
Use Environment: Indoor
Operating Temperature: -10°C~40°C
Storage Temperature: -20°C-60°C
Dimensions: 354*165*67mm
Weight: 1.5 kg
