SmartView Duo 2

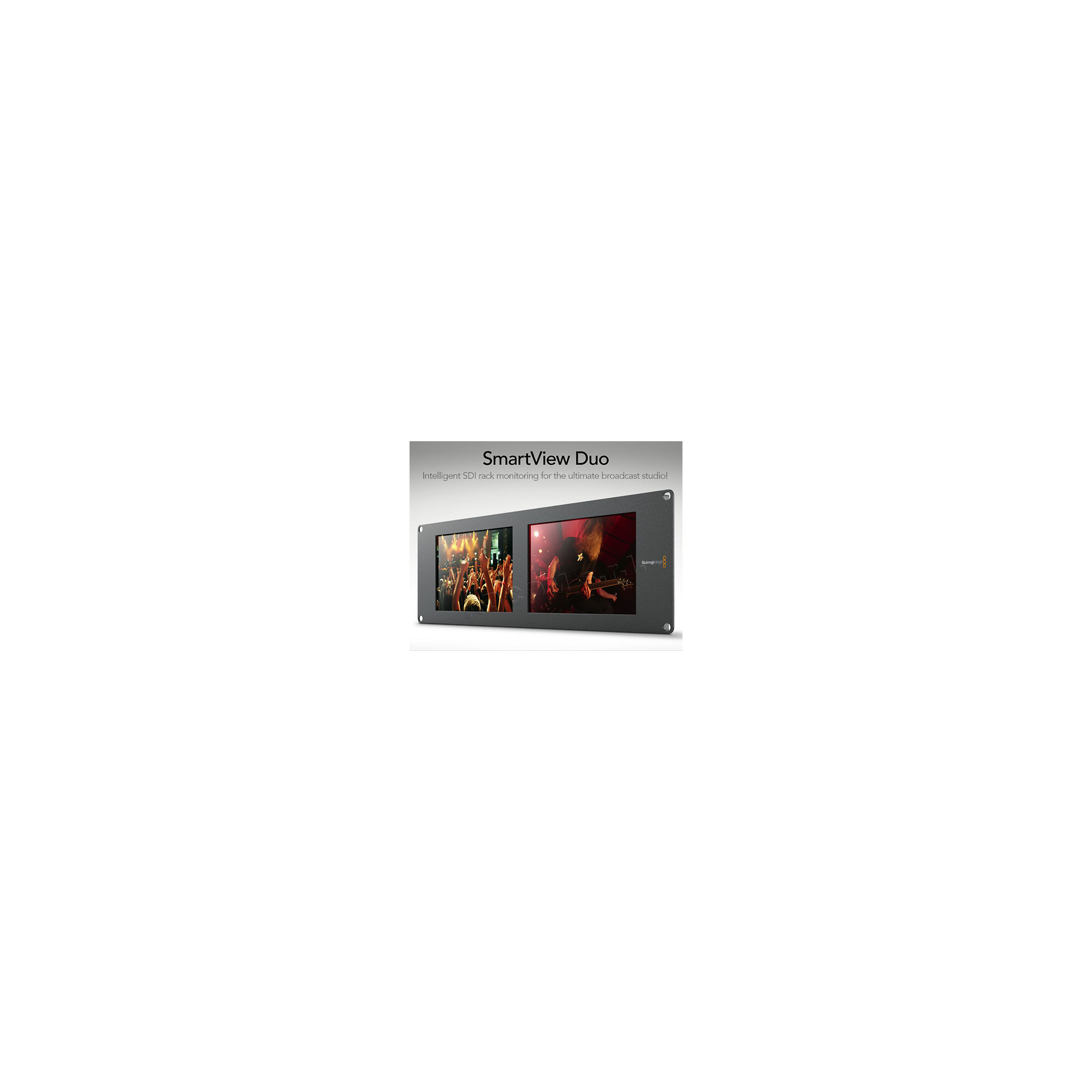

Blackmagic Design SmartView Duo 2 HDL-SMTVDUO2 with 2 8" rack mountable LCD monitors. It takes up 3U - SD / HD-SDI, 3 Gb / s with pass-through Reclocked inputs and ethernet connection for setup - Tally function on 9-pin D connector by means of red, green, blue borders. 110/220 Vac power supply 12 Vdc output included.

THESE MONITORS ALLOW THE OPTIMAL VIEW OF AN HD-SDI SIGNAL
IN THE CASE OF A 16:9 SD-SDI SIGNAL THE VIEW IS COMPRESSED IN HORIZONTAL

Intelligent SDI monitoring with broadcast quality scopes
For high quality SDI monitoring, there is no better solution than SmartView monitors. Thin and light, they are ideal for the studio and perfectly portable, and they automatically switch between SD, HD and 3G-SDI. SmartView comes in three great models: SmartView HD features a large 17" display, SmartView Duo features two independent 8" displays, and SmartScope Duo 4K also features waveform scopes that can be configured on either of the two 8" displays.

Brilliant SDI Monitoring
SmartView monitors are the perfect solution for SDI monitoring from anywhere. They are great for broadcast, post production and on set, and fit easily into road cases and broadcast trucks. If your workflow includes live production switchers, you can build a video wall in your central video room to monitor all of your camera sources. Create your own custom monitoring solution by racking multiple SmartView models and viewing your images and waveforms side by side!
SmartView comes in three great models! SmartView HD features a large 17" LCD display for Full HD 1920 x 1080 monitoring that shows every single detail. With a 3 rack unit design, SmartView Duo features two independent 8" displays that are just 1" deep. SmartScope Duo 4K lets you monitor signal status with a waveform, vectorscope, RGB parade, YUV parade, histogram and audio levels with acoustic phase. SmartScope Duo 4K displays are independent, giving you the flexibility to choose between scopes and the image.

Precision Monitoring
SmartView monitors are ideal for monitoring high end broadcast productions, with high quality filtering and scaling that preserves every detail of the image. The unique digital design and SDI inputs ensure accurate, easily manageable color across all your displays. SmartView's Ethernet port lets you connect to your network of choice, and centrally control all your monitors from a single computer using the SmartView software utility. SmartView also features tally, fully compatible with many switchers and automation systems.

Accurate Waveform Monitoring
Choose SmartScope Duo 4K for accurate waveform monitoring. You can view two independent sources at the same time and switch between images and waveforms as needed. You can select between waveform, vectorscope, RGB or YUV parade, histogram and phase with audio levels for accurate broadcast quality monitoring that shows all the technical information about your image and signals. With SmartScope Duo 4K, you no longer need expensive external scopes

SmartView is designed for broadcast and post production and supports a wide range of video standards including SD, HD and 3G-SDI. It supports new video standards used in post production such as progressive HD 1080 and even 2K over 3G-SDI. You can connect and switch between all formats at any time because SmartView automatically detects them in less than a second.
