VR-400UHD

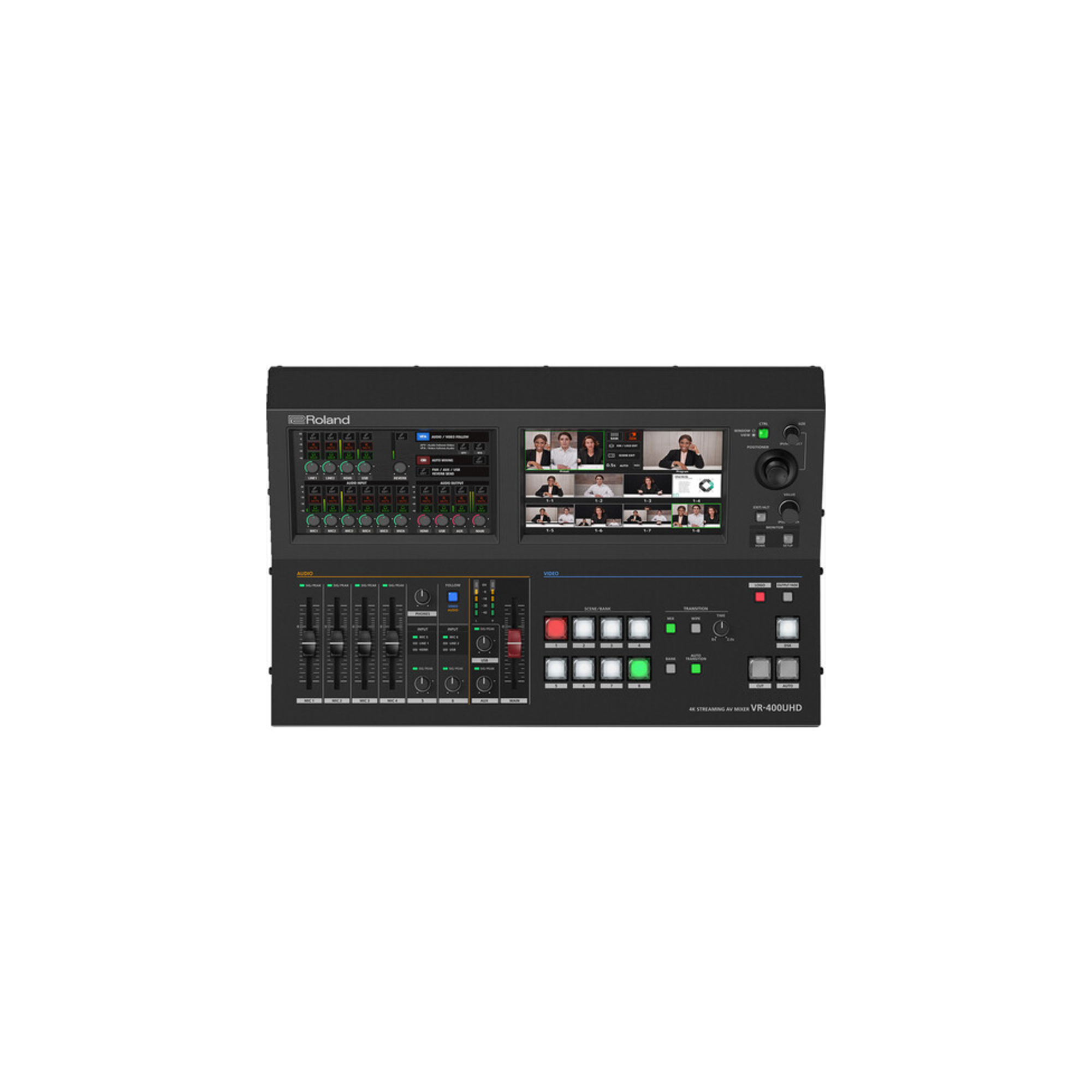

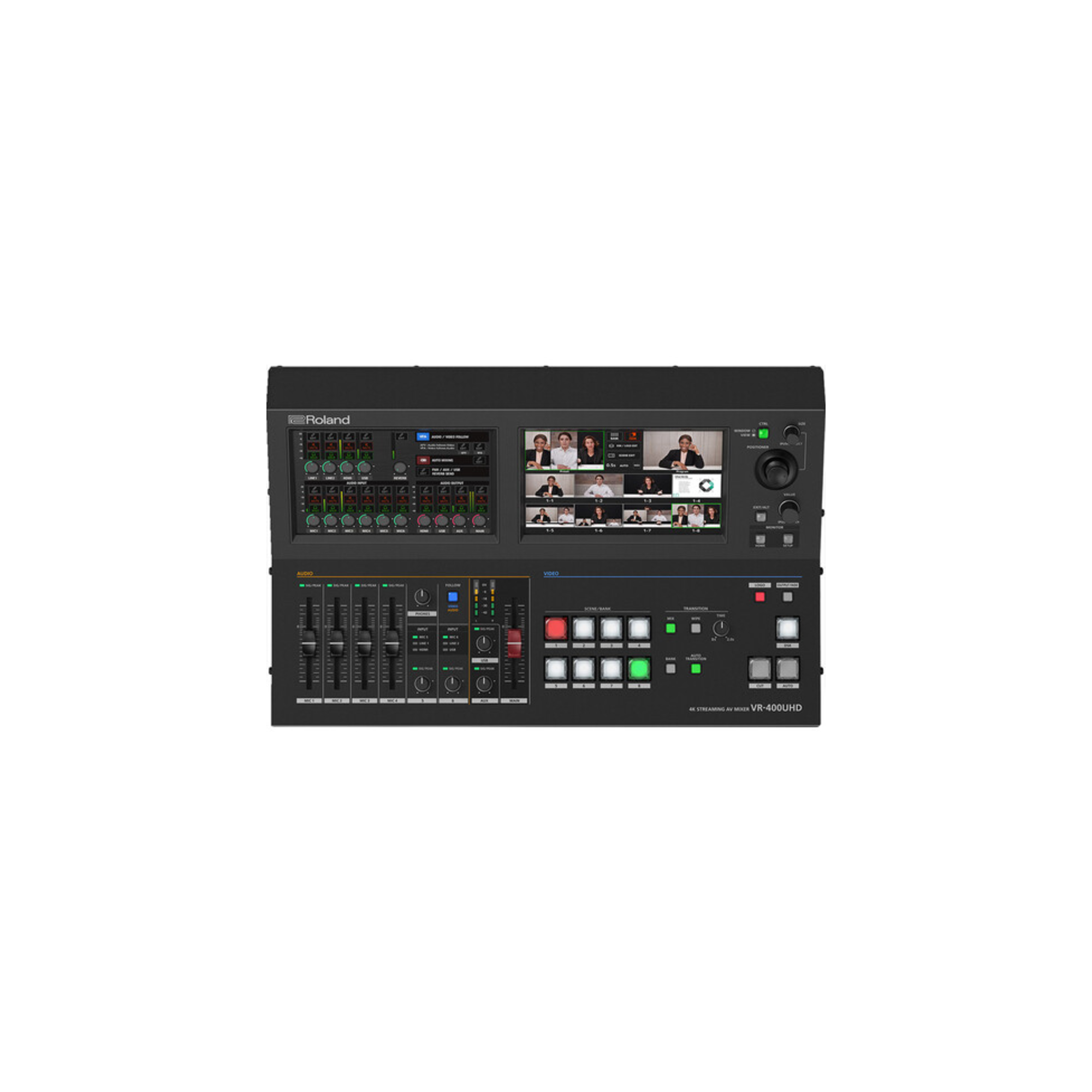

Roland VR-400UHD 4K Streaming AV Mixer 7x HDMI Inputs, 3x HDMI Outputs, 14-Channel Digital Audio Mixer - Black

° Intuitive 4K Workflow with Dual Touchscreens
The VR-400UHD is a powerful and intuitive solution for managing complex production tasks during in-person and livestreaming events.
Side-by-side touchscreens provide fast, direct control of your workflow in the heat of the moment, letting you monitor live video thumbnails, switch composite video scenes, access audio mixing and video routing functions, and much more. Versatile onboard AV connectivity provides the I/O you need to manage everyday production needs with one compact unit. And with full 4K HDMI and USB streaming support, you're always ready to deliver the highest video quality for your clients and audience.

° Touch and Go
Two seven-inch touchscreens make it simple to monitor video content and execute operations with quick touches.
In the default PGM/PST mode, you can monitor and select up to eight video scenes on the right screen and access various video switching and audio functions on the left.
Switching to Dual mode allows you to send video to both displays, which is ideal for events where you need to operate multiple presentation screens at once.

° Tactile Controls
The VR-400UHD panel also includes a large selection of tactile controls to complement the touch workflow.
The right side is filled with video controls, including dedicated scene/bank buttons and controls for transitions, keying, sizing, and more.
Prime audio functions are easily controlled on the left side via familiar hands-on faders and knobs.

° Present and Livestream in 4K
The VR-400UHD supports 4K/60fps - the standard for high-quality video - allowing you to connect 4K cameras and feed 4K displays and recorders.
HDR and SDR formats are also supported, with automatic conversion into your 4K workflow.
And with the USB-C webcam output* and integrated USB 3.2 Gen 2 support, you can simultaneously livestream to popular platforms on your computer.
*Supports SDR video up to 4K/30p only.

° Seven 4K HDMI Inputs
The VR-400UHD is equipped with seven HDMI inputs with up to 4K/60p resolution, and you can use up to four inputs at once to create video compositions.
Inputs 1-3 are always available, while cameras and other devices connected to the additional four inputs can be selected one at a time as needed.
All inputs feature built-in scalers, letting you freely mix 4K/HD, HDR/SDR, and Rec.2020/Rec.709 devices with no need to worry about format conversion.

° Two Touchscreen Modes
In PGM/PST mode, you can switch between scenes using transition effects such as cuts, dissolves, and wipes for a polished look.
Eight banks provide a total of 64 scenes, with eight scenes at a time displayed on the right touch display.
Using Dual mode, you can display PGM1 on the right screen and PGM2 on the left and assign them to HDMI and USB outputs.
* This is ideal for working with separate LED panels on the left and right sides of a stage, allowing you to monitor and control both at once.
*Only freeze cut transition effects are available in Dual mode

° Flexible HDMI Outputs
The VR-400UHD features two 4K HDMI outputs with support for downscaling to FHD, and you can assign PGM or PST to each independently.
There's also a dedicated HDMI HD output, which outputs the same image as the PGM/PST touchscreen at a fixed resolution of 720p.
This output is perfect for generating operation previews in larger-scale installations.

° 4K USB-C Livestreaming
The high-performance USB-C output is ready for all your livestreaming needs, with USB 3.2 Gen 2 support for streaming at resolutions up to 4K/30fps.
* The VR-400UHD is recognized as a standard webcam on your computer when connected—just select it as the video and audio sources in your preferred platform and start streaming.
The USB output features a dedicated logo function, allowing you to embed custom characters in the video during streams.
*4K livestreaming requires a USB 3.2 Gen 2 (10 Gbps) cable, a computer with USB 3.2 Gen 2 support, and network bandwidth that can support a 4K data stream.
When using a USB 3.0 or 3.2 Gen 1 cable, the maximum output format is 1080p/60fps.
