FLEXTALLY BP
Cerevo
An easy to set-up all-in-one tally lamp system

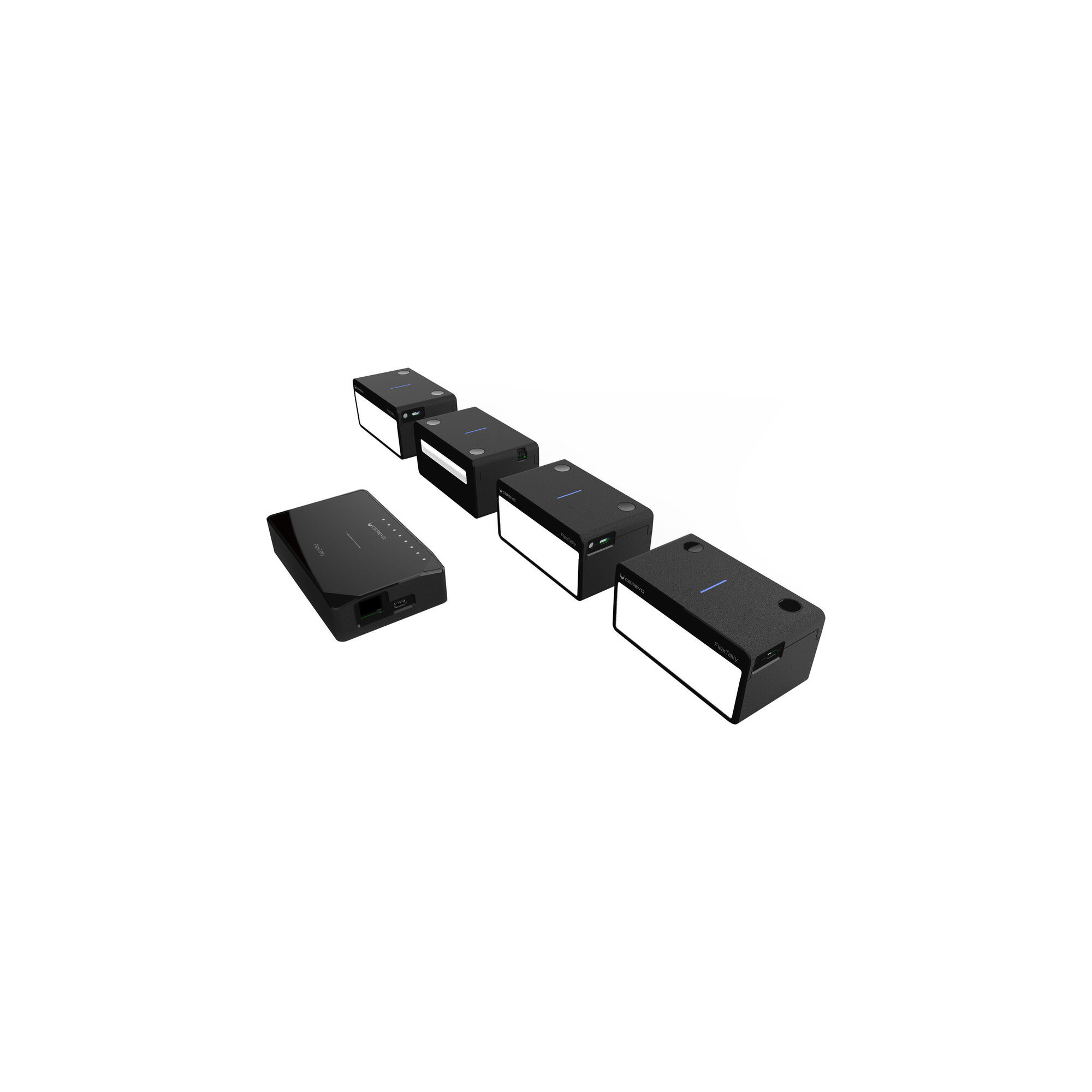

FlexTally consists of a station unit that connects to LiveWedge and four lamp units that are attached to each camera. Each lamp illuminates automatically according to the LiveWedge switching operation. The 6 hour battery life of each lamp unit eliminate the need for multiple power cables.
FlexTally is compatible with other brands' switchers, as well as Cerevo's own LiveWedge switcher.
Blackmagic and Newtek switchers are now supported!
It supports also: Roland V-1SDI, Roland V,1HD and Lumantelk Ez-Pro Vs4(to connect Flextally to these products the USB-GPIO Converter Flextally interface and follow the instructions to set the dip switches both on the mai unit and the lamps.
The wireless connection uses the 433 MHz band, which is resistant to obstacles and interference from other wireless signals, to achieve a communication distance of 100 m or more (*2), and the connections can also be daisy-chained using terminals. FlexTally can be used with cables of several hundred meters in length without any problems.
A 6-hour battery is built into each lamp unit, so each can operate completely wirelessly. The wired connections use a standard 2-pin cable, with terminal connectors for easy integration and compatibility.
The brightness level of the TALLY lamps can be set to 4 different levels.
Download the managing software: FlexTally Utility
FLEXTALLY additional lamp
FLEXTALLY Cover for Lamps
SR 2059
LiveShell.X
Wireless Connectivity : 433MHz (US/EU)
Wired Connectivity : RS-485 serial connection
Wireless Connection Distance : Approx. 100m (line-of-sight)
Battery Operating Time : Lamp unit: 6-12 hours (will vary depending on the lamp brightness and usage environment)
Battery Charging Time - Lamp unit : Approx. 2 hours
Number of Lamps Supported : 16 units
1: To connect with your video switchers, you need to set up using dedicated software provided by Cerevo or a specifically configured cable for GPIO connection. The cable should be created based on the tally output specifications of the video switcher you are using and the FlexTally''s tally input specifications. Specifications of the tally output may be different for each brand and switcher model. Supported OS for the dedicated software is Windows 10/8.1/7, Mac OS X is scheduled to be supported in the future.
2: Actual distance varies depending on the environment.
3: Specification for the US/EU product version. The version for Japan uses the 315MHz band for connectivity.
4: Up to 32 lamps will be supported in a future firmware update. 8 lamps can be controlled when connected via GPIO connection with your switchers.
Dimensions : Station unit: W128 x D77 x H28 mm / Lamp unit: W100 x D60 x H50 mm
Weight : Station unit 142g / Lamp unit 164g
1x Base unit
4x Camera unit - tally remote with led
1x Dedicated bag
1x FlexTally Hardcover Number set
