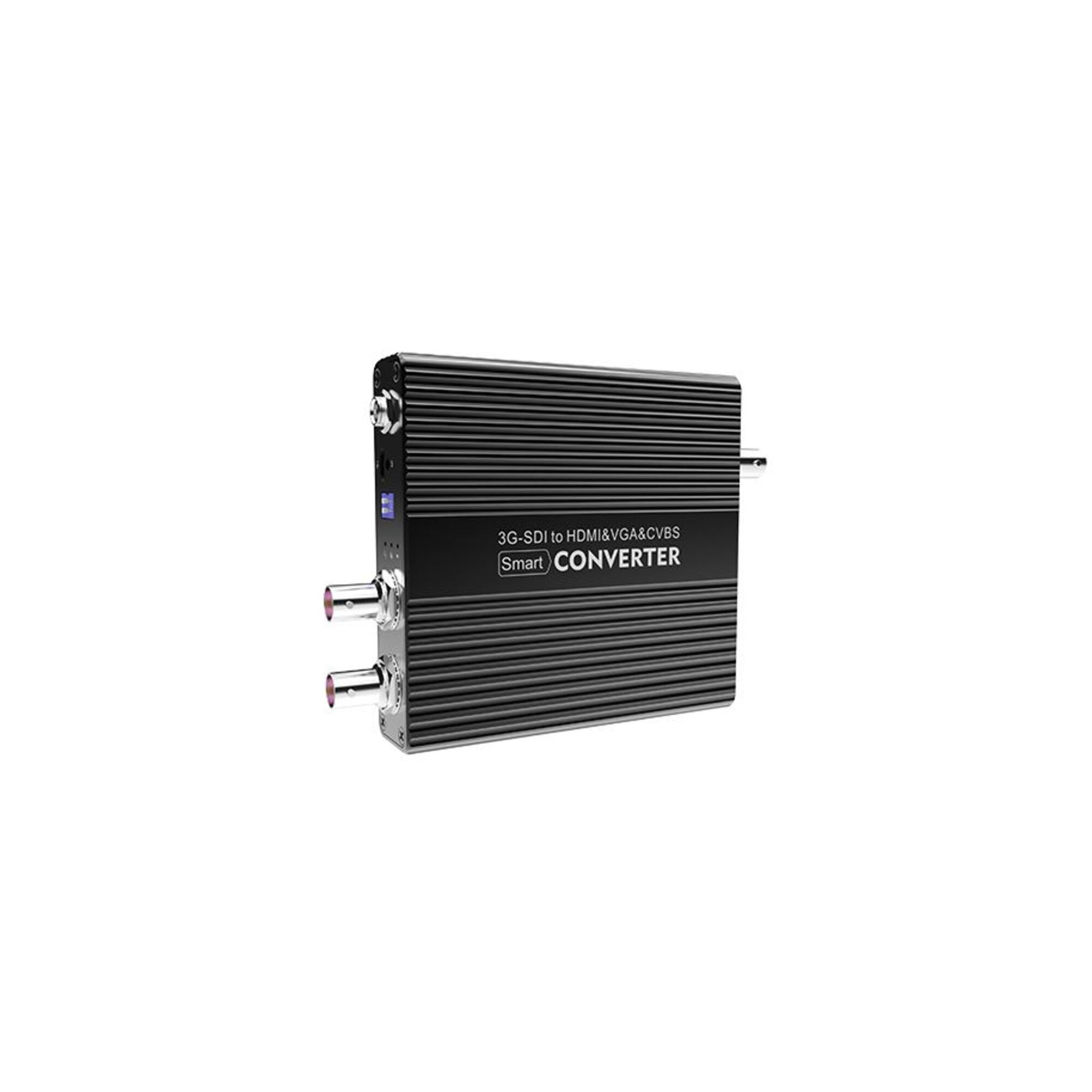

KV-CV180

Kiloview KV-CV180 is a broadcast level multifunctional video converter which can convert SDI to HDMI, VGA and AV(CVBS) with functions of frame conversion, resolution conversion, image scale up/ down, color conditioning, image enhancement and adjustment, etc.

Application

Kiloview CV180 video converter is suitable for the applications that need to convert SDI to (HDMI/ VGA/ AV (CVBS)/ independent audio, etc.) such as broadcast, video teaching and training, HD video information release, HD video long-distance transmission, video conferencing, multimedia advertising and video security monitoring etc..

Main Features

SD/ HD /3G SDI to HDMI/ VGA /AV( CVBS)
High compatibility
Frame/ resolution conversion
Remote control
Web configuration management
7*24h continuous working

High compatibility, wide application.

SD/HD/3G SDI input together with built-in SDI clock recovery circuit and line equalizer, it can recover attenuation and distortion SDI signal after long-distance transmission.
HDMI/VGA/AV(CVBS) output simultaneously supported with self-defined resolution, independent audio output available.
HDMI/ VGA DDC function supported, it can self-adaptively output the best mode of HDMI/ VGA.
OSD menu operation interface supported.

High quality image conversion and image enhancement processing, it can make sure the image quality to broadcasting level.

10bit YUV4:2:2 conversion, it can keep the color without distortion.
Professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.

High quality, 7*24h continuous working mode.

High quality capacitors, PCB board, interfaces adopted which ensured the stability of the device, making 7*24h continuous working available.
EMC and HDMI test passed, products have high compatibility and reliability.
Blue screen display while signal loss.
