KMU-200
Datavideo
- -2.5%
€ 4.049,90 VAT excl.
€ 4.465,27Another great feature of the new KMU-200 is the ability to work as both a horizontal video switcher and as a vertical video switcher. Horizontal video is the current norm, but vertical video content is growing in popularity due to smart phones where most content is consumed in portrait mode. The KMU-200 will allow you to push your vertical video productions to new limits.
4K cameras are widely available and content online doesn't require the full 4K resolution for streamed content. A single 4K camera can be utilized to obtain 4 cut outs or regions of interest. The KMU-200 is perfect for interview application with small panels or smaller houses of worship. With Social distancing becoming commonplace, the KMU-200 reduces the amount of cameras needed to get your production streamed live.

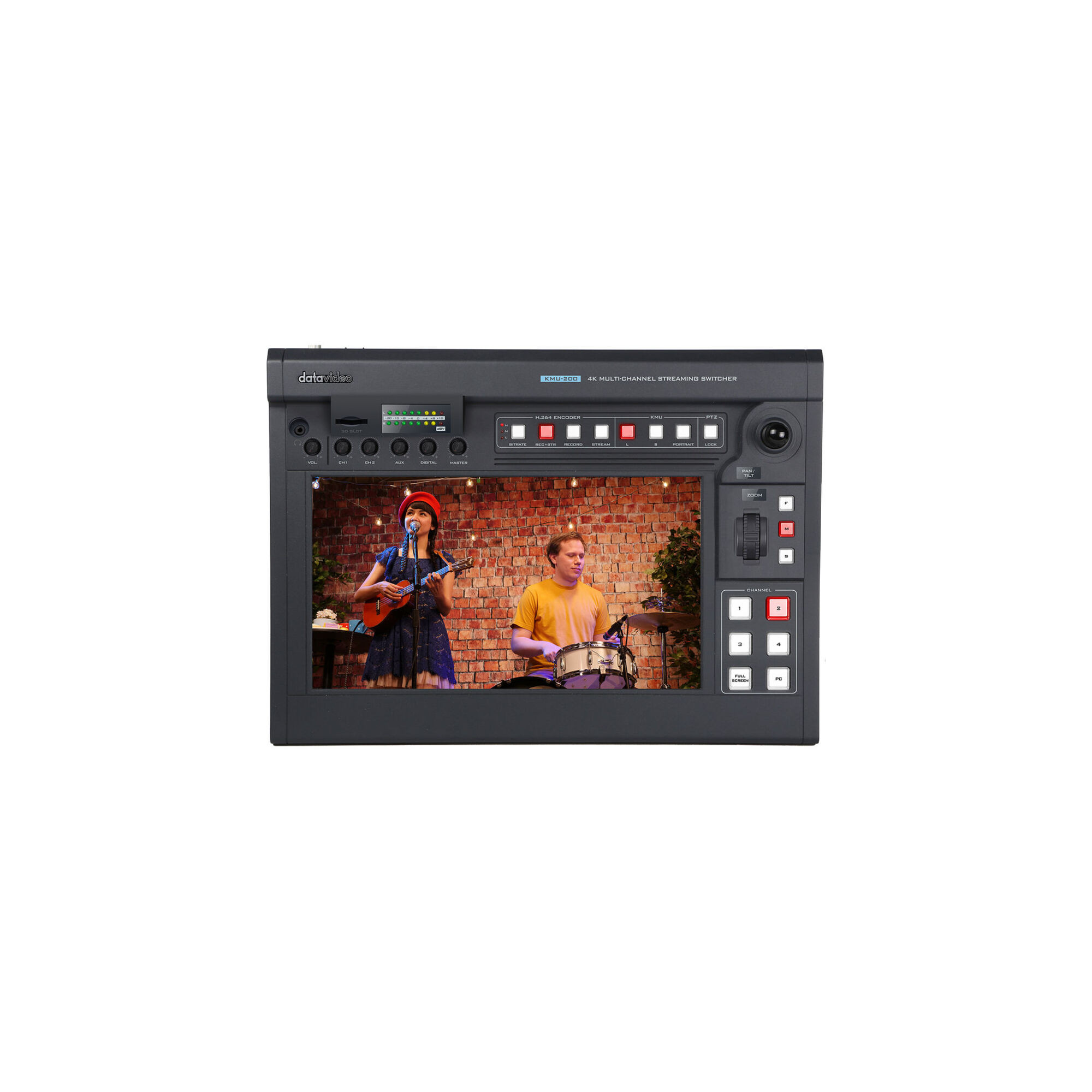

Touch Screen operation for simplified tasks and tactile buttons are provide for switching. The 14-inch touch screen allows gesture control over the live content. The joystick and backlit buttons allow for more traditional control over the KMU-200's screen selections.
The six channel buttons incorporated into the lower right corner allow easy access to each region of interest, including two allocated for full screen mode and computer output.
The additional HDMI input allows the option to show an additional camera angle or to connect a computer's display-output to the KMU-200 for presentation software.
The HDMI loop out allows for production directors to have direct monitoring of the presentation input. All HDMI inputs have built-in strain relief bars to make sure nothing is left to chance during your production, by reducing the chances of cables becoming unplugged
The internal audio mixer supports four audio channels and embedded audio sources
The built-in H.264 encoder can instantly stream live to get your content online.
The KMU-200 has a built-in encoder enabling it to stream to any compatible CDN in traditional 16x9 format or 9x16 portrait mode.
Video Standard
UHD & HD
Input:
3840x2160p 23.98/24/25/29.97/30/50/59.94/60
1080p 50/59.94/60
Output:
1080p 50/59.94/60
720p 50/59.94/60
Video Processing
4:4:4 / 4:2:2 / 4:2:0
Video Input
1x HDMI 2.0
1x HDMI 1.4 with Loop through
Video Output
2x HDMI 1.4
Support Video Output Resolution
1920 x 1080p 50/59.94/60
1280 x 720p 50/59.94/60
Multiview Out N/A
Multiview Mode N/A
Streaming Encode
H.264/AVC, Main/High Profile
Streaming Video Bitrate
Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60), dual stream
Record+Stream: 36Mbps (1080p50/60)
Streaming Audio Mode
Stereo/Mono
Streaming Audio Bitrate
Stereo: 64~384Kbps
Mono: 32~192Kbps
Streaming Protocols
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Network Interface
1x RJ45 (10/100Mbps Ethernet)
Recording Storage Medium
SD Card
Recording Storage File System
MP4
Built-in Audio Mixer
Yes, 4 channels
Audio Input
2x XLR(Mic)
2x RCA
Audio Output
2x Unbalanced RCA
Preview Display
14" Capacitive Touch LCD
Power Supply
DC 12V, 52W
Operating Temp. Range
0~40 °C
General
Dimension (LxWxH) : 438 x 331 x 114 mm
Weight : 4.3 kg
