V-80HD

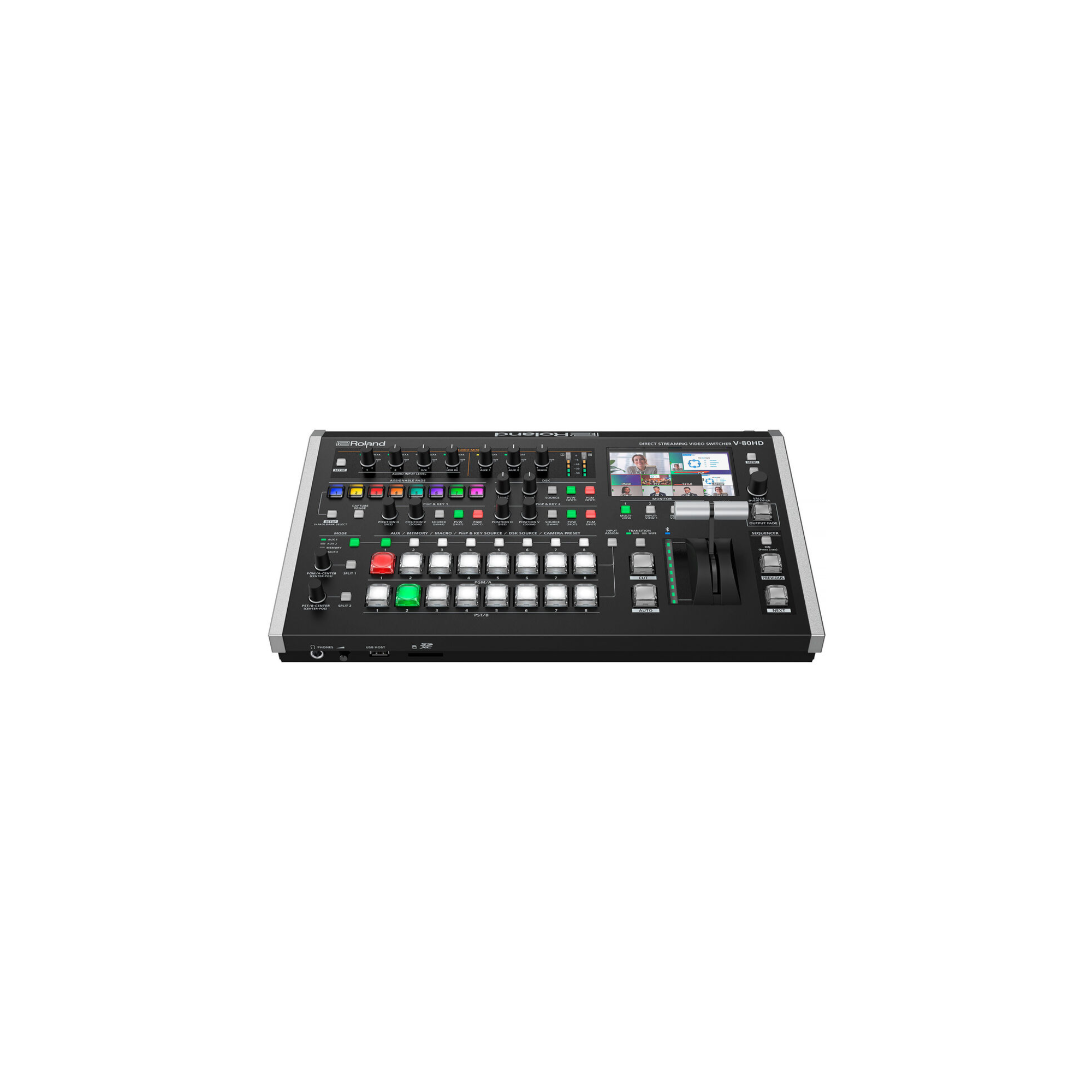

Roland V-80HD Direct Streaming Video Switcher, 4x HDMI and 4x SDI Inputs, Supports up to 1080p60 Video, 28-Channel Digital Audio Mixer

The Roland V-80HD Direct Streaming Video Switcher offers a flexible I/O interface with multi-channel audio mixing and effects for professional video production applications such as livestreaming, studio productions, and in-person events.
Four HDMI inputs—two equipped with downscalers, which take UHD 4K signals and turn them into HD video—and four SDI inputs with frame rate converters connect to various video sources.
These sources are then output to three HDMI and two SDI output ports, sent out via Direct Stream connection over LAN, or via USB stream with the USB-C port. Onboard LED color buttons, a T-bar, and an LCD screen make switching between sources intuitive and easy.

Comprehensive I/O Interface
HDMI and SDI ports on the V-80HD form a versatile interface compatible with A/V devices and high-end cameras.
Eight total channels are available on the switcher for up to four HDMI and four SDI input sources.
Two of the HDMI inputs are equipped with UHD 4K downscalers, allowing you to send parallel connections to other consoles.
An SRT input can be assigned to a cross-point button in tandem with an SDI and an HDMI input.
Multiple assignable outputs—SDI, HDMI, USB-C, and LAN—create a high-end video matrix.
Each output can be assigned to 10 buses and feed program displays, auxiliary monitors, multiview producer displays, and online audiences simultaneously.

Video Effects Engine, Professional Graphics
The V-80HD has an onboard effects engine with five composition layers, including split-screen, two Picture-in-Picture windows, and one DSK with fill/key composite support.
Manage the layers individually on the Program, Sub-Program, and two Aux outputs.
Graphics Presenter software for Windows OS can create titles and graphics without requiring third-party solutions.
One HDMI connection can send fill and key signals from your Windows computer to the switcher.

Plug-and-Play Streaming
Use the USB-C port to output your video directly to a computer or smartphone for direct streaming to Zoom, Microsoft Teams, or other UVC platforms.
An RJ45 LAN port supports direct streaming to YouTube, Facebook Live, Twitch, or other RTMP platforms without requiring a computer.

SD Card Slot for Onboard Recording
Insert an SD card into the slot on the front of the V-80HD to record H.264 MP4 files.
Stereo WAV audio can also be recorded independently for use in podcasts.
Capture still images to internal memory from any output bus and save them to the card for future use.

PTZ Camera Support
Built-in PTZ control on the V-80HD supports select Canon, LVC, Panasonic, Sony, PTZOptics, Avonic, and other VISCA-compatible LAN cameras.
You can operate up to 16 PTZ cameras simultaneously and can even use the Remote iPad app in tandem for further control and video monitoring.

Audio Mixing and Effects
Combo XLR-1/4" audio inputs with +48V phantom power integrate audio sources with embedded audio for up to 28 channels of audio mixing.
A wide selection of processing tools, I/O routing options, and automation features are included in the V-80HD's interface.
Enhance sounds with high-quality vocal processing and gain function to manage audio levels. An onboard audio player integrated music and sound effects.
Three output buses route audio for streaming and studio recording applications.

Customizable Control Pads
Eight user-assignable pads provide quick control over the V-80HD.
The pads are divided into eight banks for direct access to 64 different operations.
Call up scenes, macros, and sequencer steps, trigger audio and video clips, and start/stop streams, among other functions.
You can even control the Graphics Presenter software when your host computer is connected to the unit.

Remote Control Options
- V-80HD Remote app for iPad supports connectivity via Bluetooth 5.0
- V80-HD Remote Control Software operates switcher from macOS or Windows computer
- Connect a USB keypad to control transitions and other functions
- Connect footswitches or expression pedals
- Trigger start/stop on select third-party controllers via HDMI
- Integrate with other systems via RS-232 and Tally/GPI D-Sub connectors
