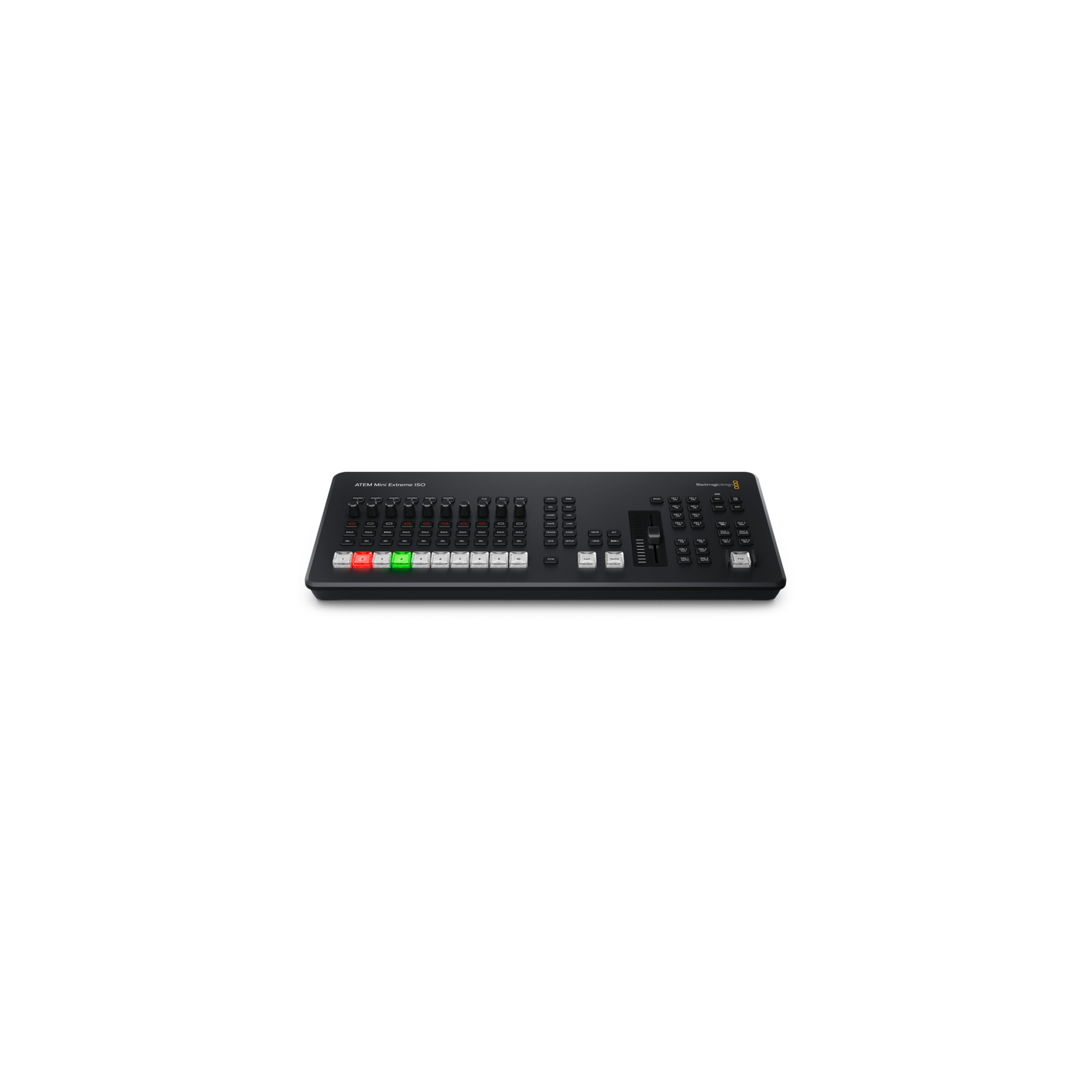

ATEM Mini Extreme ISO G2

Name: ATEM Mini Extreme ISO G2
Brand: Blackmagic
SKU: ATEM Mini Extreme ISO G2
Price: 4145191 NGN
Availability: OutOfStock

Blackmagic

EAN: 9338716009965

8-Input HDMI Switcher, Built-In Streaming Engine, USB Webcam Output

go to the technical sheet

₦ 4,145,191.00

₦ 3,855,991.43 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Blackmagic 8 HDMI input switcher with built in multi view streaming engine, Thunderbolt for recording and playback, USB webcam out, DVE, chroma key, media player and ISO recording for each of the 8 video inputs

ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube, business presentations using Zoom or Teams.
You can switch between up to 8 camera inputs with much better image quality, plus the built in DVE gives you picture in picture for commentary.
ATEM Mini includes a huge range of video effects and amazing broadcast features for high end work, plus support for SRT streaming for the lowest latency and secure transmission.
You can even sync recordings to the Blackmagic Cloud so you can edit live productions in DaVinci Resolve from anywhere!

Faster Video Production and Live Streaming
Live production is the fastest way to get your program done and then share it live to YouTube with the world.
ATEM Mini features a hardware streaming engine that supports RTMP and SRT protocols so you can go live to all major platforms, without the need for separate streaming software!
Depending on the model, ATEM Mini has up to 8 HDMI inputs so you can switch between different camera angles, such as medium shots and close-ups.
You can even use the HDMI connection to connect a computer to show PowerPoint slides, websites, or a video game console.
It's a true mini broadcast studio!

All in One Broadcast Quality Switcher
ATEM Mini's compact all in one design features a front panel control panel as well as connections on the rear panel.
The front panel features dedicated buttons for selecting sources, video effects and transitions. The source buttons are large so they're easy to feel, so the presenter can switch between them directly!
There are even buttons for mixing audio and for recording and managing streaming, and for selecting the camera, program or multiview on the video output.
On the back there are HDMI connections for cameras, computers and game consoles, additional microphone inputs, a USB webcam output and an HDMI aux output for the program video.

Connect eight cameras
With 4 or 8 HDMI inputs depending on the model, you can connect as many cameras as you want to show.
Camcorders with HDMI outputs are better than simple webcams because they use high-quality lenses and offer greater sensitivity in low light.
The switcher re-syncs sources that have different video standards than its own, so you can connect any device without worrying about whether it will work!
Plus, HDMI cameras often support interchangeable lenses, ideal for switching between wide angle and zoom models for close-ups.
Imagine using cameras with excellent light response for theater productions, weddings, school concerts or music videos!

HDMI Video or USB Webcam
For maximum compatibility, all ATEM Mini models feature a USB connection that works like a webcam.
This means you can plug in a computer and work with any video software!
The software will detect ATEM Mini as a webcam, even though it is a live production switcher.
That means you get full compatibility with any video software, plus full 1080 HD quality.

Now you can reinvent your presentations in software like Zoom or Microsoft Teams with professional, broadcast quality multi-camera production!
The ATEM Mini webcam output also works with streaming software such as Open Broadcaster and XSplit Broadcaster.

Live via Ethernet
With a built in hardware streaming engine and simple ethernet connection, ATEM Mini lets you go live live to YouTube, Facebook and Twitch without the need for a computer. You can stream high quality content to YouTube, Facebook and Twitch with no dropped frames and with easy setup.
Simply select the streaming service you want, enter the code and you're done!
ATEM Software Control provides setup menus and streaming status on the multiview.
Data rate displays the required internet speed based on the video format being used.
With the right technical knowledge you can also edit streaming settings in an XML file to add additional services.

Connections
Video Inputs: 9
Outputs: 4
AUX Outputs: 4
SDI Transmission: 1.5G, 3G
HDMI Video Inputs:
- 8 x HDMI Type A, HD 10-bit switchable
- 2 channels of embedded audio
HDMI Video Outputs: 3
HDMI Program Outputs: 3
Audio Inputs:
- 2 x XLR Combo with phantom power
- 1 x BNC MADI digital audio 32 channels
Audio Outputs: 1 x 6.35mm headphone jack
Timecode Connections: No
Reference Input: No
Source Resync: For all 8 HDMI inputs and remote sources
Frame Rate and Format Converters: For all 8 HDMI inputs and remote sources
Webcam Output: 2 x USB-C at 720p or 1080p in the frame rate of the PGM
Multiview:
- 1 x HDMI
- 1 x webcam
Control panel connection: Ethernet. Connection between panel and chassis directly or via network
Internal timecode generator: Yes
Tally output: On Blackmagic remote cameras with HDMI
Ethernet:
- 1 x 1G Ethernet for standard streaming, control panels and internet connection
- 1 x 10G Ethernet connection for recording
Computer interface:
- 2 x USB Type-C 3.1 Gen 1 for recording to external media, webcam out, software control, software updates and connection to panels
- 1 x Thunderbolt for fill and key video out, video in, ethernet connection for storage and power

Standard
Standard HD video input:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Output HD video standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Streaming video standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video sampling: 4:2:2 YUV
Color accuracy: 10 bit
Color space: Rec.709
HDMI computer input resolutions:
1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz
Color space conversion: Real-time hardware conversion

General
Effect banks: 1
Direct crosspoints: 10
Crosspoint buttons: NKK buttons
Transaction preview: 1
Source select bus: Configuration with multi-function controls and Fairlight audio status output
Macro buttons: 6
Switch buttons Transitions: Setup with multifunction controls and Fairlight audio status output
Transition Durations: Setup with multifunction controls and Fairlight audio status output
Keys Buttons: 8
Aux Buttons: 6
Transition Lever: 1
Record Buttons: 2
Streaming Buttons: 2
DSK Transition Selectors: 6
FTB Buttons: 1 NKK Button
Upright Keyers: 4
Upright Keyers: 2
Advanced Chroma Keyers: Up to 4
Super Source: 1
DVEs: 2
Linear/Luminance Keyers: Up to 4
Transition Keyers (Stinger/DVE): DVE only
Color Generators: 2
Control Panel: Setup with multifunction controls and Fairlight audio status output
Assignable Boxes: 16
Tally: Red for Program, Green for preview

Audio
Mixer:
26 inputs x 2 channels
(8 HDMI+16MADI+XLR+Thunderbolt)
On/Off/Audio Follow Video selectable on each channel, gain control on each channel.
Level and peak monitoring. Fairlight audio features: compressor, gate, limiter, 6-band parametric EQ. Master gain control
Analog input: Balanced stereo XLR combo connectors
Analog input delay: 8 frames max
Mic power: +48V phantom power on XLR combo inputs

Recording
Direct recording:
- CFExpress slot for recording
- Network recording
- USB-C recording
Video recording:
- 8 x HDMI inputs in .mp4 H.264 files at 70Mb/s max quality with ATEM video standard and AAC audio.
- 1 x Program Output to H.264 .mp4 file with Streaming quality setting, ATEM video standard and AAC audio
Audio Recording:
24-bit 48KHz .wav files from each of the 26 2-channel audio inputs (1 2-channel analog audio input, 8 2-channel inputs with embedded audio and 32 channels of MADI audio).
Switching: The mixed program is recorded to DaVinci Resolve .drp project files
Formatting: ExFAT (Windows/Mac) APFS or HFS+ (Mac)

Multiview
Monitoring: 16, 13, 10, 7 or 4 selectable program and preview views, 8 HDMI inputs, SuperSource, clean feed, media player, streaming status, recording status and audio meters
Multiview Video Standard: HD
