PXW-FX9V FX9
Sony
₦ 20,906,799.00 VAT excl.
6K Full-Frame Exmor R CMOS Sensor
15 Stops of Dynamic Range, Dynamic HDR
DCI 4K and UHD 4K up to 59.94p
HD Recording up to 150/180 fps
Sony E-Mount
10-Bit 4:2:2 XAVC-I up to 600 Mb/s
Auto-HD, AF, 7-Stop ND Filter, 3D LUTs
Dual Base ISO up to 102,400, HLG Mode
Dual XQD Card Slots, 2K Imager Scan Mode
12G/6G/3G-SDI & HDMI Output up to 4K
In the Box

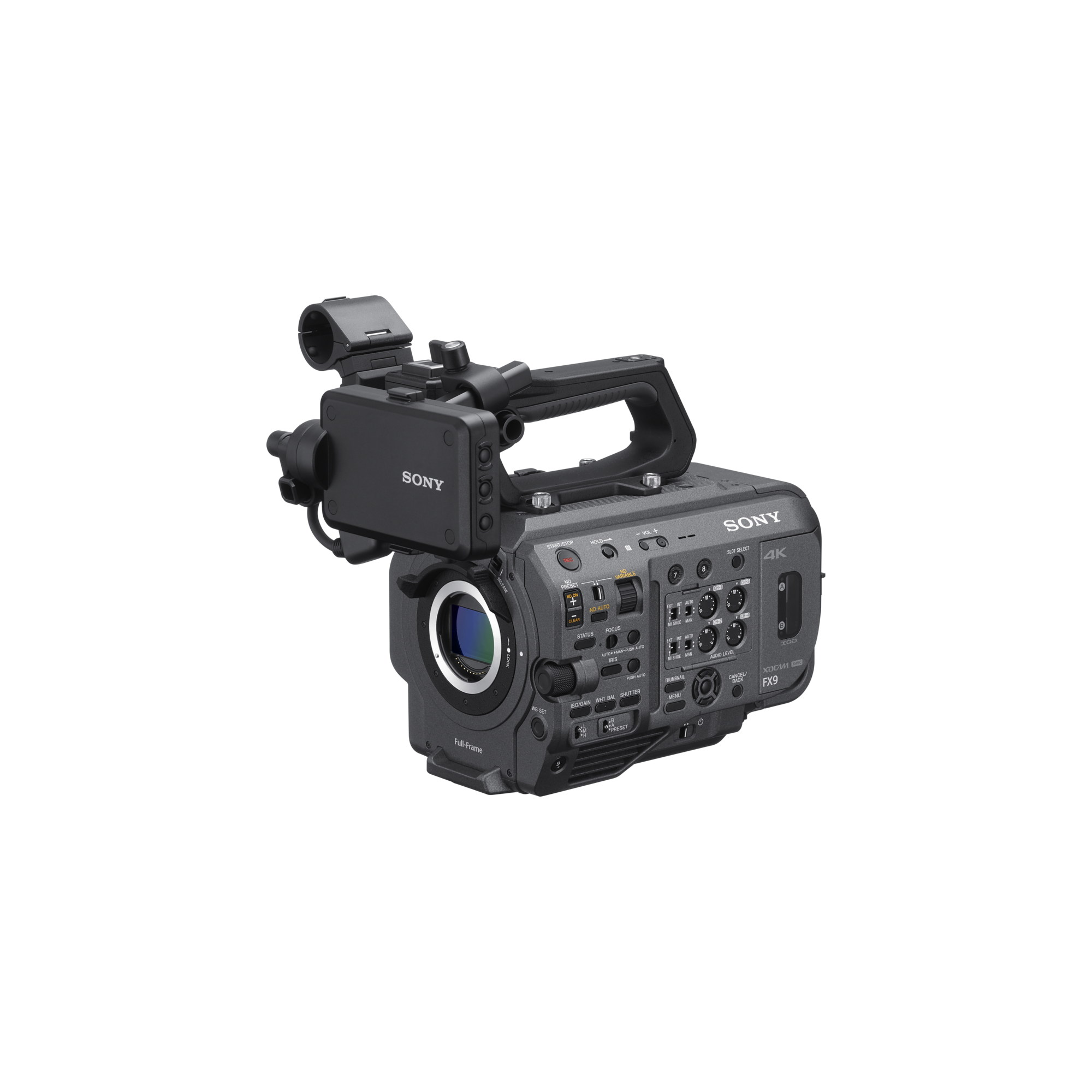

Sony PXW-FX9 XDCAM 6K Full-Frame Camera System (Body Only)
Body Cap
Viewfinder
Eyepiece
BP-U35 Battery
Sony BC-U1A Battery Charger / AC Adapter for BP-U90, U60, U60T, U30
Grip Remote Control
AC Adapter
USB Cable
The PXW-FX9K input and output features include 12G-SDI and HDMI outputs for 4K, a 3G-SDI output for HD, and genlock and timecode when using a multicamera setup. The Fast Hybrid AF autofocus system allows for accurate focus and even allows facial detection to automatically detect human form with 561 points of detection. Advanced image stabilization is achieved using the PXW-FX9K's internal gyroscope for shots so smooth it'll look like you used a gimbal. Its 4-channel audio recording allows you to use external microphones and record ambient sound with the internal mics simultaneously.
The camera features a 15-stop dynamic range and records 10-bit 4:2:2 to dual XQD media card slots that support simultaneous and relay recording, as well as multiple backup recording modes that utilize proxy files. The camera can record DCI (4096 x 2160), UHD (3840 x 2160), and HD (1920 x 1080) internally at a selectable frame rate from 1 fps up to 60 fps in XAVC-I, XAVC-Long, and MPEG HD formats. And with a future firmware update, it will be able to record HD at up to 180 fps and output 16-bit raw 4K/2K footage up to 120 fps. In addition to its wide dynamic range, its enhanced color and light features include a dual base ISO of 800/4000, which is helpful when in low-light situations or using a slower lens. Its 7-stop electronic variable HD filter can perform in auto or manual mode, smoothly adjusting from 1/4 to 1/128 density. The camera's default S-Cinetone color look offers the same soft, vivid tone as with Sony's VENICE camera.
The FX9 includes an integrated Multi-Interface (MI) shoe and comes with a BP-U35 battery, BC-U1A battery charger, AC adapter with two power cords, body cap, viewfinder, eyepiece, remote control, and USB cable. The PXW-FX9K is also compatible with the separately available XDCA-FX9 extension unit which provides ENG shoulder-style support, networking features, and a slot for an optional wireless audio receiver.
The 2.0 firmware update provides:
The addition of DCI 4K video format when selecting FF 6K, FF crop 5K, or S35 4K Imager Scan modes
Support for user-created 3D LUTs
Raw video output via the optional XDCA-FX9 Extension Unit
High dynamic range (HDR) support via the addition of hybrid log gamma (HLG) modes
150 and 180 fps options for Slow and Quick Motion when Imager Scan mode is set to FF 2K
Expanded ISO/Gain range up to ISO 102,400 or 27 dB, respectively
Improvements to AF functionality
Support for changing some settings via the status screen
6G-SDI output up to 4K30p, audio function improvements
USB tethering support
Iris indicator now able to show T values with compatible lenses
Password security enhancements
Boost to image quality in S35 2K Imager Scan mode
WC 275900
FX9 Dual Micro Bracket G-Mount
LB-SU75
BP-U90 Blueshape
306-0212
LB-SU98
FX9 Dual Micro Bracket V-Mount
BP-U100
BP-U35
WC 276000
LB-SU90C
ES-T18-BTP2-V
18-300 mm f3.5-6.3 Di III AVC
24mm F2 DG DN - E-Mount
SEL-P28135G.SYX
SEL-35F28Z.AE
SEL-100400GM.SYX
SEL-24240.SYX
SEL-70200GM.SYX
SEL-70350G.SYX
85mm F1.4 A DG DN F E-Mount
SEL-85F18.SYX
SEL-40F25G
SEL-24F14GM.SYX
SEL-24105G.SYX
90mm f2.8 DG DN - E-mount
17-70mm F2.8 Di III-A VC RXD
SEL-1635Z.SYX
SEL-P1635G.SYX
SEL-P18110G.SYX
SYCAF24-NEX 24mm
20-40 mm F2.8 Di III VXD
35-150mm F2-2.8 Di III VXD
SEL-55210.AE
SEL-1635GM.SYX
50-400 mm f4.5-6.3
SEL-90M28G.SYX
SEL-35F18F.SYX
SEL-14TC.SYX
70-180mm F2.8 Di III VXD Sony
SEL-50F14Z.SYX
SEL-1655G.SYX
SEL-100F28GM.SYX
SEL-70300G.SYX
SEL-50F25G
SEL-135F18GM.SYX
20mm F2.8 Di III OSD M12
SYV75E
14-24mm F2.8 DG HSM AF NEX
SEL-600F40GM.SYX
SEL-16F28.AE
SEL-2860.SYX
14mm f4 FF RL Zero-D SONY E
SEL-85F14GM.SYX
SEL-2470Z.AE
SEL-C1635G.SYX
90mm f2.8 Ultra Macro Apo FE
24mm F2.8 Di III OSD M12
28-75 mm F2.8 DI III VXD G2
SEL-20TC.SYX
SEL-24F28G
SEL-28F20.SYX
16-28mm F2.8 DG DN C SONY E
SEL-70200G.AE
100mm f2.8 Ultra-Macro 21 E
SEL-2470GM2
SEL-2470GM.SYX
SEL-50F18F.SYX
SEL-55F18Z.AE
SEL-200600G.SYX
SEL-14F18GM.SYX
SYV73E
SEL-1224G.SYX
SEL-1224GM.SYX
SEL-50F18B.AE
SEL-50M28.SYX
SEL-400F28GM.SYX
SEL-70200G2.SYX
60-600mm F4.5-6.3 DG DN Sony E
Kit Aurogon FF 10-50x Sony E
SEL-1635GM2.SYX
70-200mm f2.8 OS Sport Sony E
SEL-1625G.SYX
500mm F5.6 DG DN Sony E
15mm 1.4 DG DN FISHEYE Sony E
ES-T18-AB
WC 275400
SR 2069
0255-7100
FX9BR
Z-VCT-P
0350-1161
Z-SX9-P2
0350-1700
303-3900-VL FX-9 base kit
WC 275500
FS7 Unified Accessory Kit PRO
FX9RH
Z-ZG-9T
SR 2932
WC 275800
ARMOR-MAN 3 ARM-T03
VCT-FS7
Z-FS79
Unified Baseplate - 222100
ES-T18-V-V2
WC 275300
0350-2207
SR 2837
Z-SX9-PDG
401-FX9
FX9TP
B15FX9
FX9RIP
MBSPMD-E-BM2 NEX-Minolta
MBSPLR-E-BM2 NEX-Leica R
MBOM-E-BM1 Olympus OM-NEX
MB-EF-E-BT6 T CINE NEX-EF
MBSPA-E-BM2 NEX to ALPHA
MC-11
MB SPEF-E-BT3 T CINE NEX-EF
MB-EF-E-BT5 NEX-EF MkV
E-Mount - PL Mount Pro 233400
MBSPNFG-E-BM2 NEX-Nikon G
MBNFG-E-BM1 NEX-Nikon G
MBSPPL-E-BT1 NEX-PL
MBSPFD-E-BM2 NEX-Canon FD
Lens Mount Adapter PL-E
MBPL-E-BT2
CP.3 7-Lens Set
15mm t2.1 Zero-D Sony NEX
18-35mm T2 Sony E-Mount
CN-E 50mm T1.3 FP X SUMIRE
CP.3 5-Lens Set
CN-E 135mm T2.2 FP X SUMIRE
CP.3 8-Lens Set
CN-E 20mm T1.5 FP X SUMIRE
SLR-MP50E
CN-E 35mm T1.5 FP X SUMIRE
CP.3 6-Lens Set
CN-E 85mm T1.3 FP X SUMIRE
CN-E 24mm T1.5 FP X SUMIRE
50-100mm T2 Sony E-Mount
CN-E 14mm T3.1 FP X SUMIRE
CP.3 4-Lens Set
CP.3 3-Lens Set - Zeiss
14mm T2.4 Athena E-Mount
25mm T1.9 Athena E-Mount
35mm T1.9 Athena E-Mount
50mm T1.9 Athena E-Mount
85mm T1.9 Athena E-Mount
Athena Prime Set E-Mount - Nisi
Cine 24mm T1.2 S35 E-Mount
Cine 35mm T1.2 S35 E-Mount
Cine 55mm T1.2 S35 E-Mount
Cooke SP3 25325075100mm FF
Nano Prime 100mm T1.5 - Sony E
Nano Prime 75mm T1.5 - Sony E
Nano Prime 50mm T1.5 - Sony E
Nano Prime 24mm T1.5 - Sony E
Nano Prime 18mm T1.5 - Sony E
MB-T04
MB-T06
MB-T12
450R2-ALLFFKIT
S-2041
Orca OR-10
Orca OR-12
NTG-2
MKH 416 P48 U3
NTG-3 Black
MKE-600
NTG-8
NTG-4
ECM-VG1
NTG-3
NTG-4 PLUS
Mars T1000
Focus 22 - HF2200
Focus 12 - HF1200
MVH612AH
Focus 18 - HF1800
LH5P II
Z-FIND-S79
BVM-HX310
OEYE-RED EVF
SONY CABLE for BM5
DT-E21L4
Z-M-AEMS7
Focus 12 KF12-3CS
MVK612TWINGC
MVK612TWINMA
Focus 8 KSDS08-C
MVK612CTALL
Focus 8 Sistema 3-St CF
Focus 18 KSDS18-C
MVK612TWINMC
Focus 12 KSDS12-C
Focus 12 KSDS12-A
Focus 8 KSDS08-A
MVK612TWINGA
RM-30BP
UWP-D26K21
UWP-D22K33
UWP-D26K33
UWP-D27K33
UWP-D21K33
UWP-D27K21PRO
UWP-D22K42
UWP-D21K21
UWP-D27K21
UWP-D21K42
UWP-D26K42
UWP-D22K21
UVC-02
ILCE-7M4KB.CEC Alpha a7IV
ILCE-7M4B.CEC - Alpha 7 IV
ILCE-7M4GBDI - 7IV SEL24105G
A5012168A
244MICRO-AR
244microKIT
244MICRO
MH492LCD-BH
HPRC2700 FX9
BC-U1A
PSP.FX9.5
PSP.FX9.2
DICARDEW2
PSP.FX9.3
PSP.FX9.1
DICARDEW1
PSP.FX9.4
PSP.CAM-HC
Video Assist 7 12G HDR
Video Assist 5 12G HDR
RONIN 2 PRO Combo
Ronin 2+Ready-Rig GS ProArm - Dji
MDR-75061
COSMO C1
UV-C BOXER
037306
Nucleus M - WLC-T03
CIAK STD
Top Plate Sony FX9 - 275100
MRW-G1.SYM
WC 276100
Boom A320 Zeppelin - Sennheiser
Boom A320 Zeppelin MKH-416 - Sennheiser
Boom AL300 Zeppelin NTG-3 - Rode
Boom AL300 Zeppelin - Rode
Boom A320 NTG-2 - Rode
Boom AL300 NTG-3 - Rode
Boom AL300 Zeppelin MKH-416 - Rode
Boom AL300 MKH 416 - Rode
Boom AL300 Zeppelin NTG-2 - Rode
Image Sensor
Image Sensor: Size 35.7 x 18.8 mm (Full-Frame)
Sensor Type : CMOS
Sensor Resolution Effective: 29.5Mpixel
ISO : 800 to 4000 (Native)
Gain : -3 to 18 dB
Advertised Dynamic Range : 15 Stops
Signal-to-Noise Ratio : 57 dB
Camera
Lens Mount: Sony E-Mount
Shutter Speed: 1/1 to 1/8000 sec
Built-In ND Filter : 4 to 128 Stop Electronic ND Filter
Built-In Microphone Type: Mono
Recording Media : 2 x XQD Card Slots - 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
Internal Recording
Recording Modes :
XAVC-I 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (240 to 600 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps (89 to 222 Mb/s)
1920 x 1080i at 50/59.94 fps (112 Mb/s)
XAVC-L 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 150 Mb/s)
1920 x 1080p at 25/29.97/50/59.94/100/120 fps (25 to 50 Mb/s)
1920 x 1080i at 50/59.94 fps (50 Mb/s)
MPEG HD422 4:2:2 10-Bit:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1920 x 1080i at 25/50/59.94 fps (50 Mb/s)
XAVC Proxy 4:2:0 10-Bit:
1920 x 1080p (9 Mb/s)
1280 x 720p (6 to 9 Mb/s)
640 x 360p (3 Mb/s)
Gamma Curve Sony S-Log 3
Audio Recording: XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
Proxy: 2-Channel AAC Audio
Interfaces
Video Connectors :
1 x BNC (12G-SDI) Output
1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output
Audio Connectors
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O
1 x BNC Genlock Data Input
1 x BNC Timecode Data Input/Output
1 x 2.5 mm LANC Control
1 x USB Micro-B USB 3.1 Gen 1 Data
Wireless Interfaces
2.4 GHz, 5 GHz Wi-Fi
EVF
EVF: Included
EVF: Display Type LCD
Screen Size: 3.5"
EVF Resolution : 2,760,000 Dots
Power
Battery Type : Sony BP-U Series
Power Connectors: 1 x Barrel (19.5 VDC) Input
Power Consumption : 35.2 W
Environmental
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
General
Accessory Mount:
1 x Multi-Interface Shoe
1 x 1/4"-20 Female
Dimensions : 5.75 x 5.61 x 9.02" / 146 x 142.5 x 229 mm (Without Protrusions)
Weight 4.4 lb / 2 kg
