RED KOMODO X STARTER PACK

RED KOMODO X STARTER PACK

RED

RED DIGITAL CINEMA KOMODO-X 6K Camera Starter Pack (V-Mount)
go to the technical sheet
€ 14.360,28

€ 13.358,40 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
RED DIGITAL CINEMA KOMODO-X 6K Camera Starter Pack (V-Mount)

RED further advances its KOMODO line with the release of the black KOMODO-X 6K, a digital cinema camera featuring faster frame rates, a redesigned S35 sensor, and an updated form including advanced video and audio interfaces.
With built-in Wi-Fi and a USB-C connector, the KOMODO-X provides a powerful platform for smooth professional capture, multicamera setups, and IP-based workflows, including live streaming.
The KOMODO-X will be complemented by pre-bundled packs and additional accessories such as RED Pro I/O V-Mount and Gold Mount Modules.

° Next-Gen KOMODO Sensor
While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science.
Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.

° Compact KOMODO Form
The KOMODO-X 6K camera melds select DSMC3 features with the notably ultracompact KOMODO form.
The KOMODO-X is compatible with the upcoming PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use and it has a built-in micro plate that enables the direct mounting use of Micro V-mount batteries without the need for an adapter.
It also incorporates a full-size, 6-pin 11-17VDC power input.

° Canon RF Mount
The KOMODO-X comes with a reinforced, locking Canon RF lens mount, offering RED's toolless lens-mount feature for compatibility with a wide range of lenses.
To use ARRI PL-mount lenses, use the KOMODO-X with the RED RF to PL adapter with electronic ND filter.

° Integrated LCD
When working in close quarters or in compact setups, users can preview their images and apply simplified controls via the integrated 2.9" LCD.
Pair the KOMODO-X with the daylight-viewable, high-resolution DSMC3 7" Touch LCD offers more precise monitoring and full control in a cable-free, decluttered form.

° Live Streaming and Expanded In/Out
The KOMODO-X's expanded interface includes:
12G-SDI video output up to 4K60p.
A USB-C port with Ethernet offload capabilities.
Built-in Wi-Fi for 1080p IP live streaming for web applications and in-app monitoring.

° CFexpress Type B
The KOMODO-X has a single media slot for use with a high-capacity, fast CFexpress type B card.
Record up to 17 hours using a 4TB CFexpress type B card.
Offload data up to 3x faster than CFast media.

RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
Imaging
Lens Mount: Canon RF
Lens Communication: Yes, with Autofocus Support
Sensor Resolution: Effective: 19.9 Megapixel (6144 x 3240)
Image Sensor: 27.03 x 14.26 mm (Super35) CMOS
Image Stabilization: None
Built-In ND Filter: None
Capture Type: Stills & Video

Exposure Control
Shutter: Type Electronic Global Shutter
Advertised Dynamic Range : 16.5 Stops

Video Capture
Internal Recording Modes:
° ProRes 4444XQ 4:4:4
4096 x 2160 up to 60.00 fps [560 MB/s]
ProRes 4444 4:4:4
4096 x 2160 up to 80 fps [560 MB/s]
° ProRes 422/ProRes 422 HQ/ProRes 422LT
4096 x 2160 up to 120 fps [560 MB/s]
° REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ
6144 x 3240 up to 80 fps [560 Mb/s]
5120 x 2700 up to 96 fps [560 Mb/s]
4096 x 2160 up to 120 fps [560 Mb/s]
2048 x 1080 up to 240 fps [560 Mb/s]
External Recording Modes:
4:2:2 via SDI/BNC
DCI 4K (4096 x 2160) up to 60.00 fps
DCI 2K (2048 x 1080p) up to 60.00 fps
Fast-/Slow-Motion Support: Yes
Built-In Microphone Type: Stereo
Audio Recording: 2-Channel 24-Bit 48 kHz
IP Streaming:
MJPEG
1920 x 1080 (5000.00 Mb/s)

Interface
Media/Memory Card Slot:
° Single Slot: CFexpress Type B (CFexpress 2.0)
Video I/O: 1 x BNC (12G-SDI) Output
Audio I/O: 1 x LEMO 5-Pin Line Input on Camera Body
Power I/O: 1 x LEMO 6-Pin (11 to 17VDC) Input
Other I/O:
° 1 x 9-Pin (Genlock, GPI, Timecode)
° 1 x USB-C (Camera Interface) Control/Data/Video Input/Output
° 1 x RED Cable-Free Monitor Connection Output
Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control
Mobile App Compatible:
Yes: Android & iOS
App Name: RED Control
Functionality: Remote Control
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.): None

Monitor
Size: 2.9"
Resolution: 1440 x 1440
Display Type: Fixed Touchscreen LCD

General
Battery Type: V-Mount
Tripod Mounting Thread:
° 1/4"-20 Female (Bottom)
° 3/8"-16 Female (Bottom)
Accessory Mount:
° 4 x 1/4"-20 Female
° 4 x M4
Material of Construction: Aluminum
Dimensions: 5.09 x 3.99 x 3.75" / 129.37 x 101.26 x 95.26 mm
Weight: 2.62 lb / 1.19 kg (Body Only)

RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
Quantity: 1
Card Type: CFexpress Type B
Storage Capacity: 1 TB
Bus Type: PCI-Express 3.0
Read Speed:
° Maximum: 1785 MB/s
° Sustained: 1785 MB/s
Write Speed:
° Maximum: 1550 MB/s
° Sustained: 1300 MB/s
Operating Temperature: 14 to 158°F / -10 to 70°C
Storage Temperature: -4 to 185°F / -20 to 85°C
Certifications:
RoHS, CE, UKCA, REACH, Kcc, RCM
*as per Manufacturer

RED DIGITAL CINEMA CFexpress Card Reader
Performance
Media Card Reader:
° 1 x CFexpress Type B (CFexpress 2.0 / PCIe 3.0 x4)
System Connection: USB Type-C Male [USB 3.2 Gen 2x2 (20 Gb/s)]
Power Source: USB Bus Power

General
Dimensions: 3.7 x 2.6 x 0.5" / 95 x 65 x 12 mm
Weight: 4.2 oz / 120 g

RED DIGITAL CINEMA REDVOLT NANO-V 49Wh Battery for KOMODO-X (V-Mount)
Mount / Series Type: REDVOLT
Chemistry: Lithium-Ion
Battery Capacity: 49 Wh
Output Voltage: 14.4 VDC
Maximum Load: 6 A (Peak)
Operating Temperature: 50 to 113°F / 10 to 45°C
Charging Temperature: 32 to 113°F / 0 to 45°C
Discharging Temperature: 68 to 122°F / 20 to 50°C
Environmental Protection: None
Dimensions: 3.5 x 2.6 x 1.7" / 88 x 66 x 44 mm
Weight: 10.2 oz / 288 g

RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)General
Mount / Series Type: REDVOLT, REDVOLT XL, V-Mount
Number of Battery Bays: 2
Indicator: LED
Dimensions: 5.5 x 4.5 x 3" / 139.7 x 114.3 x 76.2 mm
Weight: 1 lb / 453.6 g

RED DIGITAL CINEMA KOMODO Wing Grip
General
Materials: Aluminum
Dimensions: 3.7 x 1.5 x 1.3" / 95 x 38 x 32 mm
Weight: 2.1 oz / 59 g

RED DIGITAL CINEMA KOMODO Outrigger Handle
Mounting
Attachment Method: Attaches via 2 x Built-In 1/4"-20 Screw
Compatibility:
° Attaches Directly to Camcorder: RED KOMODO
Accessory Mounting: 2 x 1/4"-20 Thread
Shoe Mounting: None
Rosettes: None
Rail Mounting: None

RED DIGITAL CINEMA DSMC3 RED 5-Pin LEMO to 3.5mm Female Audio Adapter (11.3")
Connector 1: 1 x LEMO 5-Pin
Connector 2: 1 x 1/8" / 3.5 mm Female
Cable Length: 11.3" / 28.7 cm

RED DIGITAL CINEMA EXT-to-Timecode Cable (3'')
Mounting
Connector 1: 1 x 9-Pin LEMO
Cable Length: 3'' / 91.44 cm

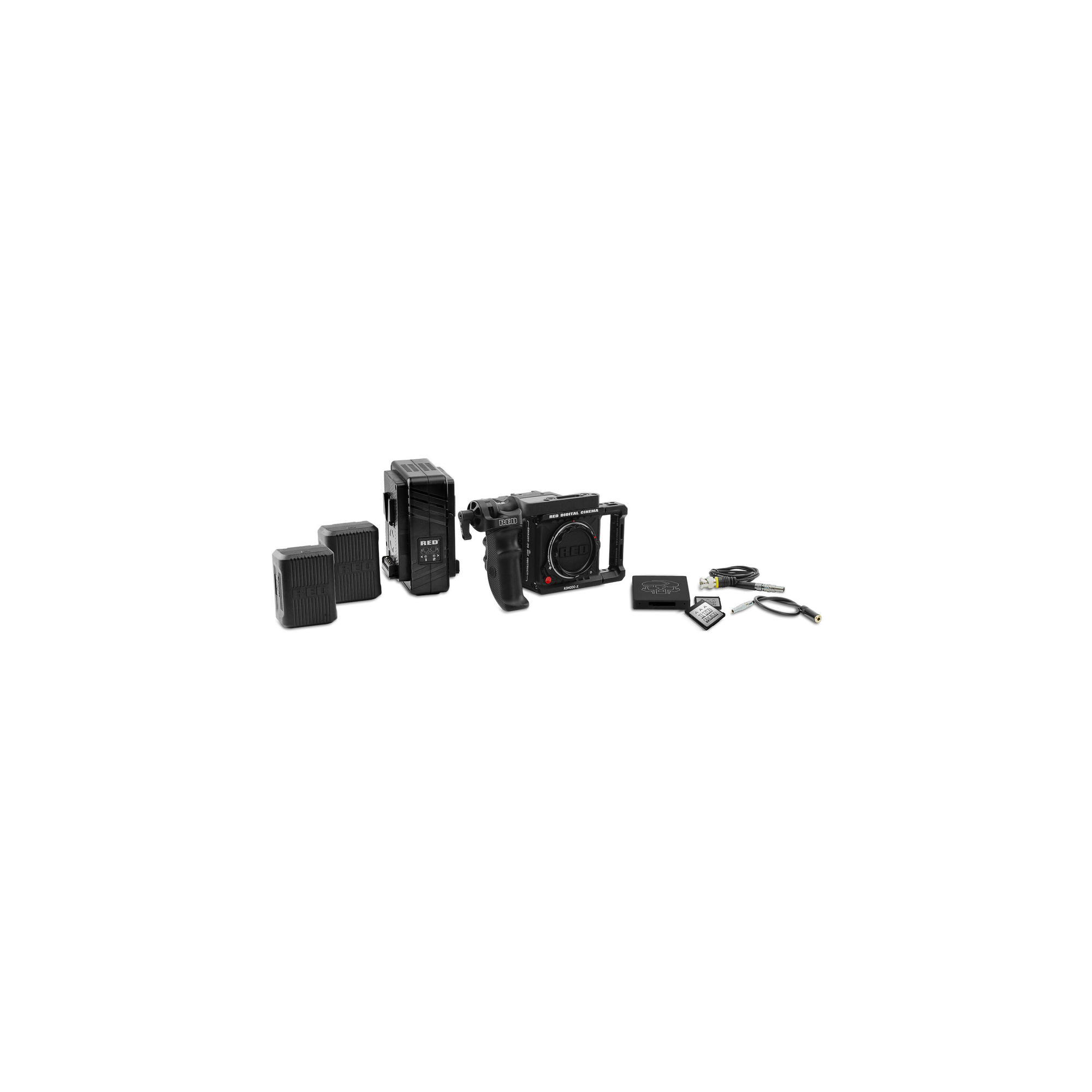

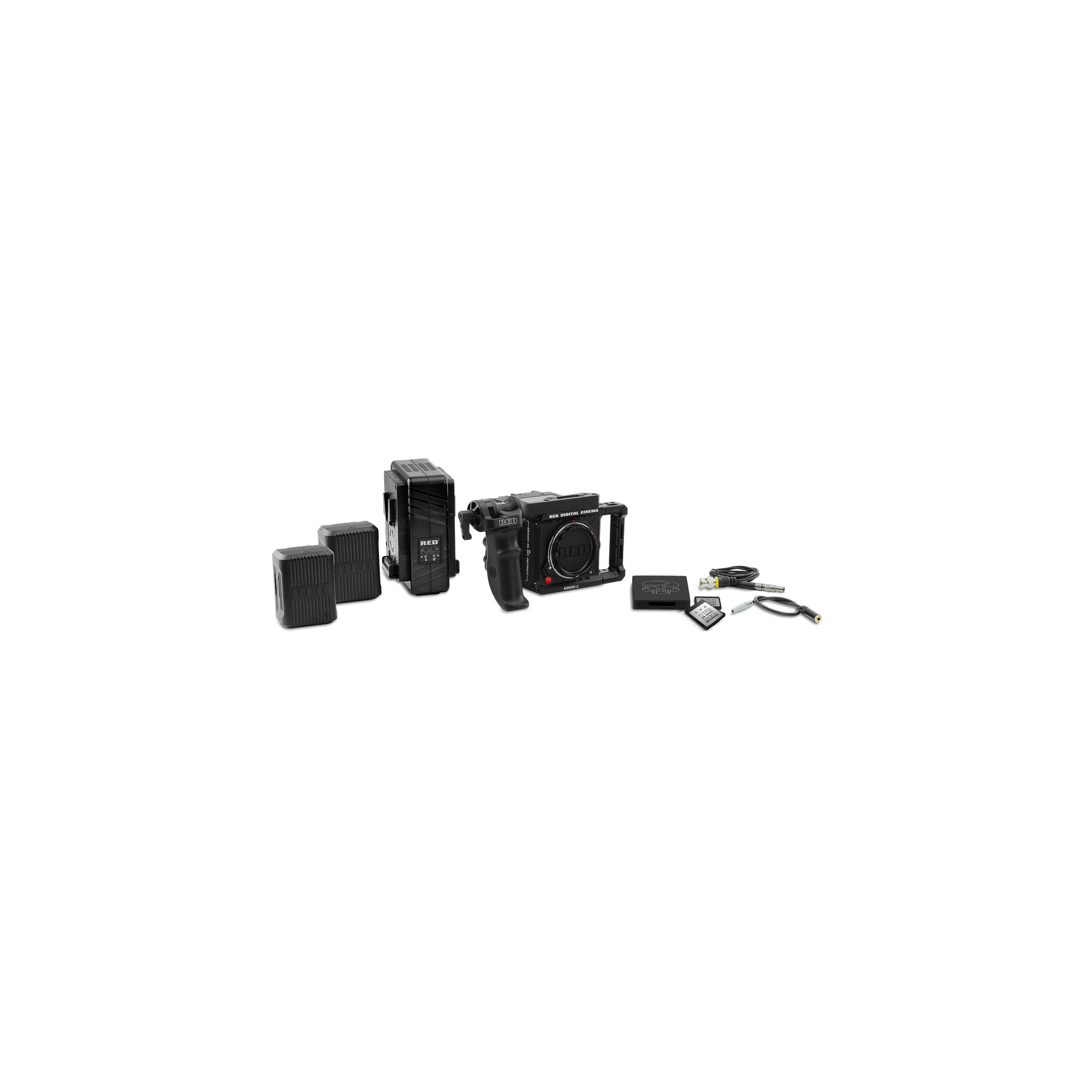

RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
2x RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
RED DIGITAL CINEMA CFexpress Card Reader
USB Type-C 3.2 Cable
USB Type-A to Type-C Adapter
2x RED DIGITAL CINEMA REDVOLT NANO-V 49Wh Battery for KOMODO-X (V-Mount)
RED DIGITAL CINEMA Compact Dual Battery Charger (V-Mount)
Power Cable
RED DIGITAL CINEMA KOMODO Wing Grip
RED DIGITAL CINEMA KOMODO Outrigger Handle
RED DIGITAL CINEMA DSMC3 RED 5-Pin LEMO to 3.5mm Female Audio Adapter (11.3")
RED DIGITAL CINEMA EXT-to-Timecode Cable (3'')
