306-0212

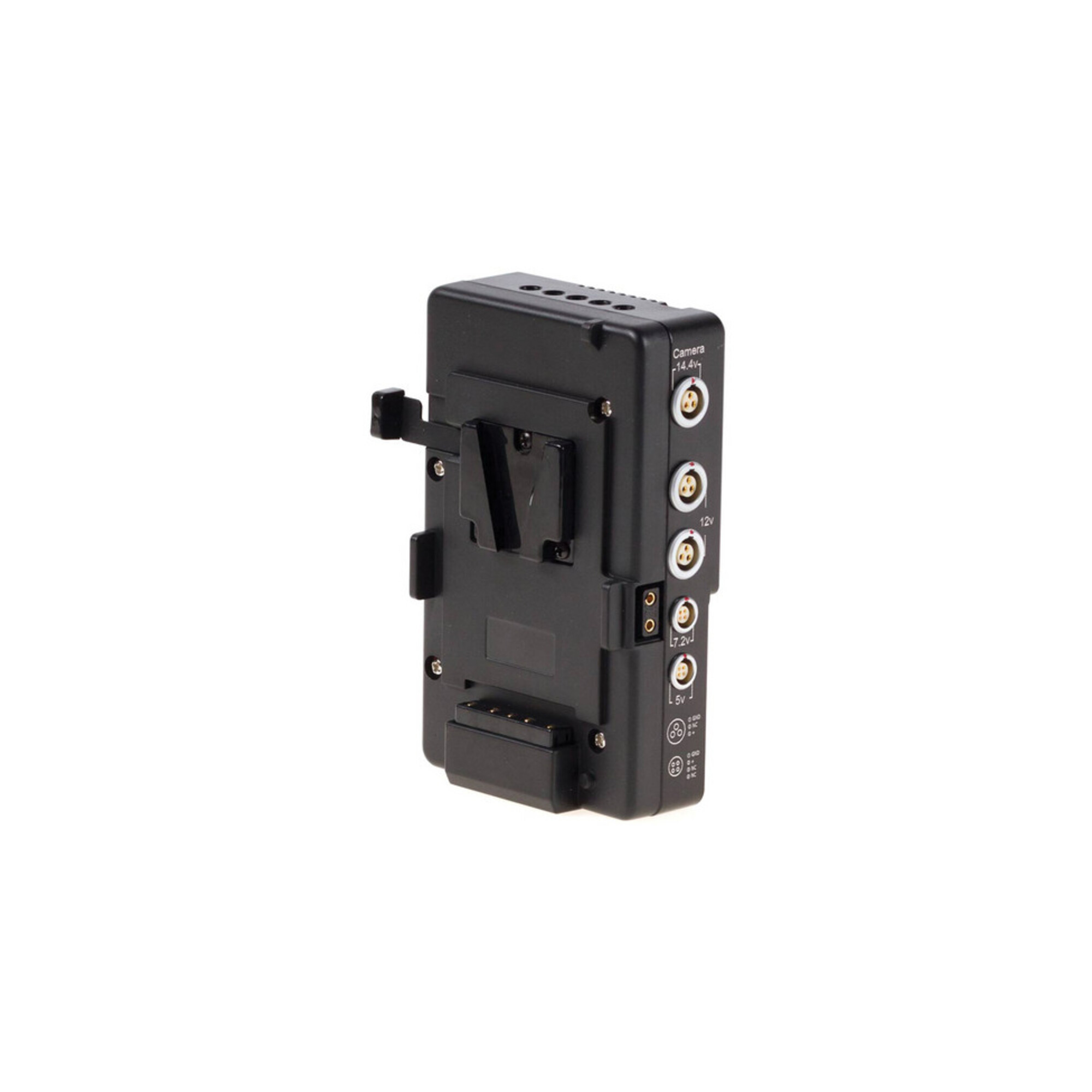

Featuring a male V-mount adapter on one side and female on the other, this Movcam Distribution Box is designed to sandwich in between a camera''s V-mount and a V-mount battery and to provide several output ports for powering devices and accessories. It can also be used rod-mounted via an optional Movcam 15mm rod bracket (model # MOV-306-0214), which attaches on the bottom and positions the unit upright.

This power station provides two 3-pin LEMO 12V unregulated outputs, one 3-pin LEMO 14V unregulated output, one 4-pin LEMO 8.5V output, one 4-pin LEMO 5V output, two P-Tap 12V outputs, and a USB 5V output. It also features a 4-pin XLR DC input that allows you to run an external 12V power source instead of a battery.

This power station can be used with any camera that features a V-mount but also with other camera via adapter plates.

Connections

2x 3-pin LEMO 12V regulated outputs
3-pin LEMO 14V unregulated output
4-pin LEMO 8.5V output
4-pin LEMO 5V output
2x 12V P-Tap outputs
USB 5V output
4-pin XLR DC input for external power

Connections 2x 3-pin LEMO 12V regulated outputs
1x 3-pin LEMO 14V unregulated output
1x 4-pin LEMO 8.5V output
1x 4-pin LEMO 5V output
2x 12V P-Tap outputs
1x USB 5V output
1x 4-pin XLR DC input for external power
Material Camera Side: Aluminum
Battery Side: Plastic
