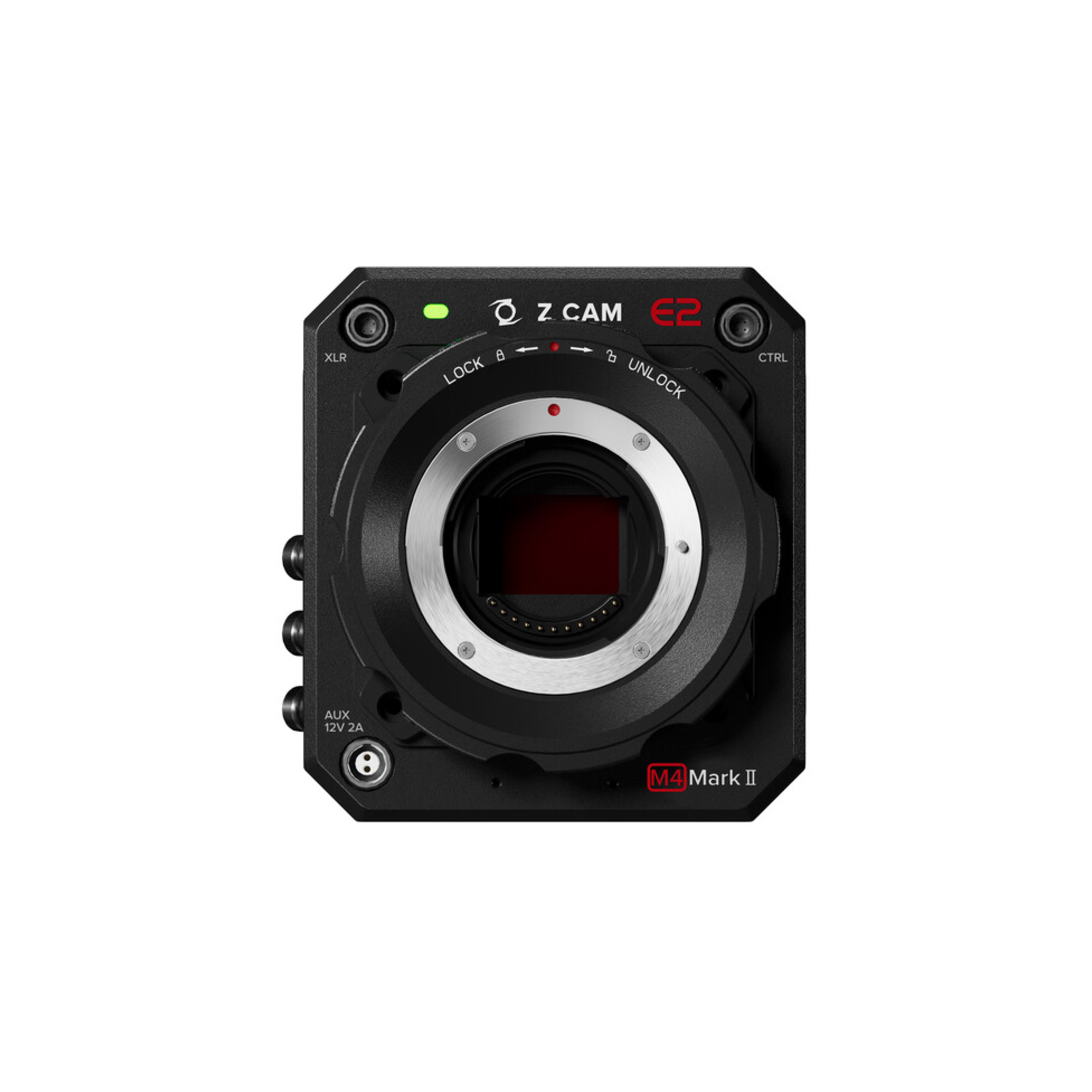

Z CAM E2-M4 Mark II

Name: Z CAM E2-M4 Mark II
Brand: Z Cam
SKU: Z CAM E2-M4 Mark II
Price: 3904637 NGN
Availability: OutOfStock

Z Cam

EAN: 6970130770170

4K Professional Cinema Camera (Micro 4/3), 3G-SDI+HDMI, Body Only - E1512

go to the technical sheet

₦ 3,904,637.00

₦ 3,632,220.08 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Z-Cam E2-M4 Mark II Professional 4K Cinema Camera (Micro Four Thirds), Sensor Size: 19.0 x 13.0 mm (Diagonal 21.63mm) - E1512

The Z CAM E2-M4 Mark II Professional 4K Cinema Camera adds connectivity and stabilization improvements to the previous camera model while maintaining its interchangeable Micro Four Thirds lens mount, Flagship Series housing, and the ability to record ProRes RAW to select Atomos recorder/monitors.
The camera records DCI and UHD 4K at up to 160 fps, as well as HD to 240 fps, all to a Cfexpress Type B card (not included).
Live stream RTSP, RTMP, and SRT protocols directly from the camera via a Gigabit Ethernet connection.
The camera features a 4/3" sensor with 10-bit color support and a nominal 13 stops of dynamic range with 16 stops when set to WDR.
ISO settings include 500 and 2500 in native mode and a total manual range of 500 to 102,400.

Expanded Interfaces
The E2-M4 Mark II features both HDMI and 3G-SDI output ports for expanded connectivity in comparison to its predecessor.
On top of this, Timecode and Genlock BNC inputs are built-in, allowing you to forgo additional adapters.
Use the USB-C, 2.5mm LANC, and Serial CTRL ports to facilitate camera control with compatible ecosystems.
A Gigabit Ethernet port also helps control the camera and live stream, and it even supports PoE+.
Audio connectivity includes a 3.5mm stereo jack input, 5-pin LEMO input, and 3.5mm stereo jack output.

4K Capture and Recording
- 12-bit ProRes RAW via HDMI to Atomos Ninja V
- Records DCI/UHD 4K up to 160 fps or 1080p up to 240 fps, to the limit of your recording media's capacity
- Native ISO: 500 and 2500
- 13-15 stops of dynamic range using Z-Log2, 16 stops of dynamic range in WDR mode
- Built-in multi-frame noise reduction technology to produce clean footage
- H.265 (10-bit color) internal recording on Cfexpress Type-B card
- 10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported
- Aluminum alloy housing for efficient heat dissipation

Multicamera Synchronization
Using high sync precision and open API technology, multiple Z CAM units can sync together for live event applications.
Connect the units to a network switch to activate EzLink Sync.
Designate Master and Remote units by daisy-chaining the cameras via Z CAM sync cables. Cat 6 Ethernet cables interconnect the wireless signals for precise sync at a latency of 0.5 ms.

iOS App
Z Camera is a mobile application that allows camera live preview and control through a Wi-Fi/USB cable connection.
It allows you to start/stop recording and adjust the camera settings remotely, and it has advanced features such as on-camera live preview.
It can be downloaded from the Apple App Store.

Camera
Sensor Type: 4/3" CMOS Sensor
Sensor Size: 19.0 x 13.0 mm (Diagonal 21.63mm)
Effective Pixels: 10.71M
Dynamic Range: 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
Lens Mount: MFT Mount w/active lock (interchangeable)
Microphone: Built-in Stereo Microphone

Recording
Resolution & Max Frame Rate:
30fps max @ C4K Low Noise (4096x2160)
120fps max @ C4K (4096x2160)
150fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4K Low Noise (3840x2160)
120fps max @ 4K (3840x2160)
160fps max @ 4K 2.4:1 (3840x2160)
30fps max @ 3696x2772 Low Noise
60fps max @ 3696x2772
60fps max @ 3312x2760
170fps max @ S16 16:9 (2752x1548)
160fps max @ S16 (2704x1600)
240fps max @ 1920x1080
Video Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW
RAW over HDMI: ProRes RAW (using Atomos Ninja V), BRAW (using BMD VideoAssist)
Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV / MP4
Record Mode: Video / Time Lapse Video / Still Image Capture

Settings
ISO: Auto, Manual (500 ~ 102400), Dual Native ISO: 500 / 2500
Shutter: Shutter Speed: Auto, Manual (1"~ 1/8000") Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance: Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode: MF / AF / CAF
Image: Brightness / Contrast / Saturation / Sharpness / Gamma Setting
Image Config: Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code: Current Time / Manual Input / External Input

Storage
Storage Media: CF Express Type B
File System: exFAT

Connectivity
HDMI: HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI: 3G-SDI
Timecode In: LTC Timecode Input via BNC
Genlock: BB/Tri-Level Genlock Input via BNC
USB: USB 3.0 Type C for camera control & data transfer only
Remote Port: 2.5 mm jack socket (Sony LANC compatible)
Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out: 3.5 mm stereo jack socket
Wi-Fi: 5G, up to 802.11n, external antenna port
CTRL: Serial port
Ethernet: Gigabit Ethernet port

Power
Battery: Mini V-Lock 14.8V (Battery not included)
Power Input: DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX): DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Consumption: 50W maximum, not inclusive of AUX power consumption

Physical
Camera Body: Aluminum Alloy
Weight - Camera (w/o Lens): 1.06 kg (with MFT mount)
Weight - Full Package: 1.40kg
Dimensions (HxWxL) - Camera: 105 x 98 x 116 mm / 4.13 x 3.86 x 4.57 inch (MFT mount)
Dimensions (HxWxL) - Package: 145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
