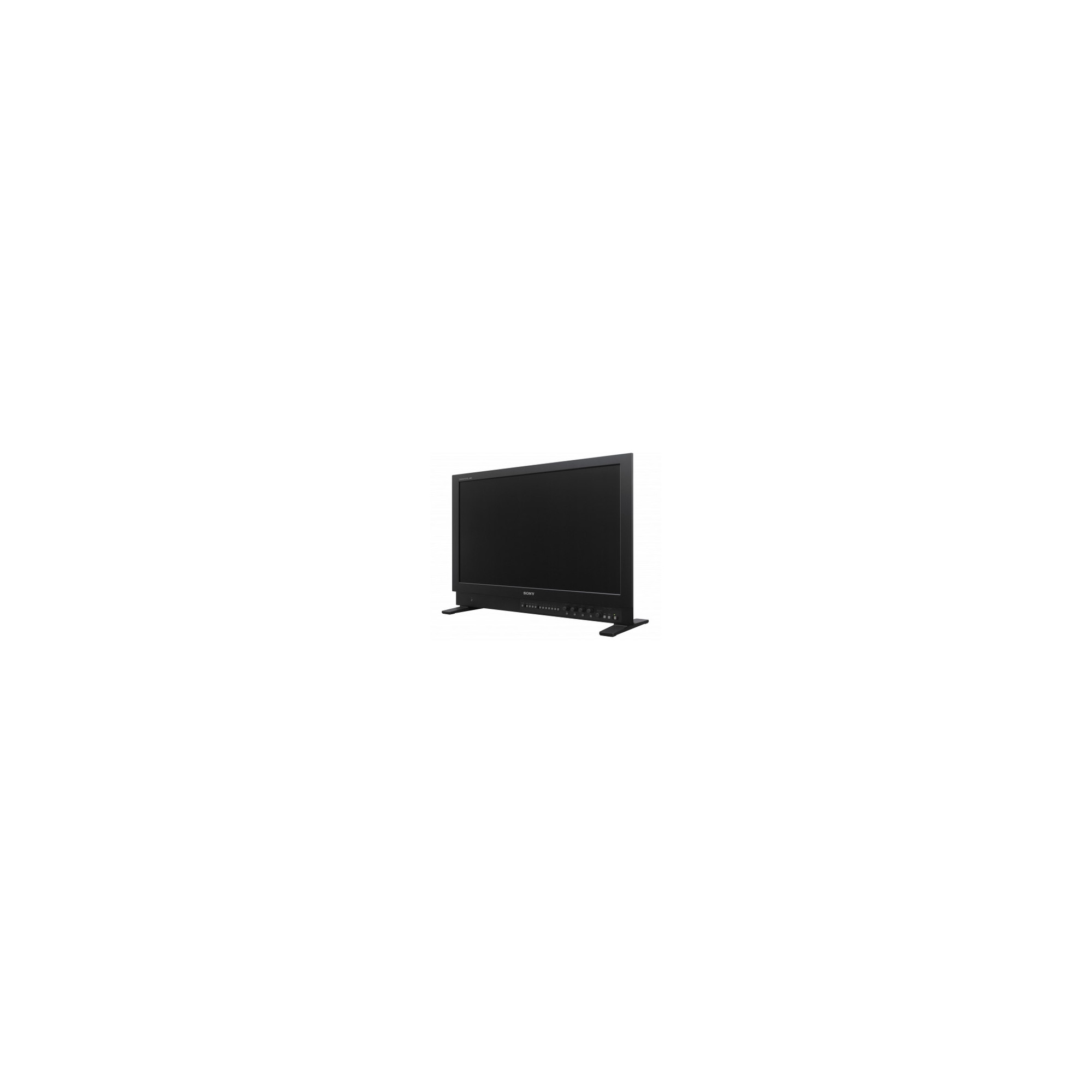

BVM-HX310

The BVM-HX310 TRIMASTER HX™ Professional Master Monitor gives absolute confidence that you're always seeing the true picture. Offering unrivalled 4K HDR picture quality, accuracy and consistency, it's ideal for demanding on-set, studio and post-production applications including 4K digital cinematography.

True colours

It's the 4K HDR monitor professional colourists have been waiting for. An optimal choice for critical colour grading and CG tasks, the BVM-HX310 offers support for industry-leading wide colour gamuts including DCI-P3, ITU-R BT.2020, S-Gamut3.cine and S-Gamut3. With consistent, faithful colour reproduction over the entire luminance range, it's an ideal partner for cinematography production and post production workflow with Sony's 4K cinematography cameras.

Note: BVM-HX310 does not cover the ITU-R BT.2020, S-Gamut/S-Gamut3 and S-Gamut3.cine colour space in full.



Ready for HDR

Fully realising the advanced performance of the TRIMASTER HX panel, the BVM-HX310 achieves 1,000 nits* of full-screen brightness with 1,000,000:1 contrast ratio. It's ideal for producing High Dynamic Range (HDR) content with rich, deep black areas and accurate reproduction of bright peak highlights. Together with support for a much wider colour gamut than conventional monitors, the BVM-HX310 can reproduce high-resolution HDR images with images clarity, depth and realism.



Great HDR flexibility

As well as conventional 2.2, 2.4, 2.6, and CRT gamma, the BVM-HX310 supports standardized Electro-Optical Transfer Functions (EOTF) for HDR such as SMPTE ST.2084 and ITU-R BT.2100 (HLG). Both standards are used to meet the demands of today's broadcast and cinematography industries. Additional EOTF tables for live and post production environments include 2.4 (HDR), S-Log2 (HDR), S-Log3 (HDR) and S-Log3 (Live HDR) - enabling easy workflows close to that of film while delivering 4K wide dynamic range.




Make no mistake

Support for VPID (Video Payload ID) identifies EOTF, colour space and RGB source information embedded in the SDI signal. Monitor settings are adjusted automatically, cutting the risk of human error in pressured live production environments.



Easy system integration

The BVM-HX310 effortlessly keeps pace with today's production workflows. Integration in the latest system environments is streamlined with a single-cable 12G-SDI input, plus connections for 3G-SDI, HD-SDI including Single Link/Dual Link and HDMI (HDCP2.3/1.4).



Enhance your workflow

Easily check the effect of different LUTs while you're on set or in post. Load customised User LUT (Look Up Table) files from a USB stick* for comparison during pre-grading or with a different EOTF. See the effect of different LUTs at the touch of a button.

*Note: BKM-17R controller is required.
Quality assurance efficiency

Quad View Display mode allows instant comparison of up to four sets of custom display settings, including EOTF, Colour Space, Transfer Matrix and Colour Temperature, Contrast, Brightness and Chroma. It's invaluable for comparing original footage with the look of different EOTF converted images. View up to four LUTs side-by-side in Quad View display mode.


True interlace mode

Interlace Display mode offers faithful reproduction of 1080i input signals, free from artefacts and picture degradation that can often occur during I/P conversion.


You're always in control

Anyone who's used the BVM-X300 master monitor will feel instantly at home with the familiar front control panel of the BVM-HX310. Seven user assignable function buttons are complemented by manual controls for aperture, chroma, brightness, and contrast. Usability is enhanced further with dimmable button lights and on/off switchable indicator lights.



Easy Maintenance*

The BVM-HX310 employs a software-based colour temperature (white balance) calibration function, which is called Monitor AutoWhiteAdjustment**. Combined with a PC and commercially available calibration tools***, this function enables simple adjustment of the monitor's white balance.

* Supported with BVM-HX310
** Supported with Monitor AutoWhiteAdjustment V1.6
*** The Konica Minolta CA-410/CA-310/CA-210, Photo Research PR-655/670, DK-Technologies PM5639/06, X-Rite i1 Pro/i1 Pro2, Klein K-10, Colorimetry Research CR-250 and JETI specbos 1211/spectraval 1501/ 1511.
