CV346

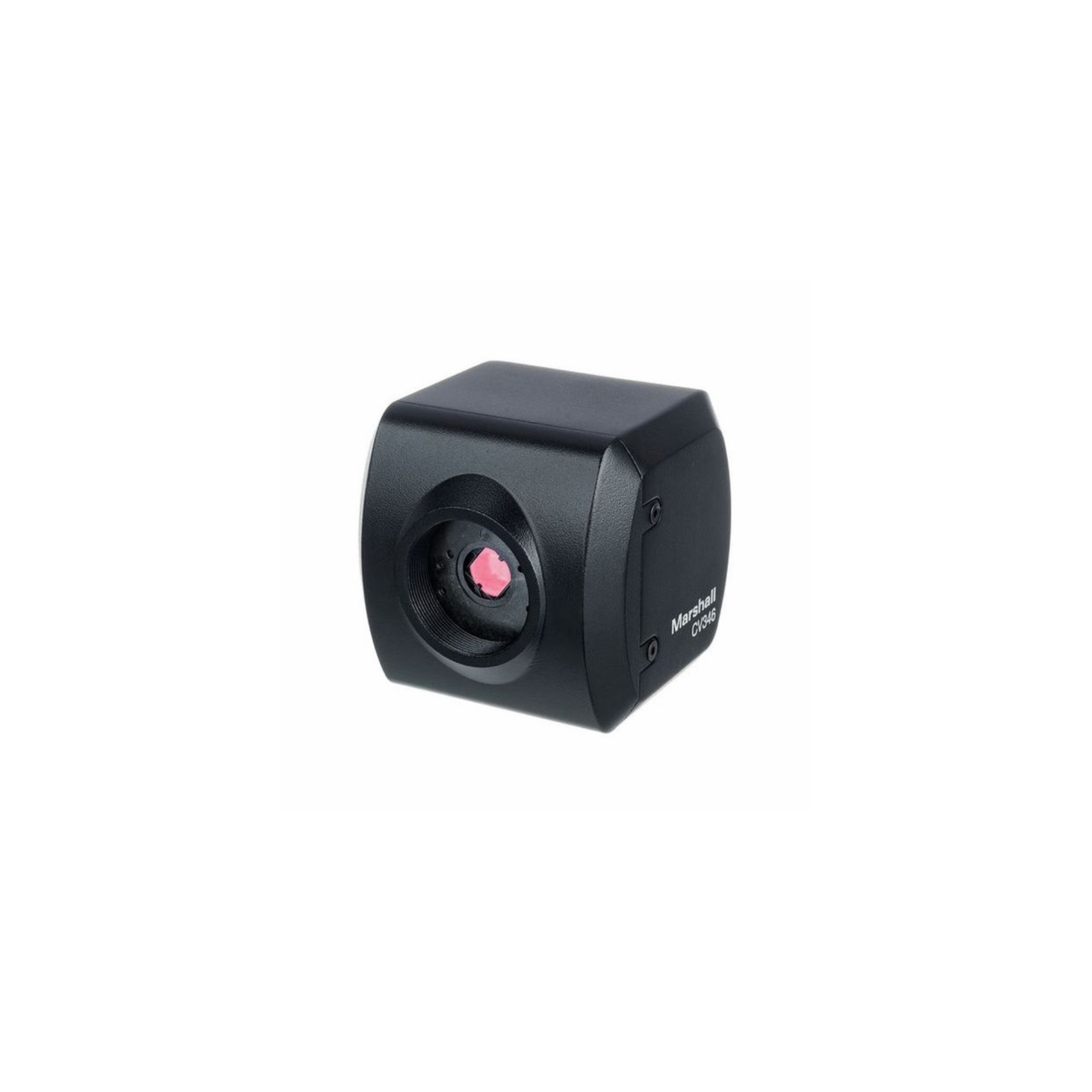

Marshall Compact HD Camera, Body Only, 3G/HD-SDI, HDMI, 1/2.8" 2.5MP CMOS Sensor

The compact and versatile Marshall Electronics 346 Compact HD Camera captures at progressive frame rates up to 60p, as well as interlaced, making it suitable for use in live broadcast productions, courtrooms, corporate videos, government assemblies, sportscasts, newscasts, reality television, concerts, and houses of worship.
It features a 2.5MP CMOS sensor with 1920 x 1080 resolution and outputs 3G/HD-SDI as well as HDMI.
Image tools include Digital Noise Reduction, Auto White balance, and digital zoom.
The CS lens mount enables mounting a large assortment of available lenses as well as C-mount lenses with the included adapter.
Lenses are not included and must be sourced separately.

Features specific to surveillance include motion detection and privacy mask, allowing you to have the camera trigger if it detects motion in a specific area as well as being able to mask off an area of the image from surveillance.
Audio is handled by the breakout cable that lets you connect a mic- or line-level input device.
The breakout cable also features an integrated joystick control for accessing and setting menu items via the on-screen menu display.
In addition, you can also control the camera via RS-485 control protocol.

° Image Control
Lens Shading: corrects inconsistent brightness level in the image
Contrast: adjusts the image contrast level
Brightness: adjusts the image brightness level
Saturation: adjusts the image saturation level
Hue: adjusts the image hue level
Edge Enhance: adjusts the image sharpness level
Auto Saturate: decreases saturation automatically when noise scene is detected
Auto Edge: adjusts line sharpness level automatically
Black / White Level: adjusts the image black level value
Gamma Correct: adjusts the image output gamma level
DNR: Reduces video noise at low-ambient light. Select the DNR level from Off, Low, Middle, and High using the left or right button

° Digital Tools
DZoom: digitally zoom the video by the desired ratio
Defog: this feature will help increase visibility in extreme weather conditions, such as fog, rain, or in a very strong luminous intensity
DIS: this feature enables digital image stabilization
Backlight: adjust backlight compensation by choosing either BLC / HLM from this menu
Binning: enable or disable pixel binning
Defect Pixel: advanced defective pixel correction menu
Disp Function: display effect such as freeze mirror, rotation, and style can be applied from this menu
WDR: this feature enables user to view both object and background more clearly when background is too bright
Flicker Detect: adjust the image sensor frequency to match the power frequency
Privacy: mask an area you want to hide on the screen by applying privacy zones
