CV-PT-HEAD

Name: CV-PT-HEAD
Brand: Marshall
SKU: CV-PT-HEAD
Price: 3041281 NGN
Availability: OutOfStock

Marshall

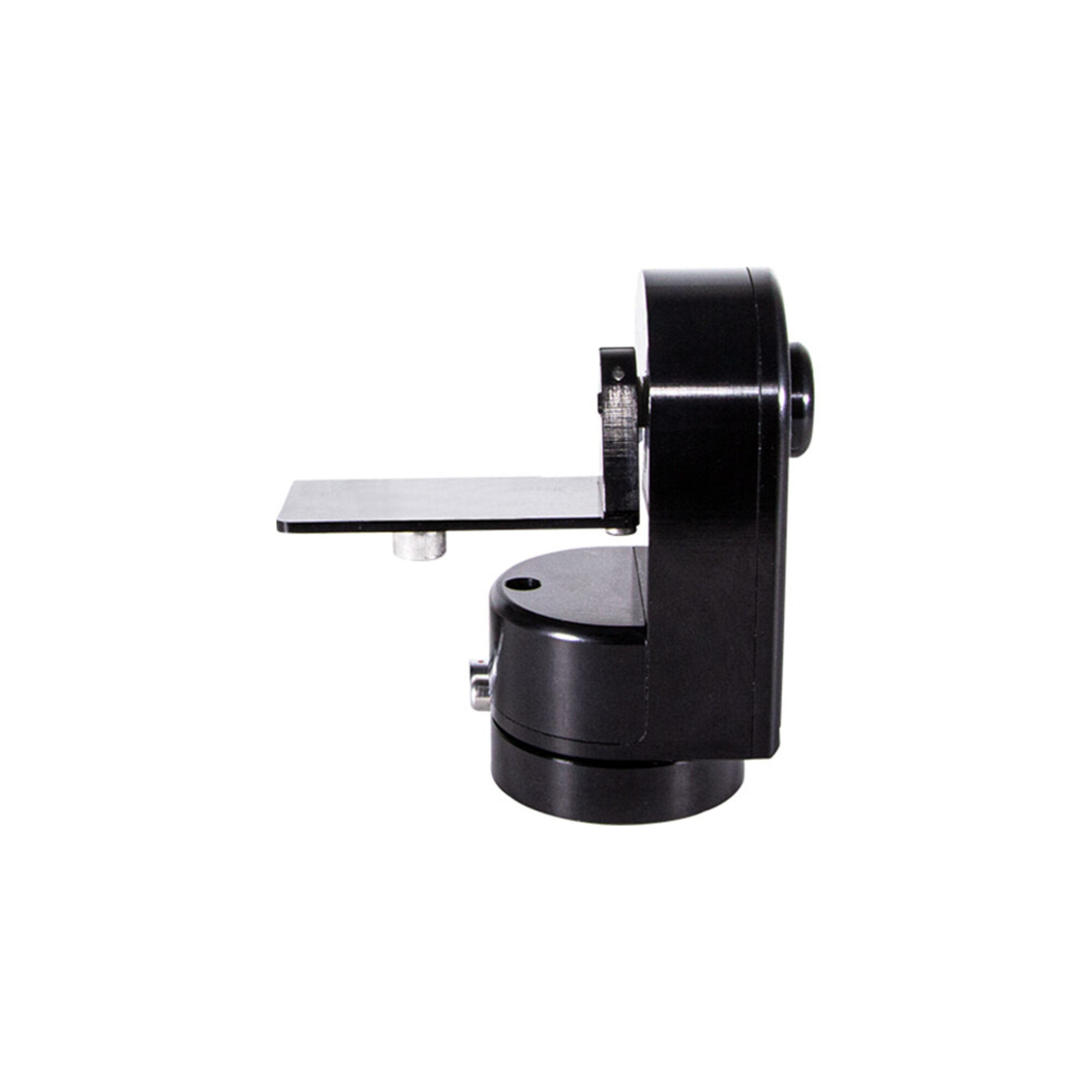

Motorized Micro PT Pan/Tilt Head for Select CV Series Cameras

go to the technical sheet

₦ 3,041,281.00

₦ 2,829,099.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

Mount and control the pan and tilt movements of your CV503 (all models), CV506 (all models), CV344, CV346, CV355-10X, or CV380-CS series camera remotely with the Motorized Micro PT Pan/Tilt Head from Marshall Electronics. It can be mounted onto a tripod, wall, or ceiling using its 1/4"-20 and M3 threads, allowing you to maneuver your camera in different positions using its 10 gears. The pan/tilt mount is made with a durable aluminum housing, and it is IP65 weatherproof.

Material of Construction: Aluminum
Presets : 64
Power and Connectivity: 1 x 4-Pin Connector
Mounting :
3 x M4 Threads
1 x 1/4"-20 Thread
2 x M4 Safety Bolts

Image Flip : Yes
Power : 12 to 35 VDC at 0.5 A
Gears : 10
Serial Protocol: VISCA
Pan Range : 350°
Tilt Range : 360°
IP Rating : IP65

Payload :
14.1 oz / 400 g
0.8 to 2.4" / 20 to 60 mm Width

Dimensions : 3.52 x 2.2 x 1.77" / 89.51 x 55.5 x 45 mm
Weight : 8.8 oz / 250 g

Packaging Info
Package Weight: 1 lb
Box Dimensions (LxWxH): 5.5 x 4 x 3.5"
