Aida

0686091739823
FHD NDI®|HX/IP Weatherproof Cylinder POV Camera
go to the technical sheet
€ 502,72

€ 467,65 VAT excl.

Available in 34 days
Not sure if this is the right product for you? Talk to a consultant

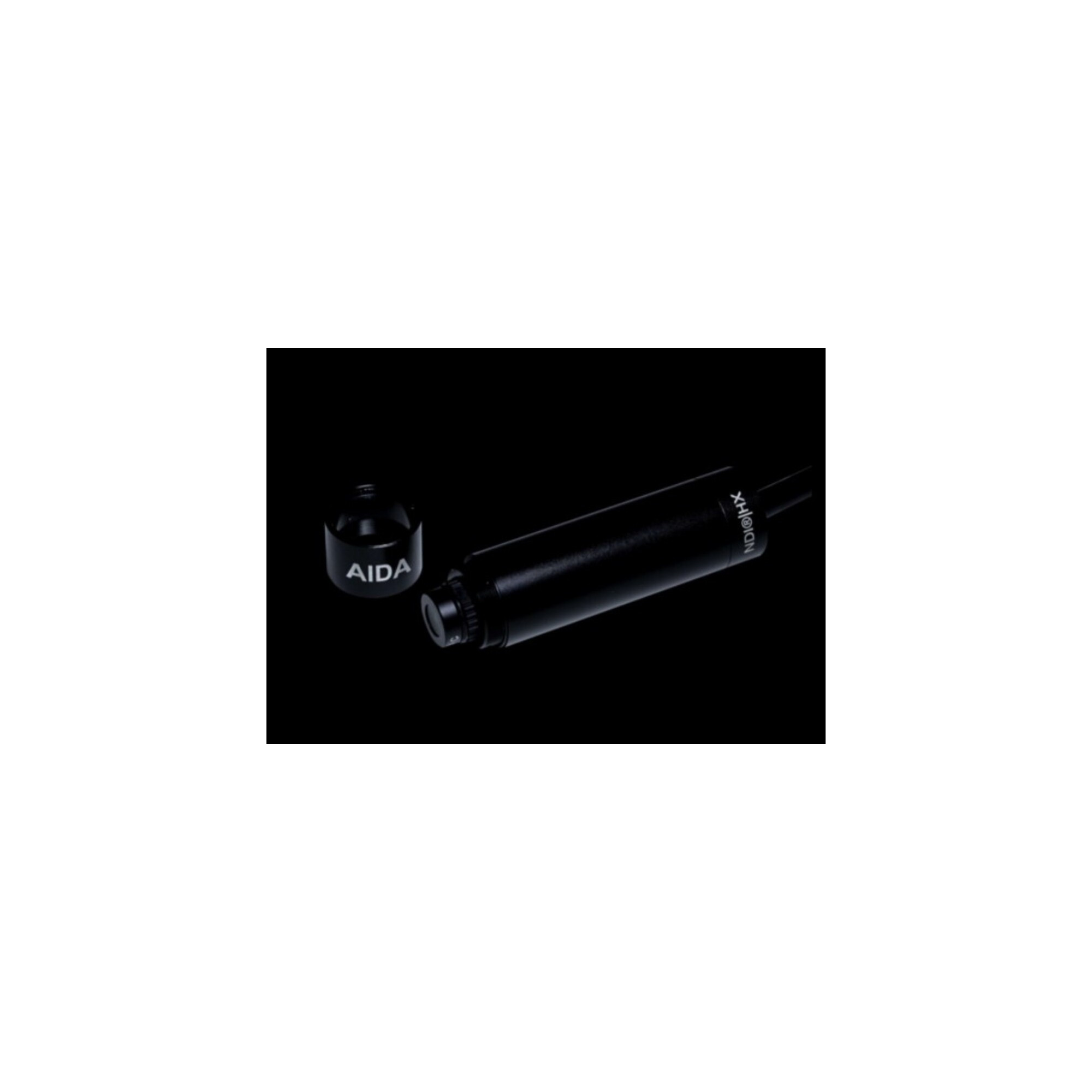

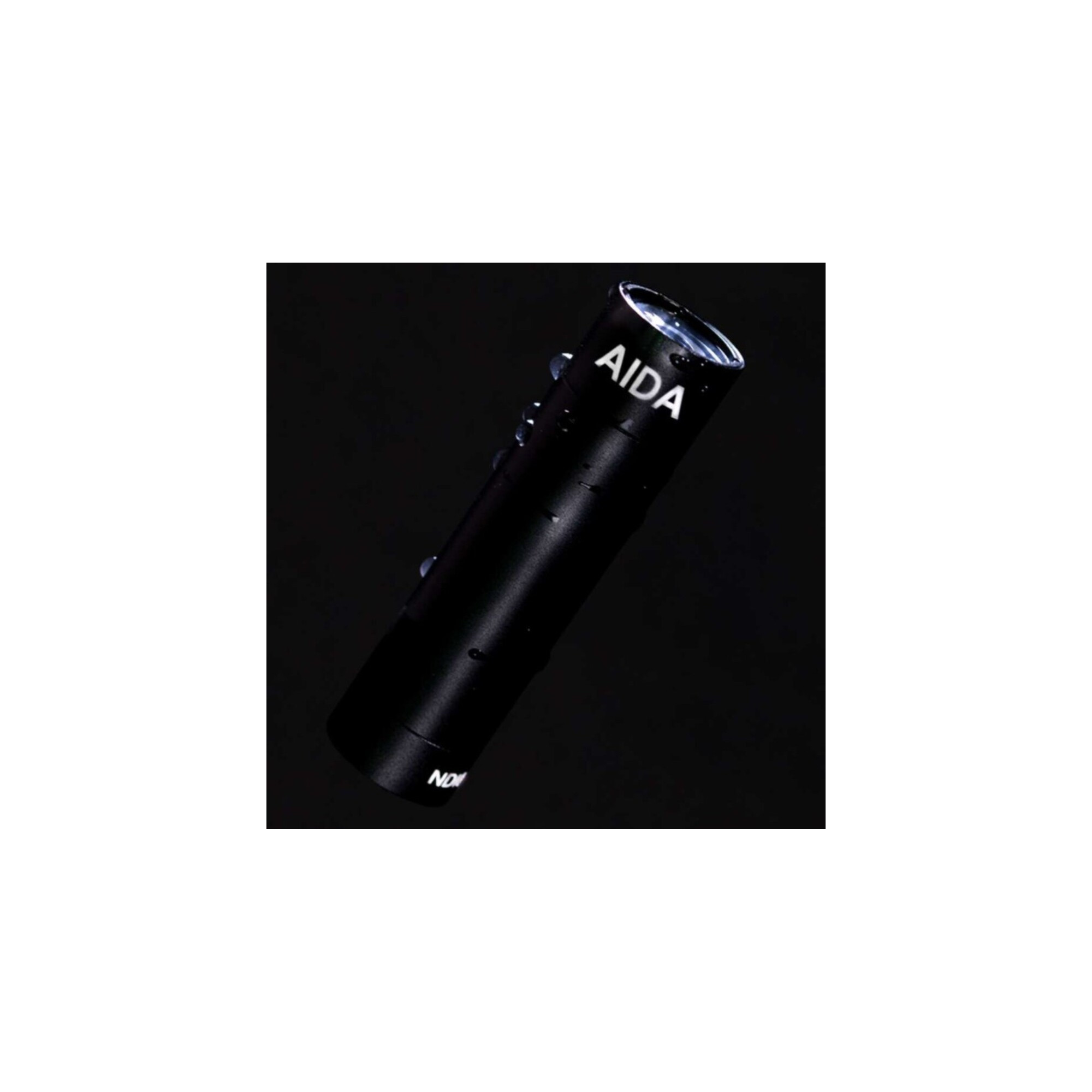

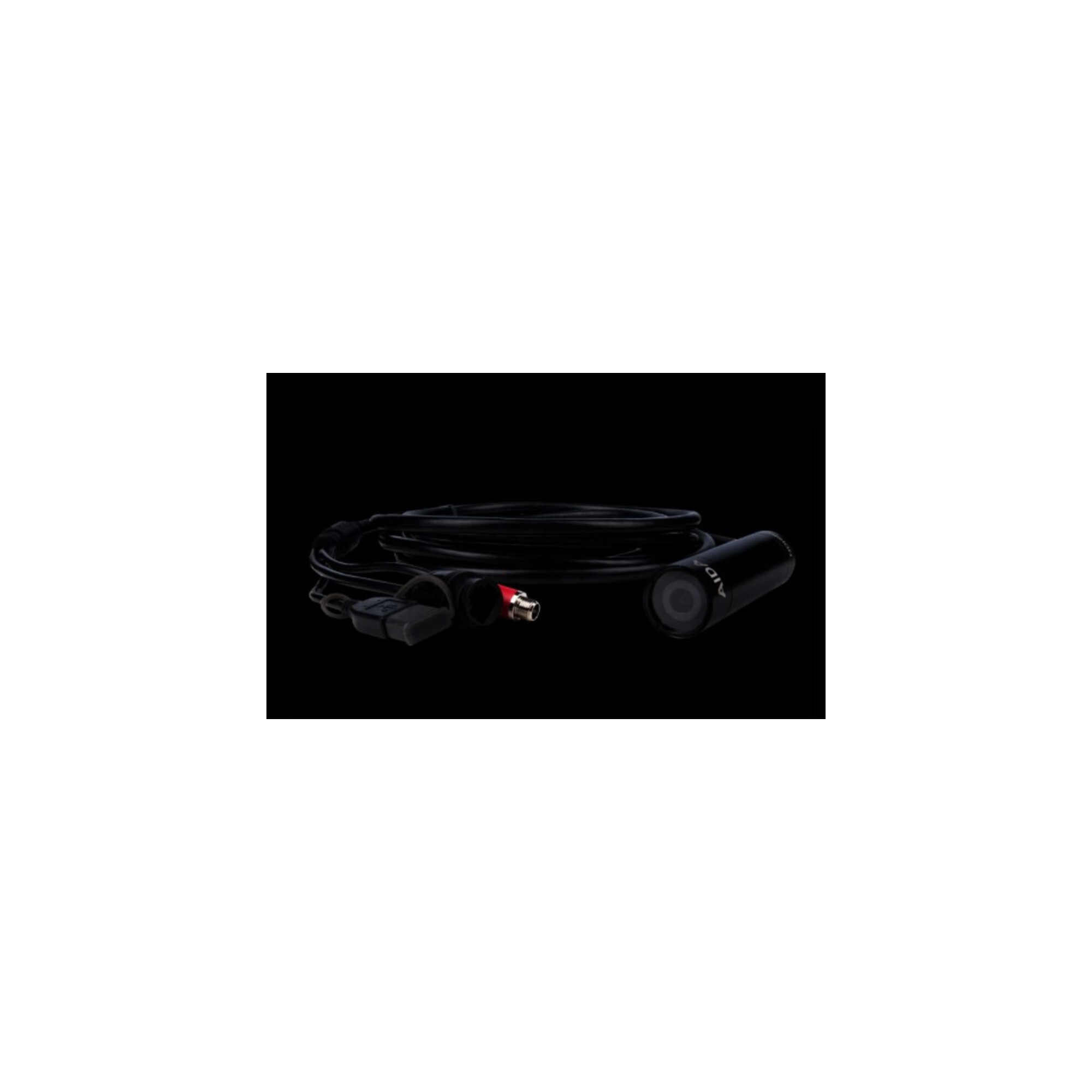

It really doesn't get any smaller then this. Introducing the most discreet, NDI|HX camera AIDA has to offer. With its weatherproof barrel design, the HD-NDI-MINI is well protected against dust and moisture. Packed with a progressive CMOS sensor, this little camera can output 1080 60p video through your standard IP protocols, SRT, and most importantly, NDI|HX. With a tripod mount located on the bottom of the camera, there is no place the MINI can't go.

• Full-HD 1/3" Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX
Video.
• Accessible Web UI to stream directly to social media platforms
and control image parameters over IP.
• Compact design used for discreet, hard to reach POV shots unobtainable by
larger cameras.
• M12 type lens for an even smaller form factor
• Weatherproof rating allows for extra protection against environmental
elements.
• Barrel design for better weatherproofing and fitment.
• Perfectly suited for outdoor shots any new or existing NDI®|HX setup.

VIDEO
Image Sensor: 1/3" Progressive CMOS
Sensor Size: 5.346mm x 3.003mm (16.9)
Effective Pixels: Horizontal: 1920, Vertical: 1080
Pixel Size: 2.75 µm (H) x 2.75 µm (V)
Resolution: 1080p, 1080i, 720p
Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p
24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output: IP (NDI|HX/SRT/RTMP/RTSP)
Color Space: 4:2:2 (YCbCr) 10bit
Min Illumination: 0.2Lux (day), 0.1Lux (Night)
White Balance: Auto & Manual (9000 - 11,000 K)
LENS
Lens: M12 (Default 4mm HD Lens with WP CAP)

STANDARD
IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

PHYSICAL
Camera Control: Protocol: VISCA Over IP
Operation Temp: 32°F - 104°F

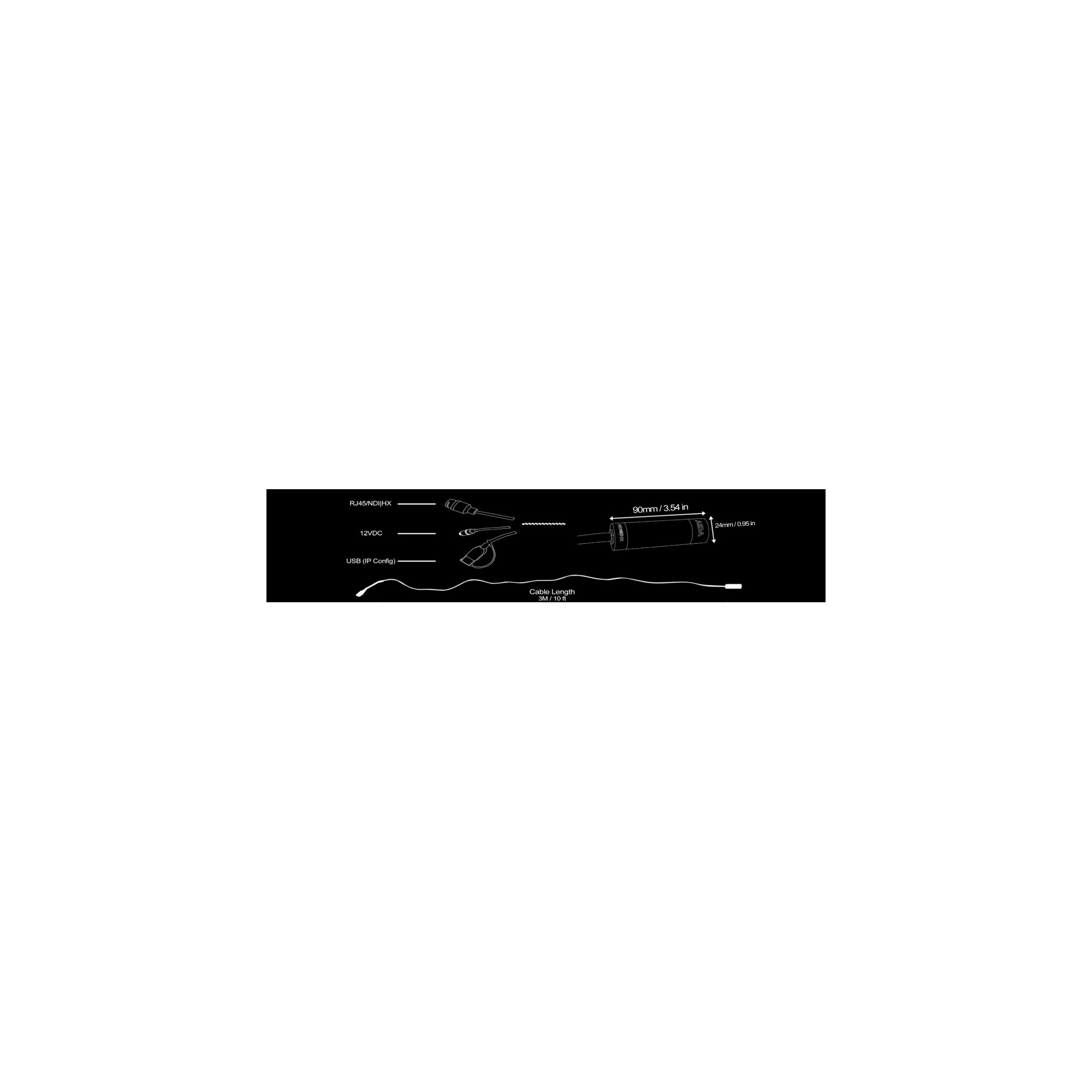

Dimension: 90mm x 24mm
3.5" x 0.94" (with default WP cap)
Weight: 180g / 0.39lbs (with default WP cap)
Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
