ATEM156-CO

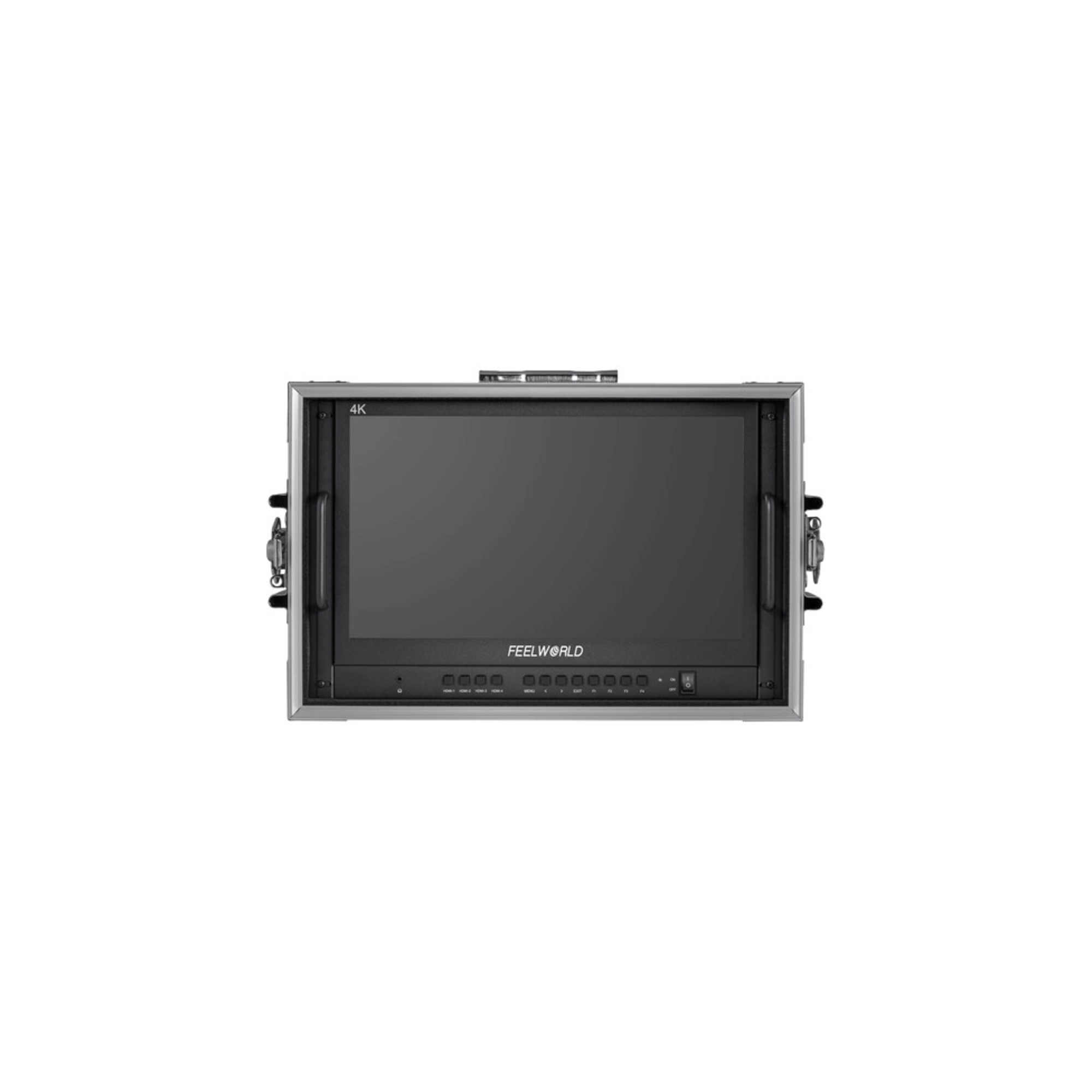

View up to four video feeds while filming or in post-production using FeelWorld's 15.6 "HDMI Quad 4K portable multiview monitor. This monitor is housed in a durable aluminum case for easy transport, both on site and in studio It supports SD signals, HD and 4K up to DCI 4K24 and UHD 4K30, and offers quad and PiP (picture-in-picture) viewing options.

Power the 15.6 "Quad monitor using the rear V-mounting plate and a compatible battery or via the included AC adapter. Various imaging tools such as focus peaking, adjustable color temperature and selectable aspect ratio and indicators help you customize your display.

15.6 "Quad 4K HDMI monitor.
Four HDMI Type A inputs and outputs for viewing multiple cameras
It supports SD and HD video up to DCI 4K23 and UHD 4K30
3.5mm headphone monitor output
Monitoring tools
Quad Split and Picture-in-Picture display with 2P left / right, 2P top / bottom, 2P PiP and 4P options
Rec. 709 HD color standard
Peaking, false colors, pixel to pixel zoom
Center marker, safety marker, grid marker
Center markers: 80/85/90/93/96%
Line colors: red, green, blue, white
Image zoom, control field, image freeze
Display rotation: 0/90/180/270 °, H. Mirror, V. Mirror
Selectable color temperature
Selectable aspect ratios: 4: 3, 2.39: 1, 2.35: 1, 1.85: 1
Anamorphic de-squeeze: x1.33, x1.5, x1.8, x2.0
Four assignable function keys
Durable aluminum case
Housed in a sturdy aluminum case for easy placement or studio use
The front and back panels can be removed for easy access by leaving the monitor in the main case to save time
Power options
Integrated V-mount battery plate
12 V DC power adapter
