ATEM215S-CO

Name: ATEM215S-CO
Brand: Seetec
SKU: ATEM215S-CO
Price: 2391121.43 NGN
Availability: InStock

Seetec

EAN: 6971863810218

21.5" Live Stream HD Broadcast Director Monitor (Carry-On Case)

go to the technical sheet

₦ 2,391,121.43

₦ 2,224,299.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 239,112.14

Available 2 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

Seetec 21.5" Live Stream HD Broadcast Director Monitor (Carry-On Case), 1920 x 1080 Resolution, 250 cd/m²

- 1920 x 1080 Resolution, 250 cd/m²
- 4 x 3G-SDI Inputs, PiP/Quad-ViewDisplay
- 1 x HDMI & 4 x 3G-SDI Outputs
- V-Mount Battery Plate, Tally Light
- GPI Input/Output, RS-485 Control Port
- 178° Viewing Angle
- 1000:1 Contrast Ratio

The 21.5" Live Stream HD Broadcast Director Monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and 250 cd/m2 brightness.
The rear panel contains four 3G-SDI inputs that support up to 2K input, and there are four 3G-SDI outputs and one HDMI output, and it supports quad-view, dual-view, and PiP display layouts so you can view inputs simultaneously.

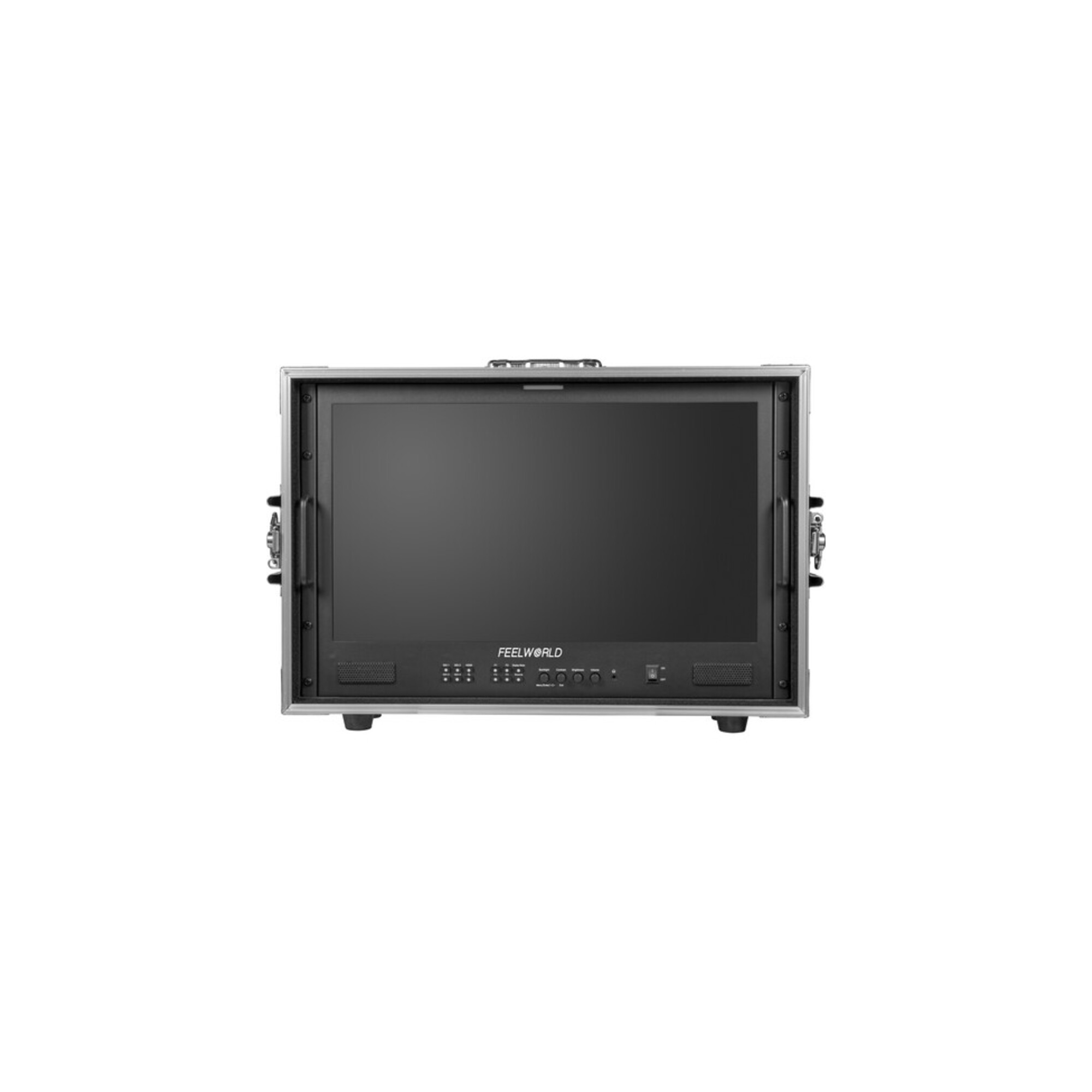

The monitor is installed in a carry-on aluminum case that features a rear cover to access the ports and battery, and the front cover installs to protect the monitor for transport.
It can be carried using a handle on top.

Display
Panel Type: IPS-Type LCD
Display Size: 21.5" / 54.6 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle:
- Horizontal: 178° (89/89)
- Vertical: 178° (89/89)
Touchscreen: No
Maximum Brightness: 250 nits / cd/m2
Contrast Ratio: 1000:1
HDR Support: Yes
Image Controls: Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter

Inputs/Outputs
Video I/O:
- 4 x BNC (3G-SDI) Input
- 4 x BNC (3G-SDI) Output
- 1 x HDMI (Unspecified Signal) Output
Embedded Audio: HDMI/SDI
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: No
Power I/O:
- 1x Barrel (12 VDC) Input
- 1x XLR 4-Pin Input
Other I/O:
- 1x RJ45 (GPI) Input
- 1x RJ45 (GPI) Output
- 1x RJ45 (RS-485) Input
- 1x USB-A 2.0 Input
Media/Memory Card Slot: No

Format Support
Video Format:
SDI (8-Bit)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i

Power
Input Power: 12 VDC
Battery: 1x V-Mount on Included, Interchangeable Plate
Power Consumption: 37 W

Mounting
VESA Mounting-Hole Pattern: 75 x 75 mm, 100 x 100 mm

General
Operating Conditions: 32 to 122°F / 0 to 50°C
Storage Conditions: -4 to 140°F / -20 to 60°C
Dimensions: 20.14 x 14 x 0.92" / 51.16 x 35.56 x 2.33 cm (Excluding Bracket)
Weight: 9.41 lb / 4.27 kg, Excluding Bracket
