POV-SDI-W01

Name: POV-SDI-W01
Brand: ON-AIR
SKU: POV-SDI-W01
Price: 302826 NGN
Availability: OutOfStock

ON-AIR

EAN: 0653854022065

HD SDI 2.0MP 1080P 25fps/30fps Lens 3.6mm Box SDI Camera

go to the technical sheet

₦ 302,826.00

₦ 281,699.00 VAT excl.

Available in 34 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

ON-AIR HD SDI Camera 2.0MP 1080P 25fps/50fps Lens 3.6mm Box SDI Camera.

3G SDI Camera Using 1/2.8 CMOS image sensor, 3G / HD SDI digital signal

Resolutions output, Support 1080@25/30P

1080P high definition image quality, effective resolution reaches 1920 x 1080, no delay, no compression, low loss and real-time transmission

Ultra-wide dynamic capabilities in a very strong light, can see the features of the image contrast light in a small range, and super wide dynamic , and the highest can reach 60fps.

Features:

- 2.0Mega Pixel SONY IMX 290+ Eyenix 778
- 1080p(1920x1080)@NTSC 25fps/30fps
- Support WDR,3D-DNR
- OSD menu,Motion detection,Privacy Zone,HLC,BLC
- TV Out(BNC) with NTSC/PAL Selectable
- Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 75ohm

Camera
________________________
Image Sensor: 2.0 Mega Pixel, Panasonic V34229 + Eyenix 778
Effective Pixels: 1920(H) x 1080(V)
Scanning System: Progressive Scan
Minimum Illumination: 0.2 Lux(Color/Day) 0.01Lux(B/W)

Lens
________________________
Foval Length: 3.6mm
Mount: "C" Mount mini

Functions
________________________
IR Viewing Distance: N/A
WDR (Long and Short Exposure): OFF/ON (Adjustable Level)
On Screen Display: Integrated
3D-DNR (3D Digital Noise Reduction): OFF/ON(LOW/MED/HIGH)
Sens-Up: OFF/ON
Motion Detection: OFF/ON
Privacy Zone: OFF/ON
HLC: OFF/ON
B.L.C. Control: OFF/ON
Defog: OFF/ON
White Balance: AWB/ATW/PUSH/MANUAL
A.G.C: HIGH / LOW
D-ZOOM: 1.0x - 8.0x
MIRROR: OFF/ON
FLIP: OFF/ON
TV System: PAL/NTSC
Electronic Shutter Speed: AUTO/MANUAL/FLK

Connections
________________________

Video Output: HD-SDI (Compatible with SMPTE 292M)
Operating Temperature: -10°C - +50°C

General
________________________

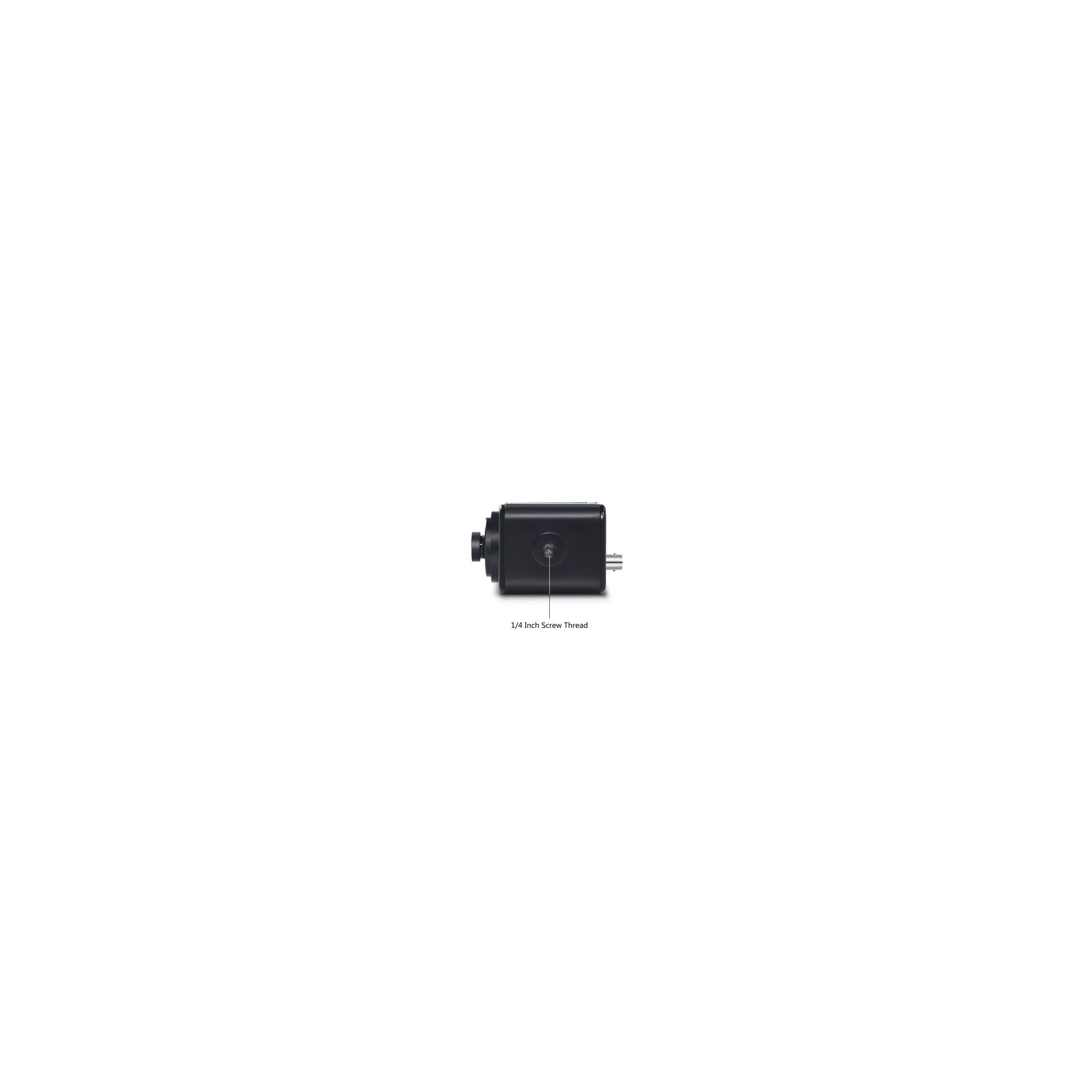

Connection: thread 1/4"
Operating Humidity: Within 95% RH
Power Supply: DC12V(+/-15%)
Power Consumption: 100mA
