V-RAPTOR 8K S35 Starter Pack

Choose 8K Super35 capture for your productions with the black V-RAPTOR 8K S35 Camera, RED DIGITAL CINEMA's newest DSMC3 model that incorporates an 8K, 35.4MP S35 CMOS sensor. With 16.5+ stops of dynamic range, speedy cine-level scan time, and optimal low-light performance, the V-RAPTOR 8K S35 is ready to bring RED quality imaging to your Super35-format imaging. Its multi-format recording options include 8/7/6/5/4/3/2K, with REDCODE Raw, Apple ProRes, anamorphic, and proxy selections.

The V-RAPTOR 8K S35's active RF lens mount enables you to adapt your capture for each project using a wide array of pro cine or still photo lenses and can be used with an EF lens adapter. Phase-detect and contrast autofocus is available when used with compatible lenses. This combination of Super35 capture, lens versatility, autofocus (for select lenses), and the compact DSMC3 form enables the V-RAPTOR 8K S35 to fit seamlessly into your wildlife and broadcast projects or other shoots involving lots of handheld work and company moves to multiple locations.
Super35 Sensor and 8K Capture Options
35.4MP CMOS S35 Sensor

The V-RAPTOR 8K S35's Super35mm 35.4 MP CMOS sensor provides a practical alternative to full-frame capture that is particularly suitable for in-the-field productions while still offering the high resolution and shallow depth of field beloved by cine-style shooters.
16.5+ stops of dynamic range give the V-RAPTOR 8K S35 the ability to capture stunning images in any environment you explore

Up to 8K Capture

A wide range of resolutions and frame rates enables the V-RAPTOR 8K S35 to capture up to 120 fps in 8K, 240 fps in UHD 4k, and 480 fps in 2K, with anamorphic options available in 6K, 7K, and 8K.
The 8K resolution provides the ability to crop multiple shots in a lower resolution from a single 8K take.

Wide Array of Compatible Lenses

Super35 lens choices provide a more compact form while offering a wide range of zoom and prime lenses for both broadcast and cine-style productions.
The locking Canon RF lens mount supports select RF to Canon EF-mount adapters, further expanding your lens selection.
Phase-detect and contrast autofocus is available with compatible lenses.

Applications
The compact form, availability of a wide array of compatible lenses, and the classic Super35 look make the V-RAPTOR 8K S35 ideal for wildlife, broadcast, and cine-style productions.
Compact DSMC3 Form
Side Control Panel

Conveniently located on the assistant's side, an easy-to-navigate, 2.4" LCD panel provides comprehensive control, including status updates, in-camera format selection, and customizable buttons.
The V-RAPTOR 8K S35's compact and durable DSMC3 form features micro-V battery compatibility, several monitor options, CFexpress card capture, and a modular design that, when paired with a compact Super35 lens, creates a portable, ergonomic form.

Note:
The LCD panel is for camera control only, it does not provide preview video.
Interfaces

Built-in interfaces include dual 12G/6G/3G-SDI video outputs, genlock, timecode, GPIO, and RS-232 ports.
Wireless 1080p video preview and camera control are available via dual-band Wi-Fi.
A 5-pin audio port provides a dual channel mic/line input with +48V phantom power.

Power Options
Power the V-RAPTOR 8K S35 camera using the integrated battery interface and a Micro V-mount battery or the included AC power adapter.


35.4MP Super35 CMOS Sensor
Active RF Mount, Autofocus Select Lenses
Up to 8K120, 7K140 & 4K240 in 17:9 S35
16.5+ Stops of Dynamic Range
Lightweight & Compact DSMC3 Design
ProRes, REDCODE Raw HQ, MQ & LQ Options
Right-Side Assistant's User Interface
Built-In 2.4" LCD for Camera Control
USB-C, Timecode, Dual 12G-SDI Ports
V-Mount Battery Interface

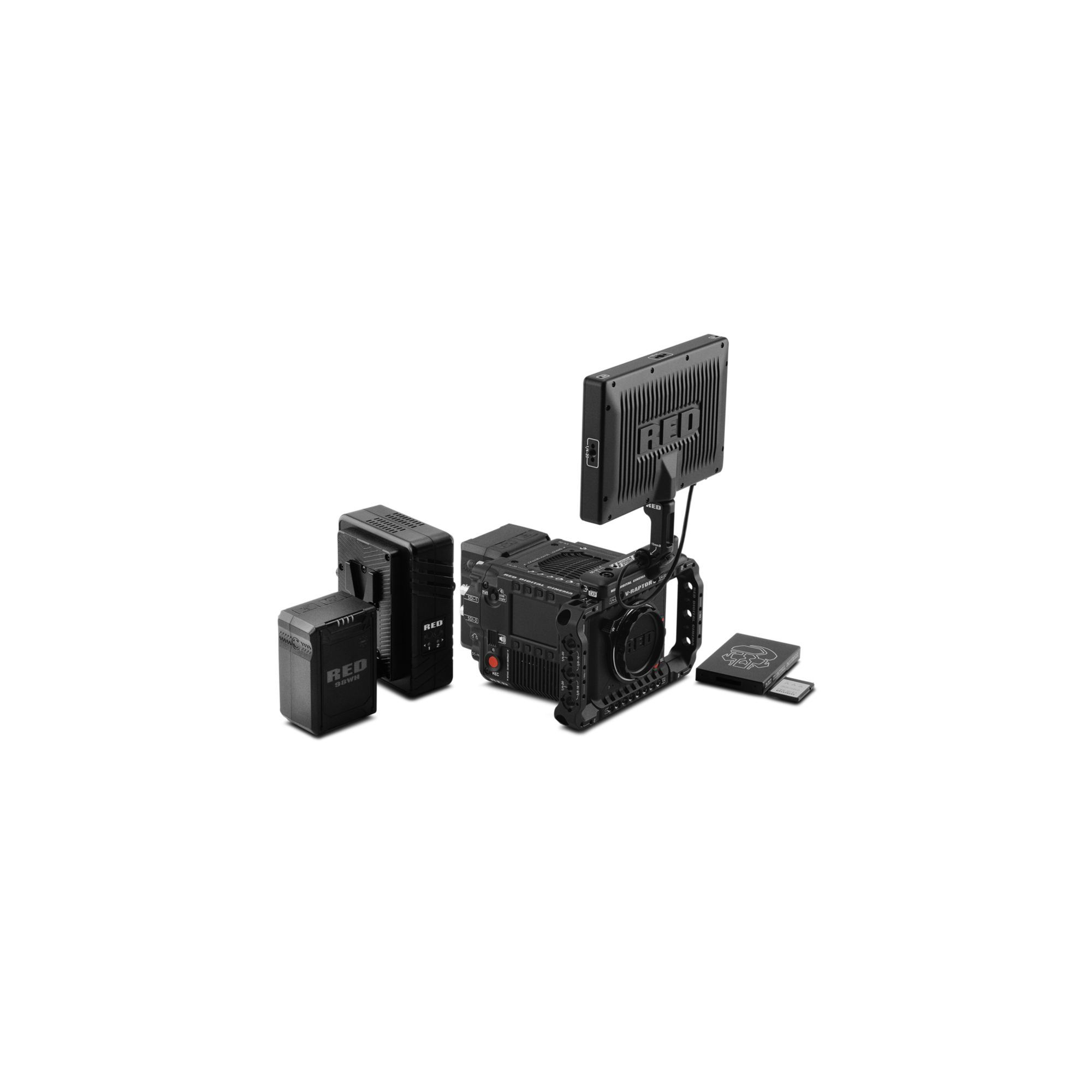

Complete with :
1x V-RAPTOR 8K S35 Camera System
1x DSMC3 RED Touch 7.0" LCD
1x RED PRO Cfexpress 2TB
1x Express card reader
2x REDVOLT MICRO-V
1x RED Compact Dual V-Lock Charger
2x V-RAPTOR Wing Grip
1x RED EXT-to-Timecode Cable 3'
V-RAPTOR Information Card (incl. Registration and support info)
2 Year Standard Warranty
