RED 720-0064

Name: RED 720-0064
Brand: RED
SKU: RED 720-0064
Price: 1182 NGN
Availability: OutOfStock

RED

RED PRO I/O Module for KOMODO-X (V-Mount) - 720-0064

go to the technical sheet

₦ 1,182.00

₦ 1,099.89 VAT excl.

Available in 15 days

: Download

Not sure if this is the right product for you? Talk to a consultant

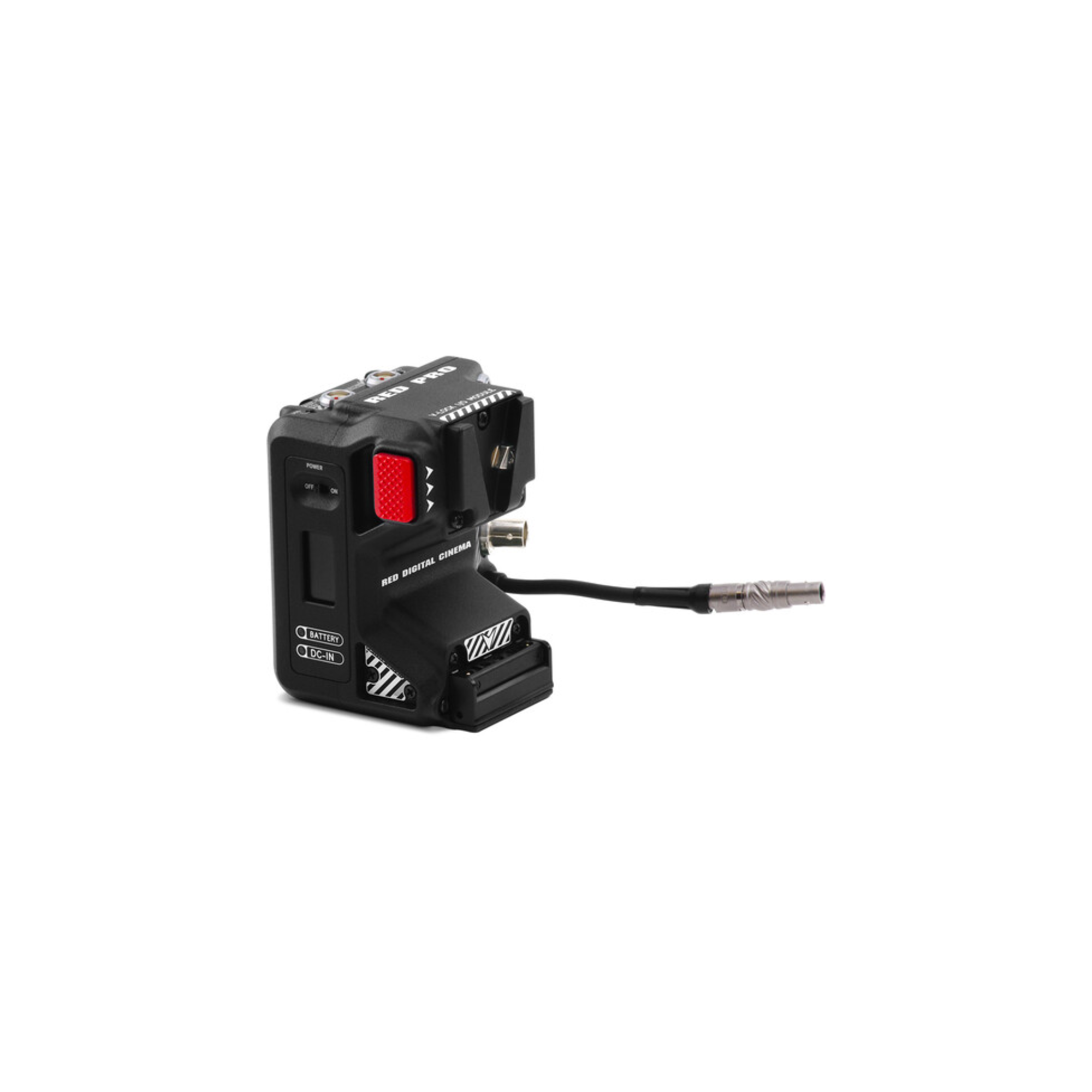

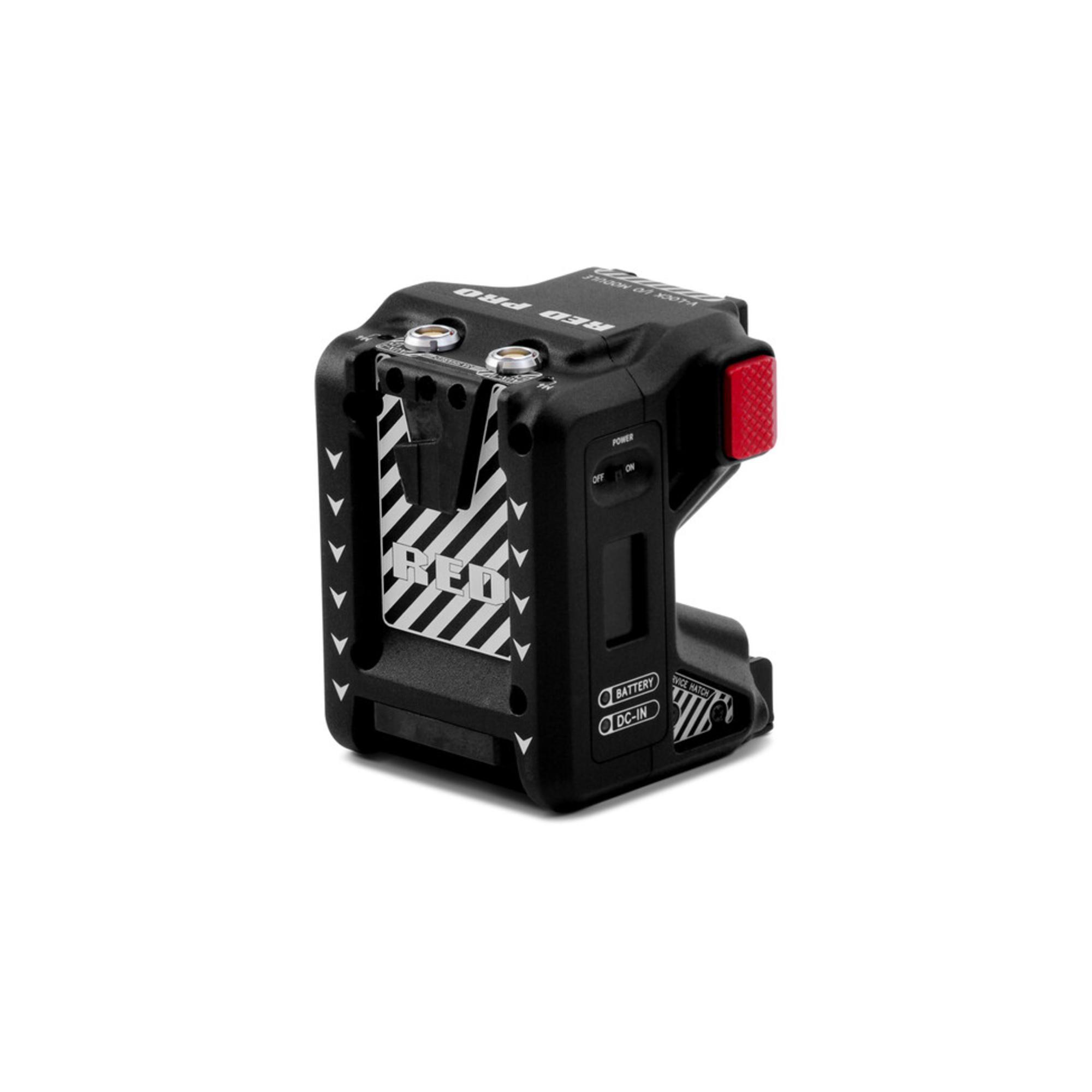

Red-Camera RED PRO I/O Module for KOMODO-X (V-Mount) - 720-0064

This RED PRO I/O Module from RED DIGITAL CINEMA provides a V-mount battery plate and additional power and communication interfaces for your KOMODO-X 6K digital cinema camera.
The V-mount module mounts directly to the KOMODO-X camera's Micro-V mount plate and 9-pin EXT port.

Compatibility: RED KOMODO-X cinema camera

Expanded Interface
- Pro video connectors include timecode in, genlock, and 4-pin control interfaces.
- The module also provides one DC power input, one regulated 24V R/S port, and two unregulated 12V AUX ports.

Status Screen
- The operator-side screen displays key voltage and battery percentage information.
- A switch enables you to cut power to the module when you want to leave a battery on for an extended length of time.

Download

Download (0)

Inputs/Outputs
________________________
Other Ports:
- EXT: 1 x 9-Pin
- Control: 1 x 4-Pin
- Timecode: 1 x 5-Pin

Wireless
________________________
Mobile App Compatible: No

Battery
________________________
Battery Chemistry: Lithium-Ion

Power
________________________
Power Output:
- 1 x 3-Pin Fischer R/S, 24 V, 3 A Max., Regulated
- 2 x 2-Pin Fischer R/S, 12 V, 3 A Combined Max., Unregulated

Physical
________________________
Mounting:
- 1x Micro V-Mount
- 1x V-Mount
Color: Black
Material of Construction: Aluminum Alloy
Operating Conditions: 32 to 104°F / 0 to 40°C
Storage Conditions: -4 to 122°F / -20 to 50°C
Dimensions: 3.9 x 3.4 x 2.8" / 98 x 85.8 x 71 mm
Weight: 14.5 oz / 410 g
