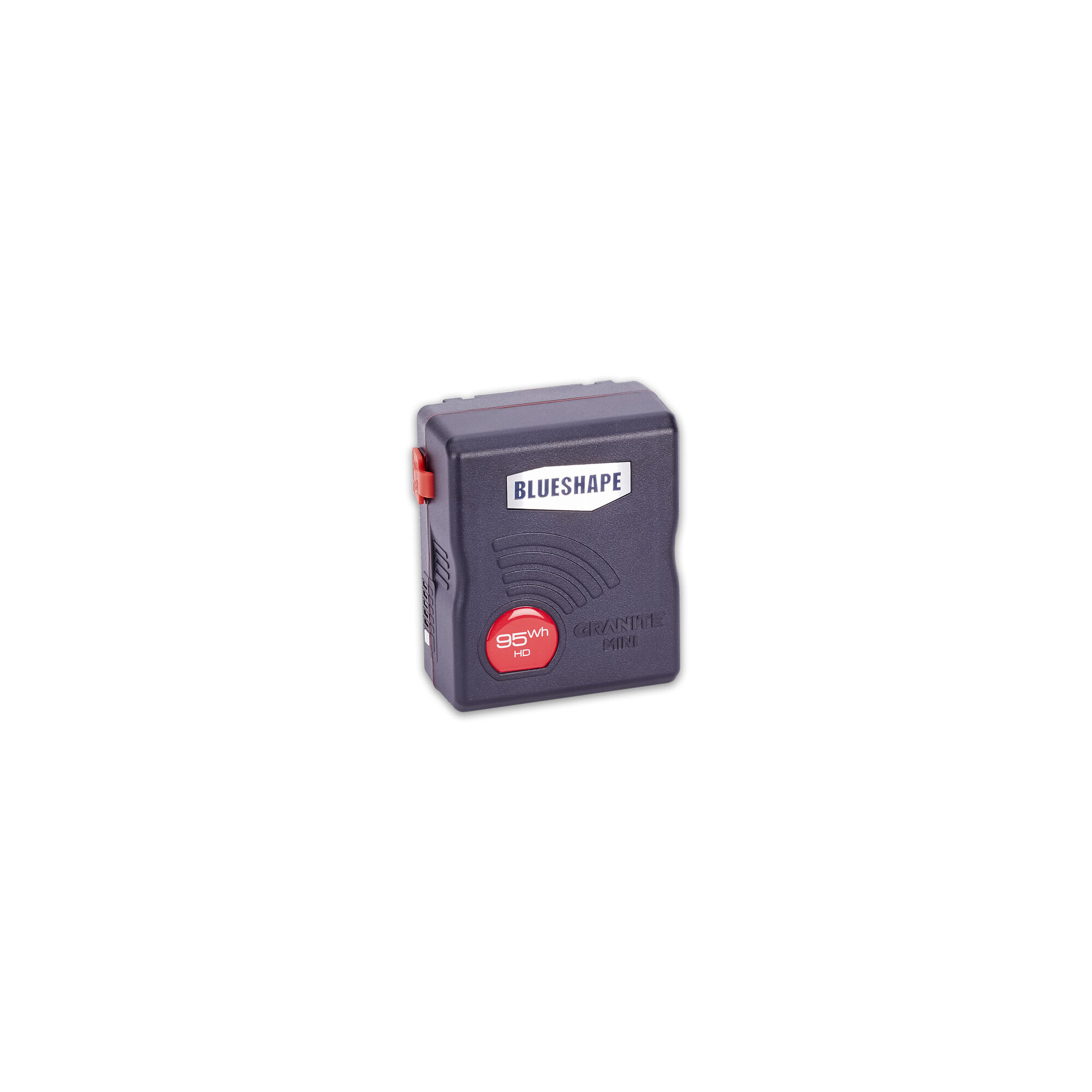

BG095HD Mini

BLUESHAPE is upgrading the GRANITE line-up, proudly introducing GRANITE MINI 3-Stud - the new series of small, compact and powerful battery packs, ideal for smaller cinema cameras, featuring the innovative and handy Wi-Fi connectivity.

This streamlined battery pack features high draw and world class Li-Ion chemistry that provides superior and long lasting electrochemical performances in a reduced core, making this battery perfect for high demanding video applications.

This battery is fully compatible with the 3-Stud standard: it can be charged correctly and with full communication on most original 3-Stud chargers available on the market. Furthermore, when it is installed on cameras enabled with fully functional 3-Stud mounts, it communicate the Relative State of charge (%) to the camera viewfinder.

Featuring a 5 LED precise gauge for accurate capacity display integrated with state-of-the-art battery safety, balancing and monitoring technology and also providing digital communication with enabled devices. Furthermore, this battery provides 2 additional power outlets through D-Tap sockets conveniently located on the battery sides, protected by rubber covers. Both outlets are directly connected to the battery terminals for maximum power on the D-Tap ports, and can also be used for immediate and intuitive charging using inexpensive AC-DC D-Tap style chargers. They can be conveniently used to power devices working at 14.4V nominal, or even USB powered gadgets and chargers through the PT-USB adapter.

No IATA restrictions, transportable in reasonable quantities in hand luggage only, or in the checked-in luggage if installed in the equipment.
BG095HDmini-details-01
LED gauge and push button for capacity check. Each LED accounts for 20% of state of charge, when steady lit, and 10% when flashing. When the capacity falls below 10% the lower (right-most) LED blinks. Press and hold the push button for at least 5sec to enable and disable the embedded Wi-Fi module.
Rubberised coloured gasket for shock absorption and water resistance improvement
Left auxiliary outputs from D-Tap sockets (14.4V nominal) directly connected to pack terminals for maximum power availability, enabled as charging inlet for usage with BLUESHAPE D-Tap chargers
High endurance rubber caps for protection of the D-Tap sockets when not in use
Right auxiliary outputs from D-Tap sockets (14.4V nominal) directly connected to pack terminals for maximum power availability, enabled as charging inlet for usage with BLUESHAPE D-Tap chargers
BG095HDmini-details-02
Outer case tightened by 8 screws for maximum toughness and case rigidity during impacts and shocks
3-Stud mount fittings
Contact block able to withstand high current draws up to 12A. It provide all the required electronics data communication with camera viewfinder and original 3-stud chargers
Robust thick-walled housing made of special plastic resin for superior impact resistance. The battery can withstand several drops from altitudes of up to 2 metres without breaking or suffering internal damage.
