Zacuto

719104357445

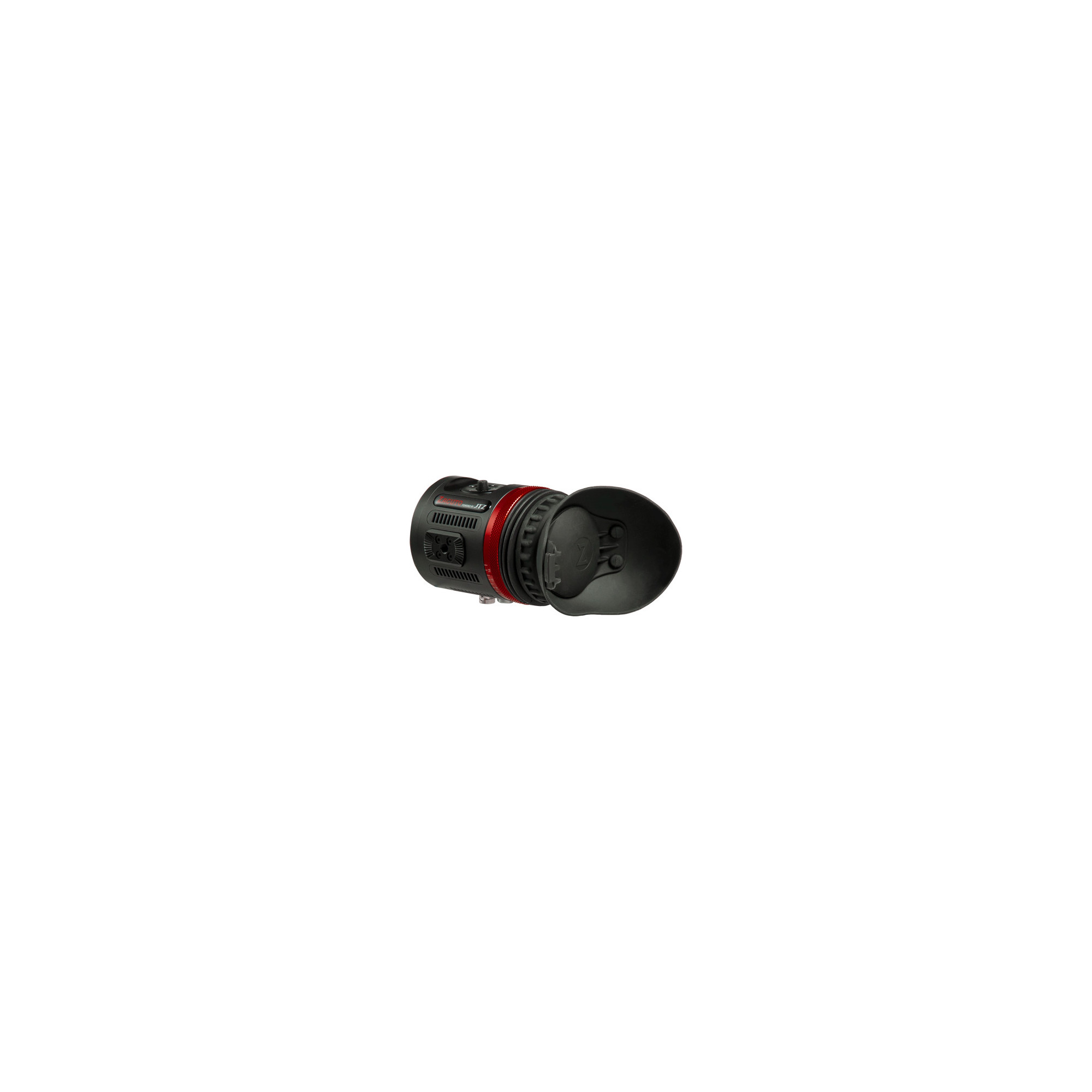

Viewfinder OLED Zacuto Kameleon EVF Pro
go to the technical sheet
€ 2.507,70

€ 2.332,74 VAT excl.

Available in 64 days
Not sure if this is the right product for you? Talk to a consultant
Zacuto's Kameleon Pro EVF micro-OLED updates the original Kameleon with both waveform and vector functions and a new display interface. Designed to accompany you through all your rig updates, Kameleon Pro is compatible with DSLR, mirrorless and cine cameras. Designed in collaboration with JTZ, this 1920 x 1080 resolution EVF supports up to DCI 4K input via HDMI and up to 1080p60 via SDI (BNC).

The Kameleon has a 4-pin Lemo power jack and a single SDI and HDMI input. Kameleon is the perfect EVF for Mirrorless and DSLR cameras and its SDI input adds versatility so you can use it on a wide variety of other cameras. Like all Zacuto EVFs, it has an integrated dioptric range from -1 to +4 and the essential anti-fog coating formula patented by Zacuto. It never tarnishes in humidity or freezing temperatures. An auto-closing eyepiece port helps prevent the display from getting sunburnt.

Additional features of Kameleon Pro EVF include 1: 1 and 4: 1 zoom ratios, selectable texture lines, freeze frame, cooling fan and audio meters. Two ARRI compatible washers with 1/4 "-20 thread allow you to mount Kameleon Pro with both sides upwards, as you prefer.




Micro-OLED Display
Dimension: 0.71" diagonal
Contrast: 10,000:1
Color depth: 24-bit RBG
6.5 million pixels for a hugely expanded
Pixel Info - 3103 PPI

Power
Power input: 7-20V
Power input port: 4 pin LEMO 0B
Power consumption: 5W

Connections
USB-C x1 for LUT imports & Firmware updates
HDMI input: 4K DCI, 4K, 1080p, 1080i, 720p
SDI input: 3G SDI, 1080p, 1080i, 720p

Physical Features:
Joystick menu/function button
Adjustable diopter ring
Drop in diopters for additional correction (+1, +2, +3, +4)
Auto Closing Eyecup
2-step anti-fog shields
Arri Rosette on both sides
Cooling fan

Software Features
Custom Scaling
Frame lines
Calibration Settings
Center marker/crosshair
Anamorphic
4:1 Zoom
Image Flip
False
Red Line Peaking
Edge Enhancement Levels 1-3 Peaking
Freeze
Zebras
Waveform
Vectorscope
Histogram
Audiometers
4 programmable hotkeys
3D LUT import
SMPTE Color Bars

General
Dimensions: 12 x 7 x 7,2 cm (4,9 "x 2,75" x 2,83 ")
Weight: 425 g (15 once)
