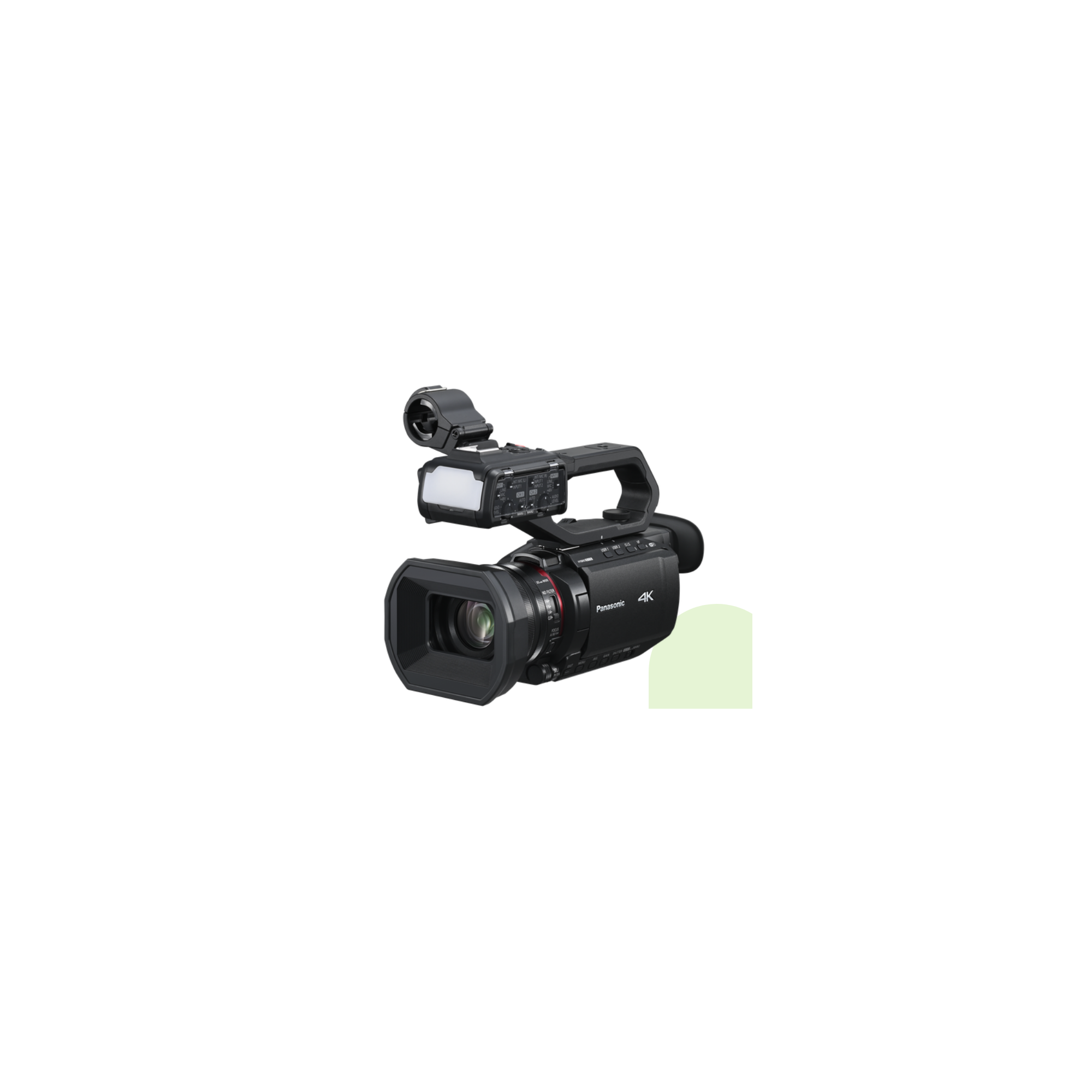

AG-CX20E
AG-CX20E
Previous keyboard_arrow_left
Next keyboard_arrow_right
AG-CX20E
AG-CX20E

AG-CX20E

Panasonic

5025232979912
Compact camcorder 4K 10 bit 60p connectivity IP P2 MXF NDI HX2 IP RTMP
go to the technical sheet
₦ 4,485,597.68

₦ 4,172,649.00 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 448,559.77
Available 9 unit in 4 Days
Datasheet: Download
Not sure if this is the right product for you? Talk to a consultant
4K 10-bit 60p compact camcorder with IP connectivity - NDI HX2 and SRT streaming.

- 25mm wide-angle lens and 24x optical zoom
- Supports SRT2, NDI® HX2, RTMP
- High-quality recording with versatile modes
- Compact, lightweight with OLED viewfinder and handle
- Dual SD card slots meet your recording needs
- Sensor type: 1/2.5"
- Zoom: 24x
- Video I/O: 3G-SDI OUT HDMI OUT

The AG-CX20 and AG-CX18 camcorders feature cutting-edge optical technology, as well as a lightweight and compact chassis design that offers greater mobility and high-quality video production.

Wide-angle zoom lens for precise shooting
The camcorders offer superior optical performance with a powerful built-in 25mm wide-angle zoom lens and 600mm telephoto zoom, with 24x optical zoom. They feature a 4-unit lens system that drives each lens group independently, as well as two manual focus rings.

Next-generation stabilization and focusing
This camcorder features optical and electronic image stabilization to detect and correct any unwanted vibrations on five axes, including rotational blur. This is particularly useful when shooting subjects from very high and low angles. It also features a very high focusing speed, stability and superior tracking performance when shooting in both 4K and FHD, and this is also thanks to the Face Detection AF/AE function that provides precise focus and exposure for subjects.

IP-based video with NDI HX2 and SRT streaming
The high-end CX20 model will also support full-HD live streaming via the next-generation IP-based SRT protocol, being able to provide simultaneous SDI/HDMI outputs. The Panasonic CX20 also supports NDI® HX2 IP connectivity for high-quality, low-latency live streaming in a network environment, without the need for external converters. The AG-CX20 supports Real-Time Messaging Protocol (RTMP), allowing live streaming directly to social media platforms and video sharing sites such as YouTube.

IR (infrared) shooting in dark places
The IR Cut filter can be switched on/off (assigned to the User button). When the filter is off, commercially available IR lights* can be used for shooting in dark places.
* Recommended: 850nm wavelength light

Compact design for superior mobility
The unique design allows heat to be dissipated from the front panel by a thin fan. This increases reliability and allows the body to be as small as possible. The CX20 includes Panasonic's VW-HU1 handle unit, which features dual-channel XLR audio input and control and a bright, adjustable LED light for low-light shooting. Users can also easily operate the lens zoom from the handle.

All the connections and formats you need
All four cameras in this product lineup support multiple bit rates and formats for a variety of requirements. When configured for 10-bit recording with an HDMI output, all models provide 4K 60p 4:2:2 output to an external recorder. All cameras support MOV, MP4 and AVCHD formats, while the CX20 supports P2 MXF workflow.

62NDK3
Tiffen

62NDK3

₦ 147,273.93 VAT included
Available in 14 days
62POL
Tiffen

62POL

₦ 81,537.68 VAT included
Available 6 unit in 4 Days
62UVP
Tiffen

62UVP

₦ 41,440.18 VAT included
Available 5 unit in 4 Days
62BLACKSATIN3
Tiffen

62BLACKSATIN3

₦ 205,753.93 VAT included
Available 3 unit in 4 Days
62CP
Tiffen

62CP

₦ 48,857.68 VAT included
Available 4 unit in 4 Days
62PTP
Tiffen

62PTP

₦ 87,611.43 VAT included
Available in 14 days
62VND
Tiffen

62VND

₦ 198,497.68 VAT included
Available 1 unit in 4 Days
Orca OR-68
Orca Bags

Orca OR-68

₦ 379,151.43 VAT included
Available 1 unit in 4 Days
Orca OR-10
Orca Bags

Orca OR-10

₦ 1,029,580.18 VAT included
Available 1 unit in 4 Days
MB PL-RL-A55
Manfrotto

MB PL-RL-A55

₦ 849,302.68 VAT included
Available in 14 days
MB PL-RL-A50
Manfrotto

MB PL-RL-A50

₦ 736,965.18 VAT included
Available in 14 days
Orca OR-29
Orca Bags

Orca OR-29

₦ 67,508.93 VAT included
Available 1 unit in 4 Days
LP37123-PWW
Lowepro

LP37123-PWW

₦ 233,327.68 VAT included
Available in 14 days
MB PL-RL-S55
Manfrotto

MB PL-RL-S55

₦ 893,162.68 VAT included
Available in 14 days
Orca OR-66
Orca Bags

Orca OR-66

₦ 311,426.43 VAT included
Available 4 unit in 4 Days
LP37119-PWW
Lowepro

LP37119-PWW

₦ 200,217.68 VAT included
Available in 14 days
Orca OR-1
Orca Bags

Orca OR-1

₦ 100,726.43 VAT included
Available in 14 days
BR-300225
ON-AIR

BR-300225

₦ 130,987.68 VAT included
Available 2 unit in 4 Days
BR-540245
ON-AIR

BR-540245

₦ 745,511.43 VAT included
Available 5 unit in 4 Days
BR-CZ1 Orange
ON-AIR

BR-CZ1 Orange

₦ 81,376.43 VAT included
Available 1 unit in 4 Days
BR-620250
ON-AIR

BR-620250

₦ 680,258.93 VAT included
Available 2 unit in 4 Days
BR-235105
ON-AIR

BR-235105

₦ 78,903.93 VAT included
Available 1 unit in 4 Days
BR-300 HDD
ON-AIR

BR-300 HDD

₦ 145,607.68 VAT included
Available 7 unit in 4 Days
BR-750280S
ON-AIR

BR-750280S

₦ 735,298.93 VAT included
Available 1 unit in 4 Days
BR-620340
ON-AIR

BR-620340

₦ 784,426.43 VAT included
Available 1 unit in 4 Days
Orca OR-132
Orca Bags

Orca OR-132

₦ 789,102.68 VAT included
Available 1 unit in 4 Days
BR-235155
ON-AIR

BR-235155

₦ 249,936.43 VAT included
Available 0 unit
BR-430290
ON-AIR

BR-430290

₦ 379,366.43 VAT included
Available 1 unit in 4 Days
BR-500350
ON-AIR

BR-500350

₦ 583,562.68 VAT included
Available 5 unit in 4 Days
MVKBFRL-LIVE
Manfrotto

MVKBFRL-LIVE

₦ 492,993.93 VAT included
Available 1 unit in 4 Days
MVK502AM-1
Manfrotto

MVK502AM-1

₦ 1,197,280.18 VAT included
Available 1 unit in 4 Days
MVMXPROC5
Manfrotto

MVMXPROC5

₦ 609,255.18 VAT included
Available 1 unit in 4 Days
MK290XTA3-3W
Manfrotto

MK290XTA3-3W

₦ 456,282.68 VAT included
Available in 14 days
MVH502A546BK-1
Manfrotto

MVH502A546BK-1

₦ 1,722,793.93 VAT included
Available 1 unit in 4 Days
LX7
Libec

LX7

₦ 1,219,908.93 VAT included
Available 1 unit in 4 Days
MVK612TWINMC
Manfrotto

MVK612TWINMC

₦ 2,549,415.18 VAT included
Available in 14 days
MK290LTA3-V
Manfrotto

MK290LTA3-V

₦ 395,598.93 VAT included
Available 1 unit in 4 Days
FDF2382WT-BK
Eizo

FDF2382WT-BK

₦ 2,172,143.93 VAT included
Available in 24 days
ez-SHV+
Lumantek

ez-SHV+

₦ 470,687.68 VAT included
Available 4 unit in 4 Days
BAT-AS
Lumantek

BAT-AS

₦ 484,017.68 VAT included
Available in 14 days
ez-sh
Lumantek

ez-sh

₦ 205,108.93 VAT included
Available 8 unit in 4 Days
BAT-SH
Lumantek

BAT-SH

₦ 413,766.43 VAT included
Available in 14 days
BAT-3HS
Lumantek

BAT-3HS

₦ 413,766.43 VAT included
Available 3 unit in 4 Days
BAT-SD
Lumantek

BAT-SD

₦ 543,518.93 VAT included
Available in 14 days
LP37170-PWW
Lowepro

LP37170-PWW

₦ 419,786.43 VAT included
Available in 14 days
MB PL-RL-H55
Manfrotto

MB PL-RL-H55

₦ 886,712.68 VAT included
Available 1 unit in 4 Days
Orca OR-26
Orca Bags

Orca OR-26

₦ 1,079,567.68 VAT included
Available in 14 days
Orca OR-21
Orca Bags

Orca OR-21

₦ 874,833.93 VAT included
Available in 14 days
LP37056-0WW
Lowepro

LP37056-0WW

₦ 137,867.68 VAT included
Available in 24 days
LP37229-PWW
Lowepro

LP37229-PWW

₦ 419,786.43 VAT included
Available in 14 days
LP36892-PWW
Lowepro

LP36892-PWW

₦ 198,981.43 VAT included
Available in 14 days
K 52
AKG

K 52

₦ 179,497.39 VAT included
Available 2 unit in 4 Days
K 72
AKG

K 72

₦ 168,972.88 VAT included
Available 1 unit in 4 Days
K 92
AKG

K 92

₦ 112,702.80 VAT included
Available 3 unit in 4 Days
MDR-75061
Sony

MDR-75061

₦ 284,013.93 VAT included
Available in 14 days
NTG-2
Rode

NTG-2

₦ 506,915.18 VAT included
Available 2 unit in 4 Days
ECM-MS2
Sony

ECM-MS2

₦ 620,596.43 VAT included
Available 1 unit in 4 Days
ECM-678
Sony

ECM-678

₦ 2,090,228.93 VAT included
Available in 14 days
NTG-3 Black
Rode

NTG-3 Black

₦ 1,445,658.93 VAT included
Available in 14 days
ECM-44B
Sony

ECM-44B

₦ 650,105.18 VAT included
Available 0 unit
NTG-4
Rode

NTG-4

₦ 580,015.18 VAT included
Available 2 unit in 4 Days
NTG-1
Rode

NTG-1

₦ 485,522.68 VAT included
Available 1 unit in 4 Days
AG-MC200G
Panasonic

AG-MC200G

₦ 937,452.68 VAT included
Available 2 unit in 4 Days
NTG-3
Rode

NTG-3

₦ 1,445,658.93 VAT included
Available 1 unit in 4 Days
ECM-680S
Sony

ECM-680S

₦ 2,445,677.68 VAT included
Available in 14 days
NTG-5
Rode

NTG-5

₦ 1,178,628.93 VAT included
Available 1 unit in 4 Days
NTG-4 PLUS
Rode

NTG-4 PLUS

₦ 621,510.18 VAT included
Available in 14 days
UWP-D26K21
Sony

UWP-D26K21

₦ 1,589,278.93 VAT included
Available in 14 days
UWP-D22K33
Sony

UWP-D22K33

₦ 1,187,390.18 VAT included
Available 1 unit in 4 Days
UWP-D26K33
Sony

UWP-D26K33

₦ 1,598,470.18 VAT included
Available in 14 days
UWP-D27K33
Sony

UWP-D27K33

₦ 2,299,585.18 VAT included
Available 2 unit in 4 Days
UWP-D21K33
Sony

UWP-D21K33

₦ 1,190,453.93 VAT included
Available 1 unit in 4 Days
UWP-D22K42
Sony

UWP-D22K42

₦ 1,187,390.18 VAT included
Available in 14 days
UWP-D21K21
Sony

UWP-D21K21

₦ 1,190,453.93 VAT included
Available 1 unit in 4 Days
UWP-D27K21
Sony

UWP-D27K21

₦ 2,299,585.18 VAT included
Available 1 unit in 4 Days
UWP-D21K42
Sony

UWP-D21K42

₦ 1,190,453.93 VAT included
Available in 14 days
UWP-D26K42
Sony

UWP-D26K42

₦ 1,598,470.18 VAT included
Available in 14 days
UWP-D22K21
Sony

UWP-D22K21

₦ 1,187,390.18 VAT included
Available 1 unit in 4 Days
Pearl MINI
Epiphan

Pearl MINI

₦ 8,250,140.18 VAT included
Available in 11 days
Orca OR-48
Orca Bags

Orca OR-48

₦ 1,803,096.43 VAT included
Available in 14 days
UVC-02
Roland

UVC-02

₦ 548,517.68 VAT included
Available 3 unit in 4 Days
U-TAP-SDI-R0
AJA

U-TAP-SDI-R0

₦ 959,006.43 VAT included
Available 1 unit in 4 Days
U-TAP-HDMI-R0
AJA

U-TAP-HDMI-R0

₦ 959,006.43 VAT included
Available 1 unit in 4 Days
ZC-LP
Libec

ZC-LP

₦ 170,547.68 VAT included
Available 4 unit in 4 Days
VZ-Rock
Varizoom

VZ-Rock

₦ 322,068.93 VAT included
Available 0 unit
SF-64TG
Sony

SF-64TG

₦ 197,100.18 VAT included
Available 14 unit in 4 Days
SF-G2M
Sony

SF-G2M

₦ 248,108.93 VAT included
Available 2 unit in 4 Days
QRS-AGCX10
Portabrace

QRS-AGCX10

₦ 367,810.18 VAT included
Available in 24 days
S-2070
Swit

S-2070

₦ 158,830.18 VAT included
Available 1 unit in 4 Days
Shogun Classic
Atomos

Shogun Classic

₦ 2,455,890.18 VAT included
Available 1 unit in 4 Days
S-3602D
Swit

S-3602D

₦ 227,146.43 VAT included
Available 2 unit in 4 Days
D-XLR
Deity

D-XLR

₦ 53,695.18 VAT included
Available 2 unit in 4 Days
FLOW500
Swit

FLOW500

₦ 1,455,548.93 VAT included
Available in 11 days
AG-VBR59EC
Panasonic

AG-VBR59EC

₦ 335,775.18 VAT included
Available 1 unit in 4 Days
UV-C BOXER
Cartoni

UV-C BOXER

₦ 17,204,191.43 VAT included
Available in 14 days

Download

Datasheet

Download (14.74MB)

Imaging
Sensor Resolution: Effective: 8.29 Megapixel
Image Sensor: 1/2.5"-Type MOS
Image Stabilization: Optical in Integrated Lens
Built-In ND Filter: Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type: Stills & Video

Exposure Control
Shutter Type: Electronic Rolling Shutter
Shutter Speed: 1/8000 to 1/24 Second
ISO/Gain Sensitivity: Gain: 0 to 30 dB dB
Minimum Illumination: 1.5 Lux at 1/30 Shutter Speed and f/1.8 Aperture
White Balance:
- Range: 2000 to 15,000K
- Presets: ATW, VAR

Lens
Focal Length: 4.12 to 98.9mm (35mm Equivalent: 25 to 600mm)
Optical Zoom Ratio: 24x
Max Digital Zoom: 10x
Maximum Aperture: f/1.8
Minimum Focus Distance: From Front of Lens: 3.9" / 10 cm
Filter Size: 62 mm
Control Rings:
- Focus
- Zoom
- Iris
Focus Control: Autofocus | Manual Focus

Video Capture
Internal Recording:
AVCHD 4:2:0 8-Bit
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [17 to 25 Mb/s]
1280 x 720 at 50/59.94 fps [8 Mb/s]
H.264 Long GOP/MOV 4:2:0 10-Bit
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 200 Mb/s]
H.265 Long GOP/MP4 4:2:0 10-Bit
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [72 to 100 Mb/s]
H.265 Long GOP/MP4 4:2:0 8-Bit
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [72 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [50 Mb/s]
MOV 4:2:2 10-Bit
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [150 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [50 to 200 Mb/s]
MOV 4:2:0 8-Bit
3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 150 Mb/s]
P2 4:2:2 10-Bit
1920 x 1080p at 50/59.94 fps [25 to 50 Mb/s]
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps [25 Mb/s]
P2 4:2:0 8-Bit
1920 x 1080p at 50/59.94 fps [24 Mb/s]
1920 x 1080i at 50/59.94 fps [12 Mb/s]
1280 x 720 at 50/59.94 fps [12 Mb/s]
Video Output:
4:2:2 10-Bit via HDMI
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
720 x 576p at 50 fps
720 x 480p at 59.94 fps
4:2:2 10-Bit via SDI/BNC
1920 x 1080p at 12.50/23.98/25/29.97/59.94 fps
1920 x 1080i at 50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1280 x 720 at 50/59.94 fps
Fast-/Slow-Motion Support: Yes
Built-In Microphone: Stereo
Audio Recording:
MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: 2-Channel 16-Bit 48 kHz AAC Audio
AVCHD: 2-Channel 16-Bit 48 kHz AC-3 Audio
P2: 2-Channel 24-Bit 48 kHz LPCM Audio
P2: 2-Channel 16-Bit 48 kHz LPCM Audio
IP Streaming:
H.264, RTMP, RTMPS, RTP, RTSP
320 x 180 to 1920 x 1080 (0.5 to 24.00 Mb/s)
H.264, NDI|HX2
1280 x 720 to 1920 x 1080 at 25p, 30p, 50p, 60p (2.0 to 24.00 Mb/s)

Interface
Media/Memory Card Slot: Dual Slot: SD/SDHC/SDXC/microP2 Hybrid
Video I/O:
- 1 x HDMI 2.0 Output
- 1 x BNC (3G-SDI) Output
Audio I/O:
- 2x XLR 3-Pin Input on Included Handle
- 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body
- 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O: 1x USB-C (9VDC at 3 A) Input
Other I/O:
- 1x 2.5 mm Sub-Mini (Remote)
- 1x USB-C (USB 2.0)
Wireless: Wi-Fi
Mobile App Compatible: Yes: Android & iOS
Global Positioning (GPS, GLONASS, etc.): No

Monitor
Display Type: Primary Monitor: Articulating 3.5" Touchscreen LCD
Resolution: Primary Monitor: 2,760,000 Dot

Viewfinder
Type: Electronic (OLED)
Resolution: 2,360,000 Dot

Focus
Focus Mode: Automatic, Manual Focus

Power
Battery Type: Panasonic AG-VBR Series
Power Consumption: less than or equal to 19.5 W

Environmental
Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 80% Humidity

General
Shoe Mount:
- 1x Cold Shoe on Included Handle
- 1x Cold Shoe
Tripod Mounting Thread: 1/4"-20 Female
Accessory Mounting Thread: 1x 1/4"-20 on Included Handle
Built-In Video Light: Yes
Dimensions: 10.5 x 6.3 x 5.1" / 267 x 159 x 129 mm (With Handle, Included Battery, Included Lens Hood)
Weight:
- 1.87 lb / 0.85 kg (Body Only)
- 3.3 lb / 1.5 kg (With Battery, Handle)

1x AG-CX20E Camera
1x Rechargeable Battery Pack 5900mA
1x Detachable Handle Unit
1x Microphone Holder
2x Microphone Holder Screws
1x Lens Hood

Other products in the same category

Previous
Next
XA70
Canon

XA70

UHD 4K30 Camcorder with Dual-Pixel Autofocus - Mini-HDMI
₦ 3,895,046.43 VAT included
Available 2 unit in 4 Days
AG-CX370EJ
Panasonic

AG-CX370EJ

4K Camcorder 1" 20x Sensor, 4-Channel Audio Inputs and GENLOCK + 12G-SDI Output
₦ 6,804,318.93 VAT included
Available 4 unit in 4 Days
XA75
Canon

XA75

UHD 4K30 Camcorder with Dual-Pixel Autofocus - HDMI & 3G-SDI
₦ 5,364,947.68 VAT included
Available 0 unit
XF605
Canon

XF605

Camcorder 4K UHD/50P 4:2:2 10 bit sensor CMOS 1.0" HDR 12G-SDI
₦ 8,558,235.18 VAT included
Available 1 unit
XA65
Canon

XA65

Professional UHD 4K 1/2.3" CMOS Sensor, Zoom 20x HDMI & 3G-SDI
₦ 4,235,606.43 VAT included
Available 1 unit in 4 Days
HXR-NX800B
Sony

HXR-NX800B

Camcorder with 1" Exmor RS CMOS sensor, 20x optical zoom, HDMI video output
₦ 6,402,806.43 VAT included
Available in 19 days
LEGRIA HF G70
Canon

LEGRIA HF G70

4K video camera with 1 / 2.3 "CMOS sensor - 20x zoom - HDMI and 3G-SDI
₦ 1,780,951.43 VAT included
Available in 14 days
XF605 - Soft bag kit - Canon
Canon

XF605 - Soft bag kit - Canon

format XF-HEVC 4K UHD/50P 4:2:2 10 bit - Kit with soft bag , card and battery
₦ 9,614,153.93 VAT included
Available
XF605 - backpack kit - Canon
Canon

XF605 - backpack kit - Canon

format XF-HEVC 4K UHD/50P 4:2:2 10 bit - Kit with backpack , card and battery
₦ 9,641,727.68 VAT included
Available
VenusLiv Air
Hollyland

VenusLiv Air

All-in-One Live Streaming Camera, 1/1.3" CMOS Sensor, 50MP Resolution
₦ 933,862.67 VAT included
Available in 19 days
  • New
