ez-SHV+

Name: ez-SHV+
Brand: Lumantek
SKU: ez-SHV+
Price: 271.04 EUR
Availability: InStock

Lumantek

SDI to HDMI Converter/scaler with Display

go to the technical sheet

€ 271,04

€ 252,13 VAT excl.

Available 10 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

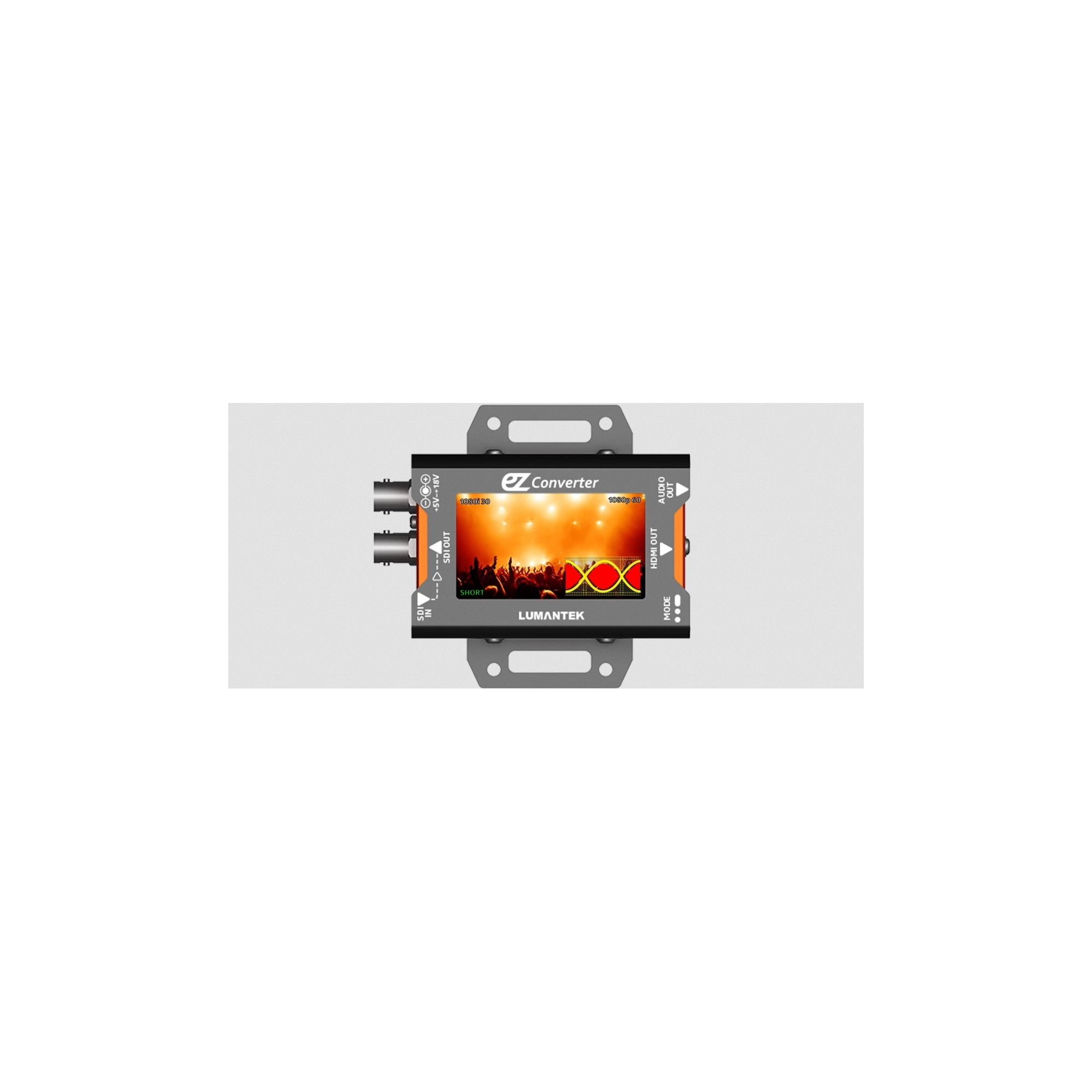

SDI to HDMI Converter with Display
You can easy to monitor in/output resolution, cable length and eye-pattern at once. LUMANTEK's ez-SHV+ has a SDI LOOP output. Through the LCD screen, you can monitor incoming video. By using the 'dip switch', you can select the resolution from 480i to 1080p. You can also control the LCD Brightness and screen ratio.
Through the 2.7 inch TFT LCD screen, you can monitoring Eye-Pattern, In/output source resolution, and Cable length at immediately.
ez-SHV+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'
The Maximum power consumption of ez-SHV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity. ez-SHV+ has a wall mount option. You can alternative choose to set up at wall or not by changing side bracket.
ez-SHV+ detects cable length automatically up to 190 m at 3G-SDI. Cable length will be shown as 'SHORT', 'MEDIUM' and 'LONG'.

Cables & Connectors Converters

Teradek

Bolt D-TapLemo Cable

€ 128,83 VAT included

Available in 14 days

Lumantek

ez-SHV+ connector

€ 35,53 VAT included

Available 4 unit in 4 Days

Data Input
SDI Video Input SD/HD/3G-SDI (BNC 75Ohm) x1

Video Formats
[email protected]/60
720x576i@ 50
1280x720p@ 50/59.94/60
1920x1080i@ 50/59.94/60
1920x1080p@ 23.94/24/25/29.97/30
1920x1080p@ 50/59.94/60

Data Output
SDI LOOP Output SD/HD/3G-SDI (BNC 75Ohm) x1
Audio Output Stereo Jack x1
HDMI Video Output SD/HD/3G (HDMI Type A) x1

Video Formats
720x480i@ 59.94 (DIP SW : 1111)
720x576i@ 50 (DIP SW : 0111)
1280x720p@ 50 (DIP SW : 1011)
1280x720p@ 59.94 (DIP SW : 0011)
1280x720p@ 60 (DIP SW : 1101)
1920x1080i@ 50 (DIP SW : 0101)
1920x1080i@ 59.94 (DIP SW : 1001)
1920x1080i@ 60 (DIP SW : 0001)
1920x1080p@ 23.98 (DIP SW : 1110)
1920x1080p@ 24 (DIP SW : 0110)
1920x1080p@ 25 (DIP SW : 1010)
1920x1080p@ 29.97 (DIP SW : 0010)
1920x1080p@ 30 (DIP SW : 1100)
1920x1080p@ 50 (DIP SW : 0100)
1920x1080p@ 59.94 (DIP SW : 1000)
1920x1080p@ 60 (DIP SW : 0000)

Connections
Power DC Power Input (DC Jack) x1
DIP Switch (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, LCD Brightness
MODE (Push Switch) x 1 LCD ON/OFF, Menu Selection
Display : 2.7 inch TFT LCD

Input Video Display, Input SDI Eye Pattern,
In/Output Video Resolution Display, Input Cable Length

Electrical
Power Input DC + 5V to + 18V
Power Consumption 3W (max.)
