Pearl MINI

Epiphan Pearl-2 and Pearl Mini are the easiest video encoder and all-in-one video production systems for live event production, lecture capture, corporate communications, training, and much more.

The ultimate system for maximum versatility with multi-encoding, multi-streaming, recording, custom layouts, switching, and more - all in the box.

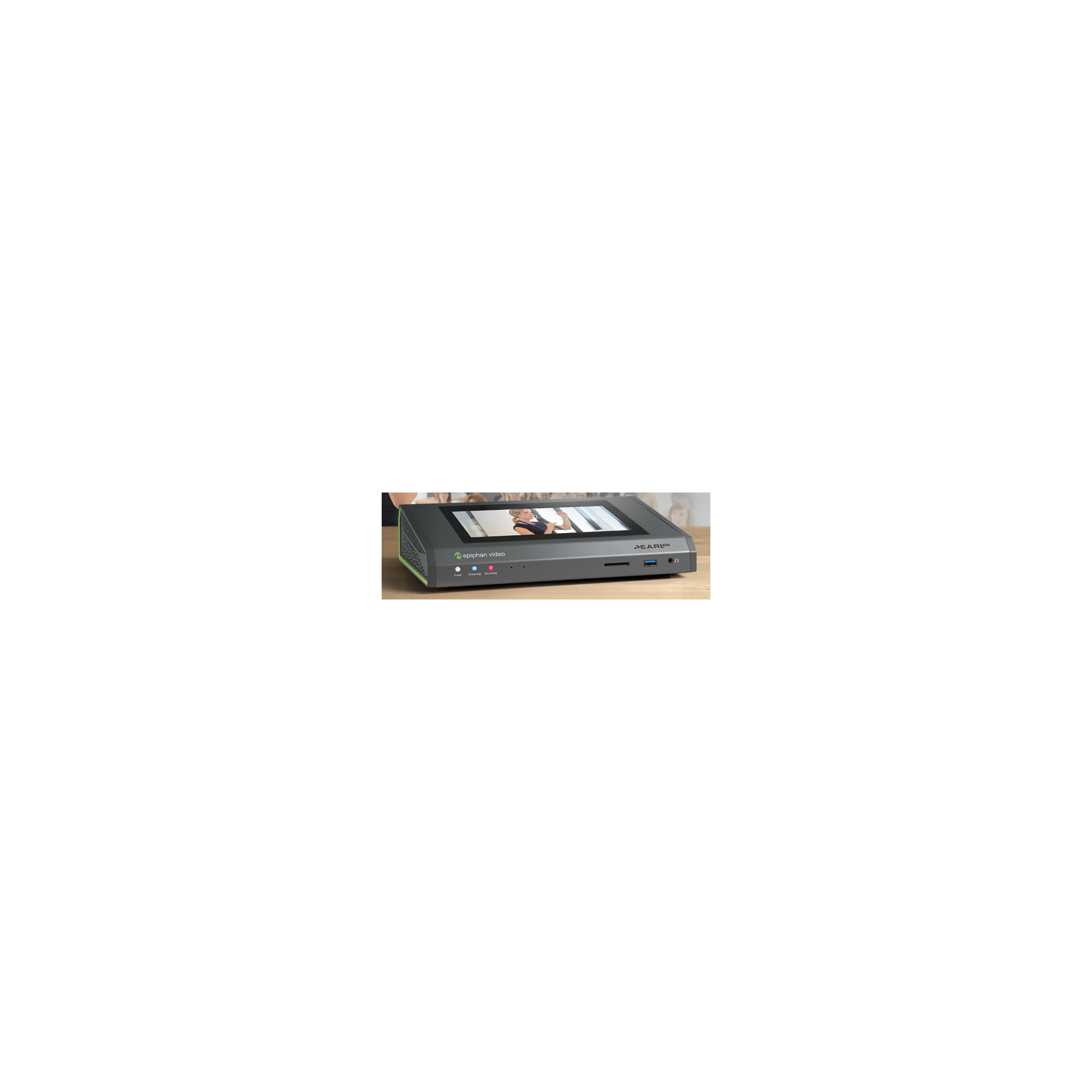

The Epiphan Pearl Mini Live Video Production System lets you switch, record, and stream up to two HD video inputs. This touchscreen-operated device will fit right into classrooms, lecture halls, houses of worship, or any other situation that requires simple switching operations with the capacity to record and stream content live.

On the rear panel, SDI and HDMI inputs are available for cameras, playback devices, and computers; no scaling or scan-conversion is necessary. For audio, combo jacks support XLR microphones and 1/4" TRS connections. 3.5mm microphone and stereo RCA line inputs are available as well. An HDMI output can be used to monitor any video input or the switched program.

Built-in, hardware-accelerated encoding happens in real time for streaming and recording. A choice of formats is available to match your workflow for streaming to popular CDNs or recording to an SD card. After recording to the card, you have the option of copying the recording to an attached USB drive.
Custom Layout Designer
Design your own custom layouts, including picture-in-picture and image overlays, using the drag-and-drop editor in Pearl Mini's web-based Admin panel. Combine, crop, and scale up to two HD video sources. Add overlay images, text, timestamping, and more.
Professional Audio Connections
Use the mic-level XLR and 3.5mm inputs, or line-level TRS and RCA inputs. Built-in attenuation and gain adjustment are available for fine-tuning your sound.
Stream to Popular CDNs
Simultaneously stream live to YouTube, Facebook or any other content delivery network or content management system. At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes.
Switch Video Sources Live
Using the touchscreen, switch between connected video sources with ease. Alternatively, use the web-based Epiphan Live to do switching from your phone or tablet.
Record 1080p Full HD Programming
The Pearl Mini's hardware-accelerated encoder provides real-time H.264 encoding for maximum performance. Record as produced program out or as individual ISOs.
Local Video Output
Send your content to front-of-house or to a larger confidence monitor with Pearl Mini's HDMI video output. This output can be configured to mirror any input or show the switched program output.
Web-Based Monitoring and Admin
Using Epiphan Live, you can monitor video sources and control live switching with a compatible touchscreen device. As long as your device is connected to the same local network, you can maintain control over your program while away from the Pearl Mini.
Networked and Removable Storage
An SD card slot on the front panel allows for quick handoffs of recorded footage. You can also configure automatic file transfer to a connected USB drive or to a network drive using SFTP, FTP, RSYNC, SCP, or CIFS.
One-Touch Operation
The simplified touchscreen interface is intuitive, and can be set up to start streaming or recording with one touch. This function can come in handy if inexperienced volunteers are required to operate video equipment.
