BAT-SD

Name: BAT-SD
Brand: Lumantek
SKU: BAT-SD
Price: 499766 NGN
Availability: OutOfStock

Lumantek

1x6 HD/SD-SDI Distributor

go to the technical sheet

₦ 499,766.00

₦ 464,899.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

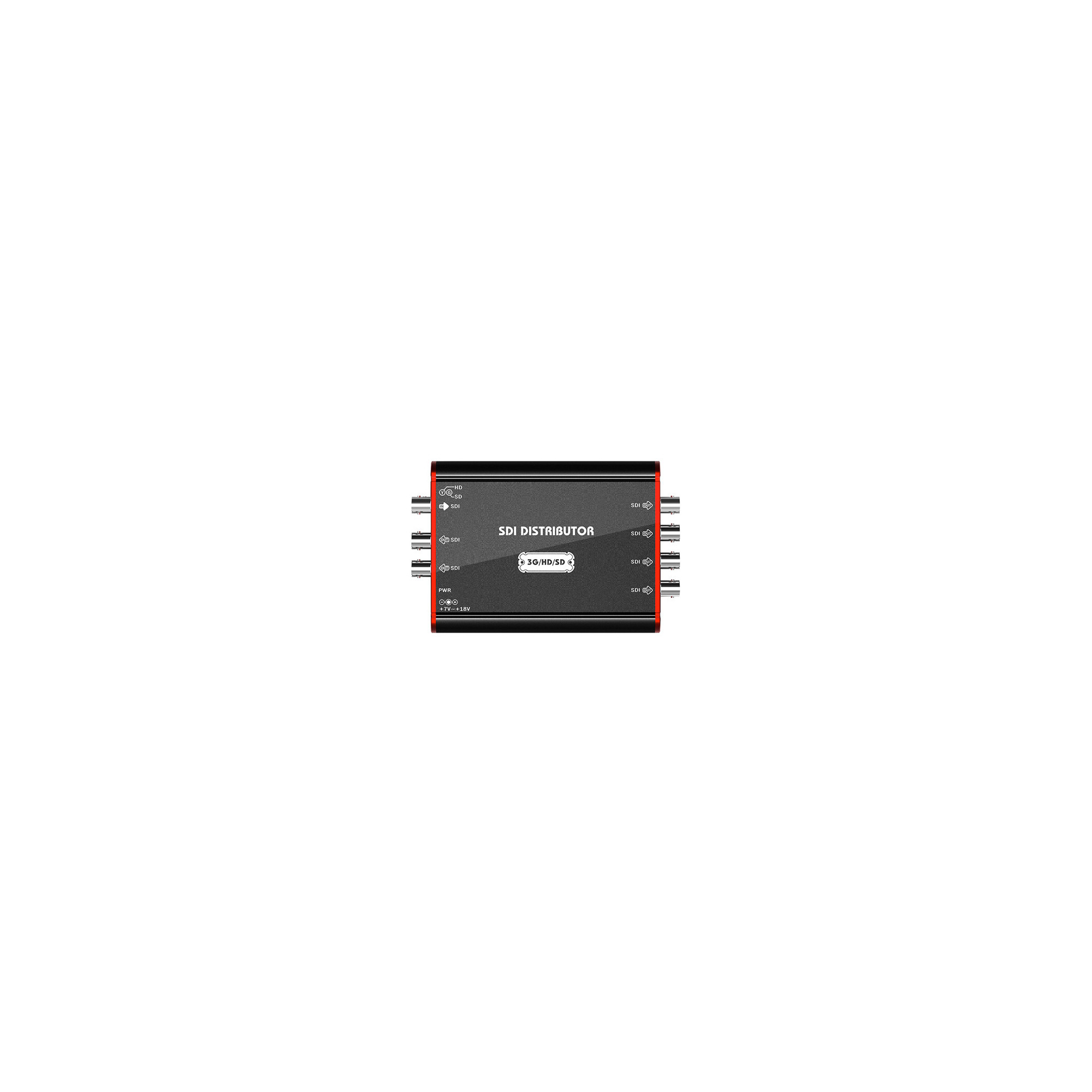

The 1x6 HD/SD-SDI Distributor from Lumantek distributes a single SDI signal to six SDI devices simultaneously. Each output is reclocked for long signal strength.

Supports 3G/HD/SD-SDI signal
Wide-range power input
Low power consumption

Cables & Connectors

Teradek

Bolt D-TapLemo Cable

₦ 200,379.00 VAT included

Available 1 unit in 4 Days

Lumantek BAT-SD Specs
Input 1 x BNC, SDI (75 Ohms)
Output 6 x BNC, SDI (75 Ohms)
Input Cable Length 3G-SDI: 509'' / 155 m
HD-SDI: 558'' / 170 m
SD-SDI: 820'' / 250 m
Rise/Fall Time 3G-SDI: 100 ps
HD-SDI: 100 ps
SD-SDI: 600 ps
Video Output Voltage 720 to 880 mVpp
Typical: 800 mVpp
Overshoot -10 to 10%
Input Power 7 to 18 VDC
Power Consumption >2 W
Dimensions 5.2 x 3.9 x 1.1" / 13.1 x 9.9 x 2.8 cm
Weight 13 oz / 370 g
