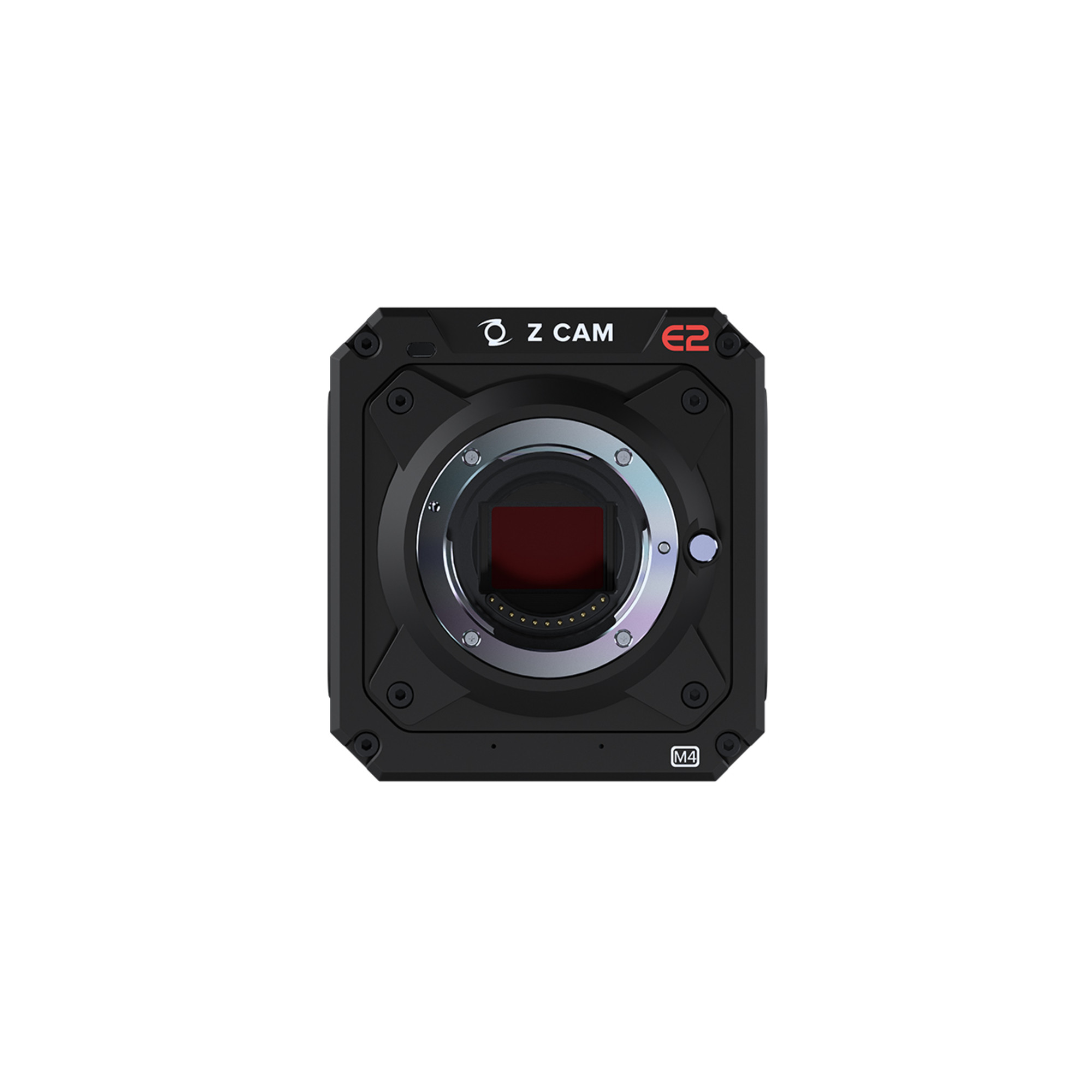

Z-CAM E2-M4
Z Cam
₦ 2,813,499.00 VAT excl.
The Z-CAM E2-M4 Professional 4K Cinema Camera features an interchangeable Micro Four Thirds lens mount, a Flagship Series housing, and like all Z-CAM E2s with the latest update, the ability to record ProRes RAW using select Atomos recorder/monitors. This compact camera records DCI and UHD 4K at up to 160 fps, as well as HD up to 240 fps, and records to a Cfast 2.0 card (not included). A future update will enable the E2-M4 to will support RTMP, RTPS, and SRT live streaming directly from the camera without requiring a computer. The camera features a 4/3" sensor with 10/12-bit color support and nominal 13 stops of dynamic range with 16 stops when set to WDR. The camera supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.
The E2-M4 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, an Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. Power the E2-M4 camera from a separately available L-series battery or AC adapter.
Note:
An AC power supply or battery is not included.
ProRes RAW
Will support 12-bit ProRes RAW recording over HDMI when used with select Atomos recorder/monitors.
Interchangeable Micro Four Thirds Mount
The included MFT mount can be swapped out for separately available ARRI PL or Leica M lens mounts, giving you access to a wide array of lenses.
Direct Streaming from Camera
Will support RTMP, RTPS, and SRT live streaming directly from the camera without requiring a computer.
4K Capture and Recording
Records DCI/UHD 4K up to 160 fps or 1080p up to 240 fps, to the limit of your recording media's capacity
Triple native ISO 80/160/800
13 stops of dynamic range using Zlog, and 16 stops of dynamic range in WDR mode
Built-in multi-frame noise reduction technology to produce clean footage
H.265 (10-bit color) internal recording on Cfast 2.0 card
10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported
Video output through HDMI 2.0 is supported (up to DCI 4K at 60 fps, 10-bit color, YUV 422)
Full metal housing for efficient heat dissipation
Interfaces and Expandability
USB Type-C port for live view and control via iOS device with Z Camera app installed
The USB Type-C port can also be used for external SSD recording
Ethernet port for live view, control, and file transfer to browser or computer running Z CAM software
HTTP API and SDK are also available
COM (RS232) port supports UART protocol
LANC port for remote control including power on/off
iOS App
Z Camera is a mobile application for camera live preview and control through Wi-Fi/USB cable connection. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on-camera live preview. It can be downloaded from the Apple App Store.
Camera Body
Made from aluminum for strength and heat dissipation
Nine threaded mounting holes around the outside chassis
Sensor plane marking for accurate distance measurements
Powers from separately available AC/DC adapter or L-series batteries
Active, interchangeable MFT mount
In the Box
Z CAM E2-M4 Professional 4K Cinema Camera (Micro Four Thirds)
LEMO Power Cable to D-Tap
Lens Mount Cap
28mm T15 FF Canon EF
35mm T15 FF Canon EF
CP.3 7-Lens Set
135mm T2 FF Canon EF
CN-E 70-200mm T4.4 L IS KAS S
CN-E 50mm T1.3 FP X SUMIRE
CP.3 5-Lens Set
18-35mm T2 Canon EF
9mm t2.9 Zero-D M43 Cine
40mm T15 FF Canon EF
50mm T15 FF Canon EF
CN-E 135mm T2.2 FP X SUMIRE
CP.3 8-Lens Set
CN-E EF 24mm T1.5 M
CN-E 20mm T1.5 FP X SUMIRE
24-35mm T2.2 FF Canon EF
CN-E 35mm T1.5 FP X SUMIRE
CP.3 6-Lens Set
50-100mm T2 Canon EF
CN-E 85mm T1.3 FP X SUMIRE
85mm T15 FF Canon EF
CN-E 18-80mm T4.4 L IS KAS S
24mm T15 FF Canon EF
CN-E 24mm T1.5 FP X SUMIRE
24mm Macro Probe f14 EOS Cine
CN-E EF 35mm T1.5 M
CN-E 14mm T3.1 FP X SUMIRE
CP.3 4-Lens Set
CP.3 3-Lens Set - Zeiss
SUMIRE Kit 243550mm - Canon
7.5mm f2 for M43 Lens
65mm T2.4 Ambra MFT
65mm T2.4 Silver MFT
65mm T2.4 Blue MFT
80mm T2.4 Ambra MFT
80mm T2.4 Blue MFT
80mm T2.4 Silver MFT
MVTTWINGA
MVTTWINMC
Focus 22 - HF2200
MVTTWINMA
Focus 18 - HF1800
MB SPEF-M43-BT3 m43-EF
MB SPEF-M43-BT6 m43-EF
MBSPEF-m43-BT9
MB SPEF-M43-BT5 m43-EF
MBNF-m43-BT2 m43-Nikon F
MBSPEF-m43-BTB
MBLM-m43-BT2 m43 - Leica M
MBSPEF-m43-BT8
MBSPNFG-m43-BM2 m43-Nikon G
MBPL-m43-BT1
Z-CAM E2 EF Mount
Z-CAM E2MFT Mount Active Lock
MBSPNFG-M43-BM5
Z-CAM TurboMount CANON EF
MBMD-m43-BM1 m43-Minolta MD
MBSPEF-m43-BTA
MBNFG-m43-BM1 m43-Nikon G
Z-CAM E2 PL Mount
MBSPEF-m43-BT7
MBSPNFG-M43-BM4
MBEF-m43-BT2 m43-EF
MB SPEF-M43-BT4 m43-EF
MBLR-m43-BM2 m43-Leica R
MBSPNFG-M43-BM3 m43-Nikon G
Z-CAM E2MFT Mount
S-8975
S-8110S
S-8180S
S-8972
TA-ABP-G
S-8082S
PB-H290S
PB-S220S
PB-S98A
S-8192S
LB-SF65C
PB-S98S
S-8770
S-8083S
S-8113S
PB-R290S+
PB-M98S
Z-CAM E2 Sync Cable
FF-T07
FF-T05
Nucleus M - WLC-T03
FF-T03
PL-E90
PL-E60D
Nanlite - PavoTube Holder
PL-E90D
LS 300X
LS C300d II VL
PL-E90 3KIT
ASTERA TITAN TUBE FP1-KIT 1 - Astera
MB-T04
UMB-1 Clamp on
MB-T06
MB-T15
MB-T12
H-FS45150EKA
H-ES200E
H-PS14042E-K
24-70mm F2.8 DG OS HSM Canon
H-HS043E-K
H-H020AE-K
Zuiko Digital ED 90mm Macro
25mm f2.8 Ultra-Macro Canon
Otus 1.4 85mm EF-MOUNT Canon
100mm f2.8 U-Macro EF
H-FS35100E-K
H-PS45175E-K
ED 8mm f1.8 Fisheye Pro
ED 12-45mm f.4 Pro
ZUIKO DIGITAL ED 17mm Pro
Otus 1.4 55mm EF-MOUNT Canon
H-ES045E
H-H025E-K
H-X2550E
17mm f1.8 MFT
H-ES12060E
H-H020AE-S
H-FSA100300E
ZUIKO DIGITAL ED 12-100mm Pro
15mm Macro f4 Canon EF
H-HS030E
18-35mm F1.8 Art DC HSM Canon
H-FSA14140E
H-NS043E
60mm f2.8 Ultra-Macro 21
50mm f2.8 2X Ultra Macro APO
H-X1025E
H-F007014E
Otus 1.4 28mm EF-MOUNT Canon
12mm f2.8 Zero-D Canon EF
H-FS12060E
MZ Digital ED 12-200mm
EZ-M 12-40 II PRO
24mm Macro Probe f14 Canon
H-E08018E
H-ES35100E
85mm f1.4 Planar ZE EOS
H-X012E
35mm F1.4 Art DG HSM Canon EF
H-X015E9-K
H-FS12032E-K
M.ZUIKO DIGITAL 14-150mm F4
ED 150-600mm f5-6.3 IS MFT
ED 9-18mm f4-5.6 II MFT
H-RSA100400E
KJ103 JibO Fluid Kit
KC Cineslider 5ft 15m
Shark Slider Mini Complete
KC Cineslider traveler
Shark Slider S1 Bundle
KC Cineslider 3ft 1 m
AL-MC
LH5P II
F-10A
F-5A
Z-KEVF-P
LANC CABLE PK-BM5 III
LCD-15FK 12G
PVM-X1800
BVM-HX310
OEYE-RED EVF
LCD-17FH-R
LVM-095W-N
PVM-X2400
BVM-E251
M501H-S - MustHD
Z-CAM EVF
Focus 12 KF12-3CS
Focus 8 KSDS08-C
MVH502A546BK-1
Focus 18 KSDS18-C
Focus 12 KSDS12-C
Focus 22 KSDS22-A
Focus 12 KSDS12-A
MB PL-RL-A55
MB MBAG60N
MB MA3-RB
MB PL-RL-A50
MB PL-RL-S55
MB PL-CL-S
MB PL-CL-M
MB PL-CL-L
244RC
Z-LARM
Z-SARM
026
244MICRO
143N
244
143RC
244N
Arm Mini
Nanlite - FL-11 Forza 60
Nanlite - BH-FZ60
H5
DR-40X
MixPre-10 II
H2n
F6
MixPre-3 II
MixPre-6 II
R8
DR-10CS
DR-60DMK2
MB MA3-BP-GM
MB PL2-BP-FX-L
MB PL2-BP-BL-M
MB MA3-BP-A
MB MA3-BP-H
MB MA3-BP-BF
MB PL2-BP-BL-S
MB PL2-BP-ML-M
MB MA3-BP-FM
MB MA3-BP-T
MB MA3-BP-C
MB PL2-BP-FL-M
ILCE-7M4KB.CEC Alpha a7IV
ILCE-7M4B.CEC - Alpha 7 IV
ILCE-7M4GBDI - 7IV SEL24105G
SDCFSP-512G-G46D
SDCFSP-064G-G46D
SF-G2M
CFast 2.0 AV Pro 1TB
CFast 2.0 AV Pro 512Gb
SDCFSP-256G-G46D
Z-CAM E2eND Module
Video Assist 7 12G HDR
Video Assist 5 12G HDR
SR 3323
Easyrig 5 Vario - arm 130mm
ARMOR-MAN 3 ARM-T03
Z-CAM HDMI-SDI Converter
Livetrak L-12
CIAK STD
Camera Features
Sensor Type
4/3" WDR CMOS Sensor
Sensor Size
19.0 x 13.0 mm
Effective Pixels
10.28M
Dynamic Range
13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
Lens Mount
MFT mount (interchangeable)
Microphone
Built-in Stereo Microphone
Recording
Resolution
4096 x 2160 (C4K) / 3840 x 2160 (4K)
4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
3696 x 2772 / 3312 x 2760
2704 x 1600 / 1920 x 1080
Frame Rate
59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
Max Variable Frame Rate
120 fps for 4096 x 2160 (H.265 only)
120 fps for 3840 x 2160 (H.265 only)
150 fps for 4096 x 1728 (H.265 only)
160 fps for 3840 x 1620 (H.265 only)
160 fps for 2704 x 1600 (H.265 only)
59.94 fps for 3696 x 2772 (Apple ProRes & H.265)
59.94 fps for 3312 x 2760 (Apple ProRes & H.265)
240 fps for 1920 x 1080 (H.265 only)
* Please refer to "Appendix 1" for more detail of the max frame rate for different encoders.
Max Bit Rate
H.265 / H.264
300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
200 Mbps for 1920 x 1080
ProRes
Please check "Apple ProRes White Paper" for the bit rate of ProRes encoding.
Color Bit Depth
10-bit (H.265 & ProRes) & 8-bit (H.264)
Video Encoder
ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422
ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile
Audio Format
24-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video
Settings
ISO
Auto, Manual (500 ~ 102400 / 250 ~ 51200 with WDR activated), Native ISO: 500 / 2500 (250 / 1250 with WDR activated)
Shutter
Shutter Speed: Auto, Manual (up to 1/8000") or
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness
Image Profile
Rec.709 / Z-Log2 / FLAT / HLG
Audio
Audio In / Out Level
Time Code
Current Time / Manual Input / External Input
Storage
Media
CFAST 2.0
File System
exFAT
Connectivity
HDMI
HDMI 2.0 Type A (video output up to C4K @60fps)
USB
USB 3.0 Type C for camera control & data transfer only
COM
DB-9 connector, supports RS-232
Remote Control
2.5 mm jack socket (Sony LANC compatible)
Audio-in
3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)
Audio-out
3.5 mm stereo jack socket
Wi-Fi
802.11n, 2.4G with external antenna port
Ethernet
Gigabit Ethernet port for control, setting & live streaming
Power
Battery
Sony NP-F series compatible (Battery not included)
External Power Supply
DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter
Physical
Material
Aluminum Alloy
Weight
1090g (EF mount) / 1160g (PL mount) / 930g (MFT mount)
Dimensions (W x H x D)
91.20mm x 99.25mm x 95.60mm (without lens)
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
Supported Lenses
Panasonic Lumix 14mm f/2.5 G
Panasonic Leica DG Summilux 15mm f/1.7 ASPH
Panasonic Lumix G Vario 7-14mm f/4 ASPH
Panasonic Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S.
Panasonic Lumix G 25mm f/1.7 ASPH.
Panasonic Lumix G 42.5mm f/1.7 ASPH. POWER O.I.S. Lens
Panasonic Lumix G X Vario 12-35mm f/2.8 II ASPH. POWER O.I.S.
Panasonic Leica DG Vario-Elmarit 8-18mm f/2.8-4 ASPH.
Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH. MEGA O.I.S
Lumix G X Vario 14-42mm f/3.5-5.6 Power O.I.S.
Sigma 19mm F2.8 DN Art
Olympus M.Zuiko Digital ED 8mm f/1.8 Fisheye PRO
Olympus M.Zuiko Digital ED 12mm f/2
Olympus M.Zuiko Digital ED 17mm f/1.2 PRO
Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO
Olympus M.Zuiko Digital ED 45mm f/1.2 PRO
Olympus M.Zuiko Digital ED 75mm f/1.8 Lens
Olympus M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ
Olympus M.Zuiko Digital ED 25mm f/1.2 PRO
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 30mm f/3.5 Macro
Olympus M.Zuiko Digital ED 40-150mm f/2.8 PRO
Olympus M.Zuiko Digital ED 7-14mm f/2.8 PRO
Olympus M.Zuiko Digital ED 12-100mm f/4 IS PRO
Olympus M.Zuiko Digital ED 300mm f/4 IS PRO
