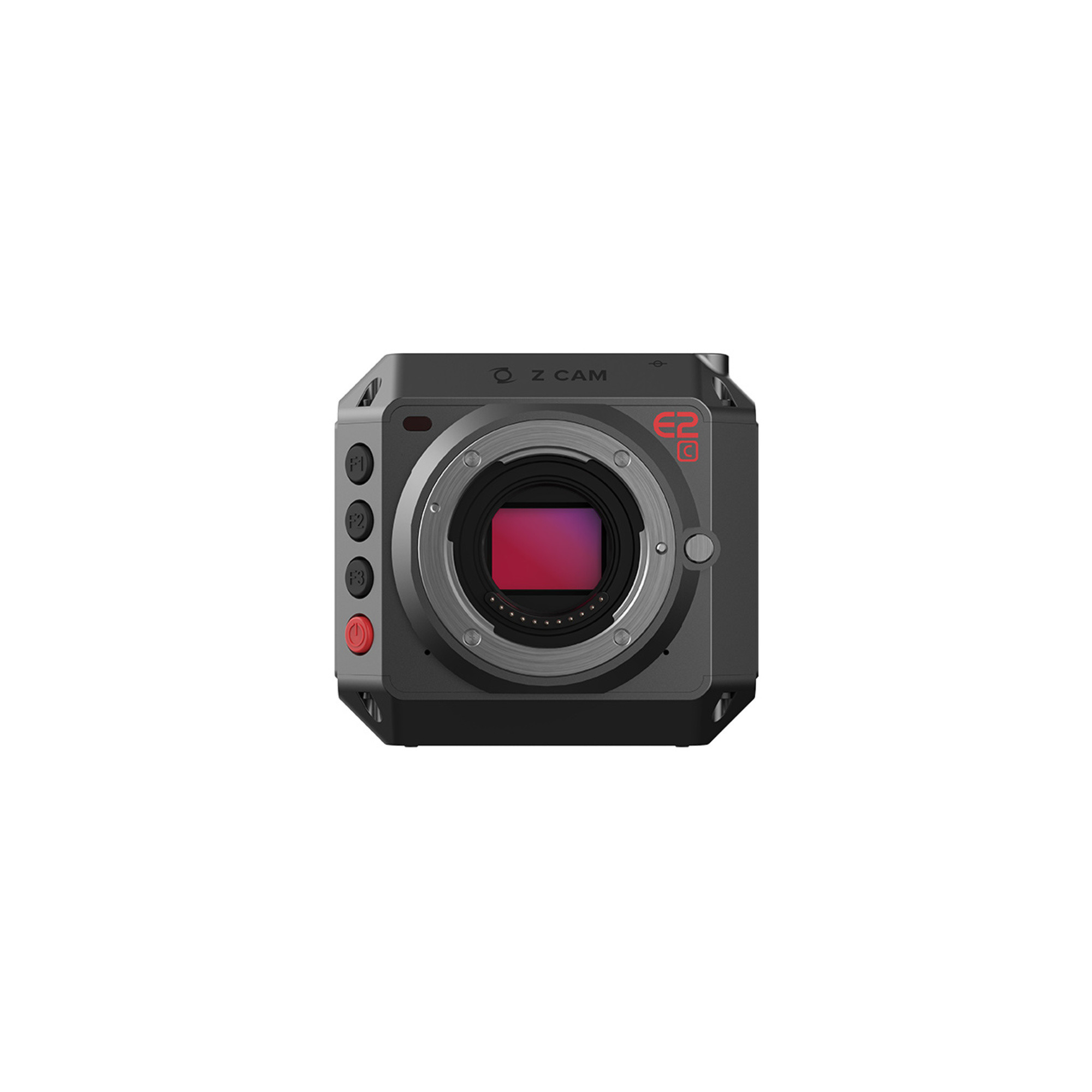

Z-CAM E2C
Z Cam
- -2.5%
€ 1.115,68 VAT excl.
€ 1.230,10You can use an available iOS app to control the camera via Wi-Fi and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers via PoE, an LP-E6-series battery (not included), or via a DC input port. An included LEMO to D-Tap power cable allows you to power the camera from a D-Tap source. An optional AC to DC power adapter can also power the camera.
Firmware 0.88 Update
Firmware 0.88 brings ZRAW recording to the camera.
4K Capture and Recording
Unburdened by a recording time limit, you can record UHD 4K at up to 29.97 fps or 1080p at up to 59.94 fps, for up to the limit of your recording media's capacity
CMOSW sensor with 11.5 stops of dynamic range (Z-Log2)
The camera supports REC.709, Z-Log2, FLAT, and HLG
H.265 (10-bit color) internal recording on SDXC Class 10 cards, UHS-1 Speed Class 3 recommended
Video output through HDMI 2.0 is supported
Full metal housing for efficient heat dissipation
Interfaces and Expandability
USB 3.0 Type-C for camera control and data transformation only
Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
LANC port for remote control including power on/off
iOS App
Z Camera is a mobile application for camera live preview and control through Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview.
Camera Settings
White balance: Auto, preset, manual (2300 to 7500K)
Focus modes: MF, AF, CAF
Image: Brightness, contrast, saturation, sharpness
LUT: REC. 709, Z-Log2, FLAT, HLG
Timecode: Current time, manual input
Camera Body
Made from aluminum for strength and heat dissipation
There are nine threaded mounting holes around the outside chassis
Sensor plane marking for accurate distance measurements
Powers from optional AC/DC adapter or optional LP-E6-series batteries
Active MFT mount
ZUIKO DIGITAL ED 25mm Pro
-2.5%H-FS45150EKA
H-ES200E
H-PS14042E-K
-2.5%H-HS043E-K
ZUIKO DIGITAL 17mm f1.8
H-H020AE-K
Zuiko Digital ED 90mm Macro
SY10VT
-2.5%SY13VT
-2.5%SY12VT
-2.5%SY75VT
-2.5%H-FS35100E-K
ZUIKO DIGITAL ED 40-150mm PRO
-2.5%H-PS45175E-K
-2.5%SYX35T
-2.5%SY15VT
-2.5%ZUIKO DIGITAL ED 17mm Pro
-2.5%H-ES045E
H-H025E-K
H-ES12060E
H-H020AE-S
H-FSA100300E
-2.5%ZUIKO DIGITAL ED 12-100mm Pro
-2.5%SY50VT
-2.5%H-HS030E
H-FSA14140E
H-NS043E
50mm f2.8 2X Ultra Macro APO
-2.5%ZUIKO DIGITAL ED 45mm Pro
-2.5%H-RS100400E
H-X1025E
H-H014AE-K
H-F007014E
H-FS12060E
EZ-M 12-40 II PRO
H-E08018E
H-ES35100E
-2.5%H-X012E
H-X015E-K
H-FS12032E-K
-2.5%SY21VT
-2.5%H-FS1442AEKA
M.ZUIKO DIGITAL 14-150mm F4
ED 150-600mm f5-6.3 IS MFT
ED 9-18mm f4-5.6 II MFT
MK35 35mm T2.2
SYX13T
-2.5%SLR-2595MFT
SYX14T
-2.5%SLR-MP12MFT
SYX50T
-2.5%SLR-3595MFT
SYX16T
-2.5%SLR-1021MFT
SLR-3517MFT
MK50 50mm T2.2
SYX85T
-2.5%SLR-0840MFT
SLR-5095MFT
SYX20T
-2.5%65mm T2.4 Ambra MFT
65mm T2.4 Silver MFT
65mm T2.4 Blue MFT
80mm T2.4 Ambra MFT
80mm T2.4 Blue MFT
80mm T2.4 Silver MFT
LH5P II
-2.5%Camera Control Cable for LANC
-0.91%LANC CABLE PK-BM5 III
OEYE-RED EVF
-2.52%MBNF-m43-BT2 m43 Nikon F
-2.5%MBLM-m43-BT2 m43 - Leica M
-2.5%MBPL-m43-BT1
-2.5%MBMD-m43-BM1 m43 Minolta MD
-2.5%MBNFG-m43-BM1 m43 Nikon G
-2.5%MBEF-m43-BT2 m43 EF
-2.5%MBLR-m43-BM2 m43 Leica R
-2.5%TA-T05-USBC-20
Crane 4
Crane 4Combo
Image Sensor
Image Sensor Size 17.56 x 13.11 mm (4/3")
Sensor Type CMOS
Sensor Resolution Effective: 16.83 MP
ISO 800 to 25,600
Camera
Lens Mount Micro Four Thirds
Shutter Angle 1 to 360°
Built-In ND Filter None
Built-In Microphone Type Stereo
Recording Media 1 x SDXC UHS-I Card Slot (U3 / V30 or faster cards recommended)
Internal Recording
Recording Modes H.265/MOV/MP4 10-Bit:
3840 x 2160p at 23.98/24/25/29.97 fps
2880 x 2880 at 23.98/24/25/29.97 fps
1920 x 1080 at 23.98/24/25/29.97/50/59.94 fps
H.264/MOV/MP4 8-Bit:
3840 x 2160p at 23.98/24/25/29.97 fps (230 Mb/s)
2880 x 2880p at 23.98/24/25/29.97 fps (230 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (200 Mb/s)
Interfaces
Video Connectors 1 x HDMI (HDMI 2.0) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Input
1 x 1/8" / 3.5 mm Stereo Output
Other I/O 1 x USB Type-C
1 x 2.5 mm LANC Control
1 x RJ45 LAN
Wireless Interfaces 2.4 GHz Wi-Fi
Display
Display Type Status Display
Power
Battery Type Canon LP-E6
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Accessory Mount 8 x 1/4"-20 Female
Tripod Mounting Thread 1/4"-20 Female
Material of Construction Aluminum
Dimensions 3.59 x 3.51 x 3.3" / 91.2 x 89.1 x 83.9 mm (Without Protrusions)
Weight 1.47 lb / 668 g
Packaging Info
Package Weight 2.37 lb
Box Dimensions (LxWxH) 6.1 x 6 x 5.9"
