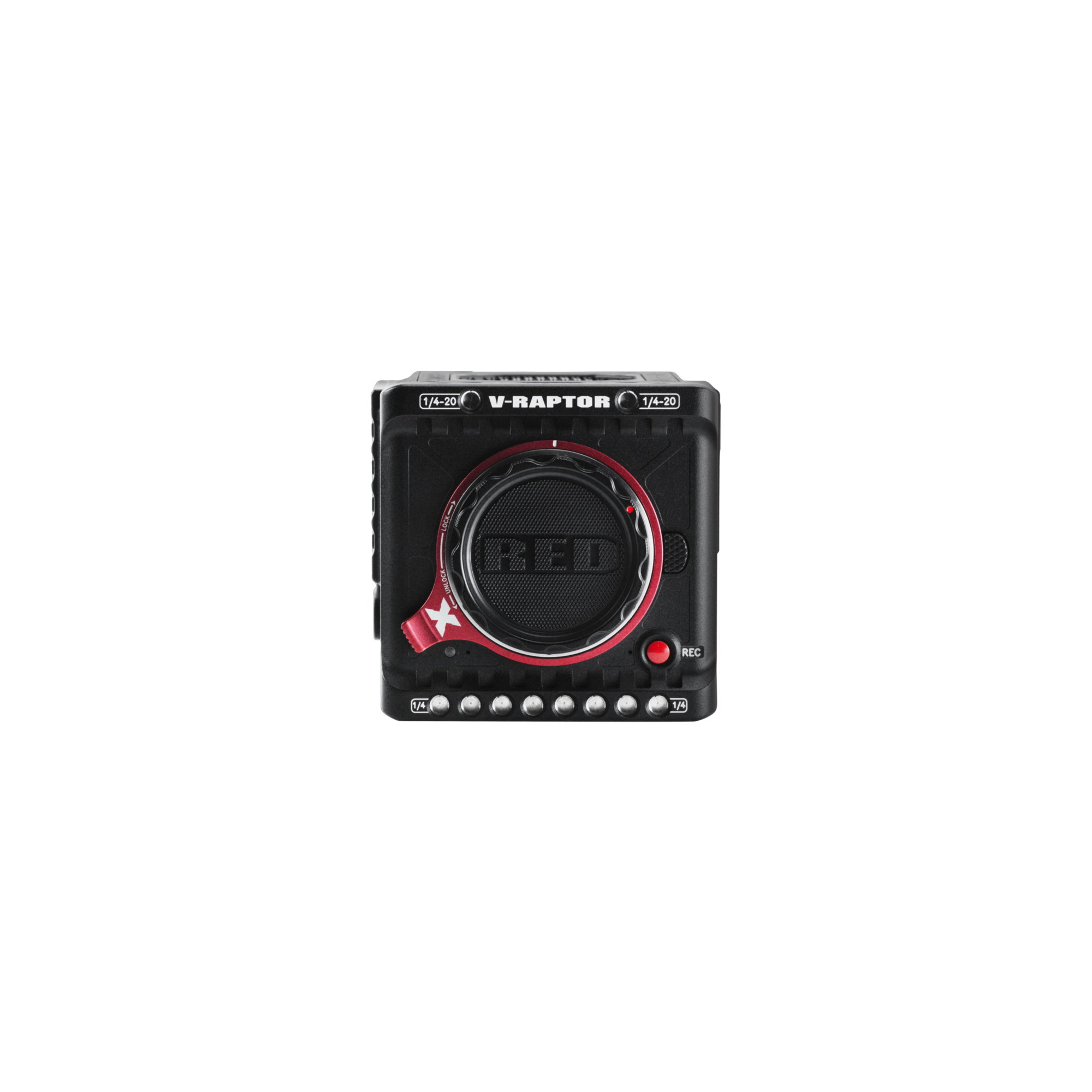

V-RAPTOR X Body
V-RAPTOR X Body
Previous keyboard_arrow_left
Next keyboard_arrow_right
V-RAPTOR X Body
V-RAPTOR X Body

V-RAPTOR X Body

RED

RED CINEMA camera Global Shutter Full-Frame VV Sensor 8K120, 800 MB/s 710-0390
go to the technical sheet

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 0.00
Available in 14 days
Manufacturer: go to website
V-RAPTOR [X] 8K VV combines the strengths of RED's two families of cameras into one powerful all-purpose workhorse. The frame rates, lowlight performance, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO®, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED's newest 8K VV sensor, V-RAPTOR [X] leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a compact and feature rich body weighing just over 4lbs.

CODE : 710-0390-03

Global Shutter Full-Frame VV Sensor
Lightweight & Compact DSMC3 Design
Locking Canon RF Lens Mount
Global Vision with Extended Highlights
Phantom Track for Ghost Frame, Remapping
Supports up to 8K120, 800 MB/s Video
17+ Stops of Dynamic Range
Right-Side Assistant's User Interface
REDCODE Raw HQ, MQ & LQ Options
USB-C & Dual 12G-SDI Ports

THE NEW STANDARD

V-RAPTOR [X] is the first large format global shutter camera available. It is built off the same keystone features found in the original V-RAPTOR, such as 2x 12G SDI's capable of unique monitoring views, a locking Canon RF style lens mount for rigid and flexible lens selection, and Cfexpress Type B media for up to 800MB/s formats such as 8K 120P. In addition, improved in-camera audio pre-amps as well as a redesigned sensor cavity designed to mitigate stray light and improve contrast performance only further builds upon the V-RAPTOR legacy.

GLOBAL VISION

V-RAPTOR [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision's Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HDR finishes, or softer and more subtle highlight roll-off for SDR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrame™ or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.

IP CONNECTED

Additionally, the V-RAPTOR [X] and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.

In the Box

RED DIGITAL CINEMA V-RAPTOR [X] 8K VV Camera (V-Mount)
AC Power Adapter (150W)
Mini World Traveler Adapter Kit

MVK612TWINFA
Manfrotto

MVK612TWINFA

₦ 2,442,183.93 VAT included
Available 1 unit in 4 Days
MVK504XSNGFC
Manfrotto

MVK504XSNGFC

₦ 2,379,027.68 VAT included
Available 1 unit in 4 Days
MVK504XTWINMA
Manfrotto

MVK504XTWINMA

₦ 1,767,137.68 VAT included
Available 1 unit in 4 Days
MVK509TWINFC
Manfrotto

MVK509TWINFC

₦ 3,717,295.18 VAT included
Available 1 unit in 4 Days
MVK504XTWINGC
Manfrotto

MVK504XTWINGC

₦ 2,162,898.93 VAT included
Available 2 unit in 4 Days
MVK612TWINGC
Manfrotto

MVK612TWINGC

₦ 2,468,037.68 VAT included
Available in 14 days
MVK612TWINMA
Manfrotto

MVK612TWINMA

₦ 2,163,436.43 VAT included
Available in 24 days
MVK612TWINFC
Manfrotto

MVK612TWINFC

₦ 2,711,632.68 VAT included
Available in 14 days
MVK502AM-1
Manfrotto

MVK502AM-1

₦ 1,197,280.18 VAT included
Available 1 unit in 4 Days
MVK504XTWINGA
Manfrotto

MVK504XTWINGA

₦ 1,767,137.68 VAT included
Available in 14 days
MVK504XTWINFA
Manfrotto

MVK504XTWINFA

₦ 2,012,667.68 VAT included
Available 2 unit in 4 Days
MVK526TWINFA
Manfrotto

MVK526TWINFA

₦ 4,671,572.68 VAT included
Available in 14 days
MVK612CTALL
Manfrotto

MVK612CTALL

₦ 3,103,900.18 VAT included
Available in 14 days
MVK612TWINMC
Manfrotto

MVK612TWINMC

₦ 2,549,415.18 VAT included
Available in 14 days
MVK504XCTALL
Manfrotto

MVK504XCTALL

₦ 2,808,382.68 VAT included
Available in 34 days
MVK612SNGFC
Manfrotto

MVK612SNGFC

₦ 2,711,632.68 VAT included
Available in 14 days
MVK500AM
Manfrotto

MVK500AM

₦ 959,490.18 VAT included
Available 0 unit
MVK504XTWINMC
Manfrotto

MVK504XTWINMC

₦ 2,154,083.93 VAT included
Available 1 unit in 4 Days
MVK612TWINGA
Manfrotto

MVK612TWINGA

₦ 2,082,058.93 VAT included
Available in 14 days
MVK509TWINFA
Manfrotto

MVK509TWINFA

₦ 3,275,093.93 VAT included
Available in 14 days
ESR-T08-BP-V
Tilta

ESR-T08-BP-V

₦ 766,258.93 VAT included
Available in 14 days
TITON G90
Anton Bauer

TITON G90

₦ 635,323.93 VAT included
Available in 14 days
CEB-G128.SYM
Sony

CEB-G128.SYM

₦ 477,137.68 VAT included
Available 6 unit in 4 Days
WC-280600
Wooden Camera

WC-280600

₦ 1,149,711.43 VAT included
Available in 34 days
FLOW2000
Swit

FLOW2000

₦ 3,057,406.43 VAT included
Available in 11 days
FLOW6500
Swit

FLOW6500

₦ 8,313,833.93 VAT included
Available in 11 days
FLOW500
Swit

FLOW500

₦ 1,455,548.93 VAT included
Available in 11 days
FLOW2000 TX
Swit

FLOW2000 TX

₦ 1,826,531.43 VAT included
Available in 11 days
FLOW10K
Swit

FLOW10K

₦ 9,062,678.93 VAT included
Available in 11 days
RF Extender 2x
Canon

RF Extender 2x

₦ 1,415,182.68 VAT included
Available 1 unit in 4 Days
SY6V2R
Samyang

SY6V2R

₦ 1,131,006.43 VAT included
Available in 14 days
ESR-T08-TH
Tilta

ESR-T08-TH

₦ 419,356.43 VAT included
Available in 14 days
ESR-T08-IOM
Tilta

ESR-T08-IOM

₦ 392,535.18 VAT included
Available in 14 days
GSS-T01-V
Tilta

GSS-T01-V

₦ 3,415,166.43 VAT included
Available in 24 days
ESR-T08-THE
Tilta

ESR-T08-THE

₦ 313,307.68 VAT included
Available in 14 days
ESR-T08-BSP
Tilta

ESR-T08-BSP

₦ 291,485.18 VAT included
Available in 14 days
RCC-6-SDI
Roland

RCC-6-SDI

₦ 25,691.43 VAT included
Available 4 unit in 4 Days
RCC-25-SDI
Roland

RCC-25-SDI

₦ 103,252.68 VAT included
Available 7 unit in 4 Days
RCC-200-SDI
Roland

RCC-200-SDI

₦ 290,356.43 VAT included
Available in 11 days
RCC-10-SDI
Roland

RCC-10-SDI

₦ 55,952.68 VAT included
Available 6 unit in 4 Days
RCC-50-SDI
Roland

RCC-50-SDI

₦ 127,601.43 VAT included
Available in 11 days
RCC-3-SDI
Roland

RCC-3-SDI

₦ 21,391.43 VAT included
Available 4 unit in 4 Days
RCC-100-SDI
Roland

RCC-100-SDI

₦ 124,752.68 VAT included
Available 0 unit
HDA-T02-AB
Tilta

HDA-T02-AB

₦ 2,945,498.93 VAT included
Available in 14 days
HDA-T02-A-V
Tilta

HDA-T02-A-V

₦ 4,093,437.68 VAT included
Available in 14 days
HDA-T02-V
Tilta

HDA-T02-V

₦ 3,216,667.68 VAT included
Available in 14 days
K 52
AKG

K 52

₦ 179,497.39 VAT included
Available 2 unit in 4 Days
BPHS1
Audiotechnica

BPHS1

₦ 414,518.93 VAT included
Available 2 unit in 4 Days
K 371
AKG

K 371

₦ 365,543.43 VAT included
Available in 14 days
K 240 MKII
AKG

K 240 MKII

₦ 210,792.11 VAT included
Available 2 unit in 4 Days
K 72
AKG

K 72

₦ 168,972.88 VAT included
Available 1 unit in 4 Days
K 92
AKG

K 92

₦ 112,702.80 VAT included
Available 3 unit in 4 Days
ATH-M50x
Audiotechnica

ATH-M50x

₦ 343,515.18 VAT included
Available 4 unit in 4 Days
ATH-E40
Audiotechnica

ATH-E40

₦ 204,893.93 VAT included
Available 2 unit in 4 Days
MDR-75061
Sony

MDR-75061

₦ 284,013.93 VAT included
Available in 14 days
K 361
AKG

K 361

₦ 187,945.66 VAT included
Available in 14 days
Shogun Classic
Atomos

Shogun Classic

₦ 2,455,890.18 VAT included
Available 1 unit in 4 Days
Z-KEVF-P
Zacuto

Z-KEVF-P

₦ 3,938,153.93 VAT included
Available in 64 days
MON-CINE-7-RED
SmallHD

MON-CINE-7-RED

₦ 5,509,051.43 VAT included
Available 1 unit in 4 Days
OEYE-RED EVF
Portkeys

OEYE-RED EVF

₦ 2,817,036.43 VAT included
Available in 14 days
RED 730-0029
RED

RED 730-0029

₦ 6,903,091.86 VAT included
Available in 14 days
ATEM156
Seetec

ATEM156

₦ 886,121.43 VAT included
Available 1 unit in 4 Days
RED 790-0638
RED

RED 790-0638

Available 1 unit in 4 Days
C17
Deity

C17

₦ 123,197.20 VAT included
Available 2 unit in 4 Days
143N
Manfrotto

143N

₦ 311,910.18 VAT included
Available 4 unit in 4 Days
244
Manfrotto

244

₦ 369,530.18 VAT included
Available 2 unit in 4 Days
143RC
Manfrotto

143RC

₦ 533,252.68 VAT included
Available in 14 days
143
Manfrotto

143

₦ 447,790.18 VAT included
Available 1 unit in 4 Days
143A
Manfrotto

143A

₦ 338,516.43 VAT included
Available in 14 days
MRW-G1.SYM
Sony

MRW-G1.SYM

₦ 168,397.68 VAT included
Available 5 unit in 4 Days

SENSOR TYPE V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS
EFFECTIVE PIXELS 8192 x 4320

SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

DYNAMIC RANGE 17+ stops

MOUNT TYPE
Integrated locking RF mount with electronic communication
Supports /i PL lenses with RED RF to PL Adapters
Supports Canon EF Adapter with communication and other adapters based on the RF mount
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards1

REDCODE® RAW MAX FRAME RATES
120 fps at 8K 17:9, 150 fps at 8K 2.4:1
140 fps at 7K 17:9, 175 fps at 7K 2.4:1
160 fps at 6K 17:9, 200 fps at 6K 2.4:1
192 fps at 5K 17:9, 240 fps at 5K 2.4:1
240 fps at 4K 17:9, 300 fps at 4K 2.4:1
320 fps at 3K 17:9, 400 fps at 3K 2.4:1
480 fps at 2K 17:9, 600 fps at 2K 2.4:1

BEST AVAILABLE REDCODE® SETTINGS
REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
REDCODE LQ and ELQ at 8K 17:9 up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps
REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps

REDCODE® RAW
ACQUISITION FORMATS
8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9, 2:1, 2.4:1, 16:9, 1:1
4K 17:9, 2:1, 2.4:1, 16:9, 1:1
3K 17:9, 2:1, 2.4:1, 16:9, 1:1
2K 17:9, 2:1, 2.4:1, 16:9, 1:1

APPLE PRORES
Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.

CONSTRUCTION Aluminum Alloy
DIMENSIONS 149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.)
WEIGHT 4.03 lbs / 1.83 kg (without body cap and CFexpress card)
MEDIA TYPE CFexpress Type B
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1
DC POWER INPUT 11-17 V via 6-Pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE -20°C to 50°C (-4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing

RED GLOBAL VISION
Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios.
Phantom Track recording mode to capture multiple LED instances as dedicated clips.

COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs

AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port

AUTOFOCUS
Phase Detect with Face Detection

IP CONNECTED
Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110.
Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload

MONITOR OUTPUTS
Proprietary Top Accessory Port for Monitoring and Control
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

MONITOR OPTIONS
DSMC3 RED Touch 7.0" LCD
RED Compact EVF with DSMC3 Adapter A
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)

ADDITIONAL
I/O Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT

RED CONTROL & RED CONTROL PRO
Access full camera controls and live preview from iOS or Android devices
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB-C

RED DIGITAL CINEMA V-RAPTOR [X] 8K VV Camera (V-Mount)
AC Power Adapter (150W)
Mini World Traveler Adapter Kit

Other products in the same category

Previous
Next
V-RAPTOR XE RF Body
RED

V-RAPTOR XE RF Body

RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF) Body 710-0449
₦ 14,314.16 VAT included
Available in 14 days
  • New
MAVO Edge 6K Black
Kinefinity

MAVO Edge 6K Black

Digital Cinema Camera 6K 3:2 Full-Frame CMOS Sensor - Black
₦ 22,609,015.69 VAT included
Available in 19 days
URSA Cine 12K LF Body
Blackmagic

URSA Cine 12K LF Body

4K up to 12K camera with 36x24mm RGBW sensor, 5" LCD display - Only Body
₦ 11,727,684.98 VAT included
Available 1 unit in 4 Days
RED KOMODO X Body
RED

RED KOMODO X Body

RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black) BODY
₦ 14,300,427.87 VAT included
Available in 14 days
EOS C300 MKIII + EU-V2
Canon

EOS C300 MKIII + EU-V2

Camcorder Super35 CMOS sens+ Expansion V-lock adapter
₦ 13,348,703.93 VAT included
Available in 14 days
EOS C50
Canon

EOS C50

7K FF Cinema Camera with 32 MP Photos, Dual Pixel CMOS AF II with EOS iTR AF
₦ 6,411,640.94 VAT included
Available from 11-03-25
  • New
MAVO mark2 S35
Kinefinity

MAVO mark2 S35

S35 Digital Cinema Camera, 6K Super35 3:2 CMOS Sensor (No Lens Mount)
₦ 9,114,563.53 VAT included
Available in 19 days
ILME-FX30.CEC
Sony

ILME-FX30.CEC

26MP APS-C / Super 35mm Exmor R BSI CMOS cine camera with handle
₦ 4,119,452.68 VAT included
Available 5 unit in 4 Days
Z CAM E2-M4 Mark II
Z Cam

Z CAM E2-M4 Mark II

4K Professional Cinema Camera (Micro 4/3), 3G-SDI+HDMI, Body Only - E1512
₦ 3,698,112.66 VAT included
Available in 24 days
PXW-FX9V FX9
Sony

PXW-FX9V FX9

Camcorder 6K Full Frame AI Autofocus System
₦ 24,149,658.93 VAT included
Available in 8 days
URSA Mini Pro 4.6K G2
Blackmagic

URSA Mini Pro 4.6K G2

4.6K Super-35mm CMOS Sensor up to 300fps BMDRAW and ProRes 444
₦ 11,088,892.68 VAT included
Available in 19 days
V-RAPTOR Production Pack
RED

V-RAPTOR Production Pack

8K VV + 6K S35 Dual-Format DSMC3 Camera Production Pack (V-Lock)
Available in 34 days
AU-V35LT1G
Panasonic

AU-V35LT1G

Varicam Super 35 4K Super-35mm 4K body:
₦ 33,226,367.68 VAT included
Available in 64 days
URSA Cine 12K LF
Blackmagic

URSA Cine 12K LF

4K up to 12K camera with 36x24mm RGBW sensor, 5" LCD display
₦ 18,013,852.94 VAT included
Available in 15 days
