SR-20HD

Name: SR-20HD
Brand: Roland
SKU: SR-20HD
Price: 3342013 NGN
Availability: OutOfStock

Roland

EAN: 4957054517922

Audio and video streaming and recording switcher

go to the technical sheet

₦ 3,342,013.00

₦ 3,108,849.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

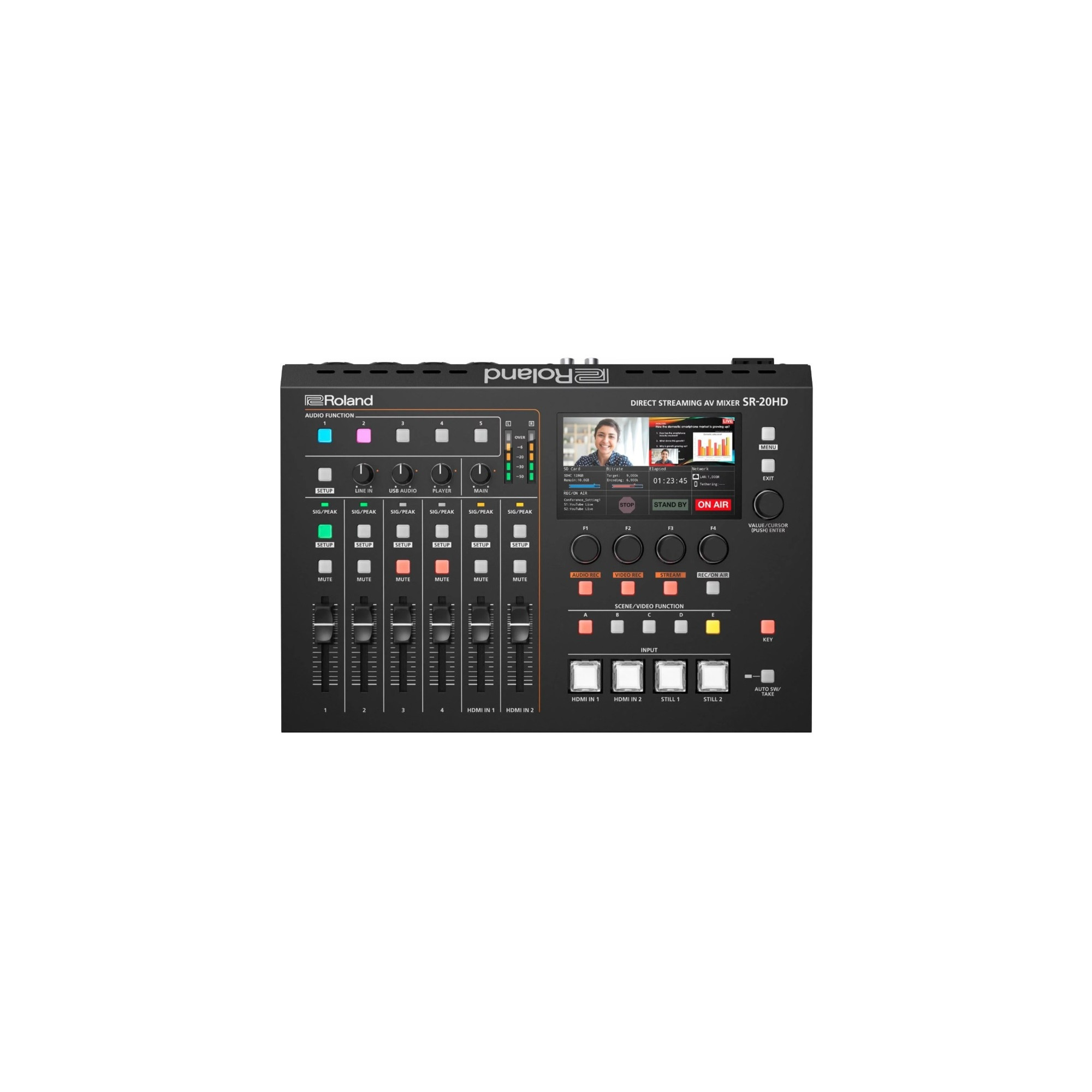

Roland - Audio and video streaming and recording switcher.
When the industry needed a streaming device that could handle audio and visuals a cut above the rest, Roland heard the call and created the SR-20HD Direct Streaming A/V Mixer. By streamlining the functions of a video switcher, a audio mixer, a preview screen, a streaming encoder, and a recorder/player into a single unit, Roland has effectively maximized streaming performance for businesses, organizations, and personal streaming applications. Though this high-tech A/V mixer has all the bells and whistles, it is highly intuitive and easy to get a handle on. This powerful and portable device will change the way you stream: consistent dependability is the name of the game here!
A wealth of connection options
The Roland SR-20HD offers a wide range of connectivity features to ensure your stream capabilities cover every base. Start out with connecting to two HDMI inputs with cameras, tablets, computers, or smartphones using presentation software. Also, a USB video input means you can connect a Roland UVC device or webcam without a hitch. What's more, audio inputs for instruments, microphones, music players, and more mean you don't have to grab extra gear to accommodate your sonic needs. Then, you're free to livestream directly to Facebook, YouTube Live, Twitch, or even RTMP to your CDN! With crystal-clear streaming quality, you and your clients, students, and team members will feel engaged and interested.
Roland SR-20HD Direct Streaming A/V Mixer Features:

Stream A/V mixer that functions as a video switcher, audio mixer, preview screen, recorder/player, and streaming encoder all in one unit
Great for livestreaming for businesses, organizations, YouTubers, podcasters, and more
Easily used with minimal training and can function without a computer
Standard mode operates at 1080p at 30 fps, covering the needs of most users
Can transmit 2 simultaneous livestreams with resolution as high as 1080p at 60 fps thanks to its built-in encoders
Auto Mixing function automatically handles volume, EQ, and microphone prioritization during streaming
Audio Follows Video/Video Follows Audio functions ensures audio and visuals play together when needed
Safety Delay buffers up to 60 seconds of audio/video so you can grab a still image or mute sound
Panel lock ensures certain controls cannot be messed with accidentally during streaming
4 XLR inputs, line-level connections, headset mic capability, HDMI, USB, and SDXC card offer a wide range of audio inputs and outputs
Preview display, F1-F4 encoders, and 5 assignable buttons make streaming quick and easy
Capture stereo WAV audio independently for audio-centered applications like podcasts
Scenes function makes it easy to execute complex switches
An onboard recorder captures video for SDXC cards in H.264 MP4 video
Mobile tether your 4G/5G smart devices as primary stream devices or as backups
Adaptive Bitrate ensures smooth streaming when having bandwidth and network connection problems

Video Converters Microphones Wireless Sound Diffusion Capture and encoding boards

Adcom Cable

HDMI to HDMI 70M Fiber

₦ 276,596.00 VAT included

Available 2 unit in 4 Days

Roland

RCC-6-SDI

₦ 16,285.00 VAT included

Available 8 unit in 4 Days

Adcom Cable

HDMI to HDMI 50M Fiber

₦ 207,904.00 VAT included

Available 6 unit in 4 Days

Adcom Cable

HDMI to HDMI 20M Fiber

₦ 158,669.00 VAT included

Available 9 unit in 4 Days

Roland

RCC-25-SDI

₦ 81,538.00 VAT included

Available 9 unit in 4 Days

Roland

RCC-200-SDI

₦ 253,591.00 VAT included

Available in 11 days

Roland

RCC-10-HDMI

₦ 47,138.00 VAT included

Available in 11 days

Roland

RCC-16-HDMI

₦ 75,464.00 VAT included

Available in 11 days

Adcom Cable

HDMI to HDMI 40M Fiber

₦ 186,296.00 VAT included

Available 7 unit in 4 Days

Roland

RCC-3-HDMI

₦ 14,458.00 VAT included

Available 6 unit in 4 Days

Roland

RCC-10-SDI

₦ 43,483.00 VAT included

Available 1 unit in 4 Days

Roland

RCC-50-SDI

₦ 96,050.00 VAT included

Available 5 unit in 4 Days

Adcom Cable

HDMI to HDMI 30M Fiber

₦ 188,608.00 VAT included

Available 2 unit in 4 Days

Adcom Cable

HDMI to HDMI 10M Fiber

₦ 497,401.00 VAT included

Available 8 unit in 4 Days

Roland

RCC-25-HDMI

₦ 85,139.00 VAT included

Available 9 unit in 4 Days

Roland

RCC-3-SDI

₦ 13,544.00 VAT included

Available 7 unit in 4 Days

Roland

RCC-100-SDI

₦ 103,575.00 VAT included

Available 7 unit in 4 Days

Roland

RCC-6-HDMI

₦ 25,154.00 VAT included

Available 3 unit in 4 Days

Blackmagic

CONVCMICHS03GWPSU HDMItoSDI

₦ 165,710.00 VAT included

Available 3 unit in 4 Days

Blackmagic

CONVCMICSH03G SDI to HDMI 3G

₦ 152,918.00 VAT included

Available 26 unit in 4 Days

Blackmagic

CONVCMICSH03GWPSU SDItoHDMI

₦ 174,256.00 VAT included

Available 18 unit in 4 Days

Blackmagic

CONVBDCSDIHDMI03GPS

₦ 195,703.00 VAT included

Available 3 unit in 4 Days

Blackmagic

CONVCMICHS03G HDMI to SDI 3G

₦ 144,318.00 VAT included

Available 3 unit in 4 Days

Blackmagic

CONVBDCSDIHDMI03G HDMI - SDI

₦ 174,256.00 VAT included

Available 18 unit in 4 Days

Sony

UWP-D26K21

₦ 1,561,168.00 VAT included

Available 2 unit in 4 Days

Sony

UWP-D22K33

₦ 1,166,374.00 VAT included

Available 5 unit in 4 Days

Sony

UWP-D27K33PRO

₦ 3,235,426.00 VAT included

Available in 14 days

Sony

UWP-D26K33

₦ 1,570,198.00 VAT included

Available 1 unit in 4 Days

Sony

UWP-D27K33

₦ 2,432,885.00 VAT included

Available 1 unit in 4 Days

Sony

UWP-D21K33

₦ 1,169,438.00 VAT included

Available 3 unit in 4 Days

Sony

UWP-D27K21PRO

₦ 3,235,426.00 VAT included

Available in 14 days

Sony

UWP-D21K21

₦ 1,169,438.00 VAT included

Available in 14 days

Sony

UWP-D27K21

₦ 2,358,388.00 VAT included

Available 3 unit in 4 Days

Sony

UWP-D22K21

₦ 1,166,374.00 VAT included

Available 1 unit in 4 Days

Audiotechnica

BPHS1

₦ 382,269.00 VAT included

Available in 11 days

Audiotechnica

BPHS2S

₦ 559,053.00 VAT included

Available 2 unit in 4 Days

Audiotechnica

BPHS2C

₦ 672,035.00 VAT included

Available in 11 days

Roland

UVC-02

₦ 538,843.00 VAT included

Available 1 unit in 4 Days

Roland

UVC-01

₦ 498,154.00 VAT included

Available 1 unit in 4 Days

Specifications

Video Inputs:
4 x HDMI Type A (channels 1-4)
1 x VGA/Component (channel 4 only)
1 x RCA, Composite (channel 4 only)
Video Outputs
2 x HDMI Type A (preview and main)
1 x VGA/Component (main)
1 x USB 3.0 Type-B

Input Format Support HDMI-Only Channels:
1080p 50/59.94
1080i 50/59.94
720p 50/59.94

Note: Composite input only supports NTSC and PAL formats

Output Format Supported:
1080p 50/59.94
1080i 50/59.94
720p 50/59.94
576p 50
480p 59.94
NTSC
PAL

VESA:
VGA (640 x 480)
SVGA (800 x 600)
XGA (1024 x 768)
WXGA (1280 x 768)
SXGA (1280 x 1024)
FWXGA (1366 x 768)
SXGA+ (1400 x 1050)
UXGA (1600 x 1200)
WUXGA (1920 x 1200)

Preview:
1080p 50/59.94
1080i 50/59.94
720p 50/59.94

USB:
1080p 25/29.97
720p 25/29.97
Audio
Audio Sampling 24-bit, 48 kHz
Audio Formats HDMI: 2-channel LPCM, 24-bit, 48 kHz
USB: 2-channel LPCM, 16-bit, 48 kHz
Audio Inputs 4 x XLR/TRS combo (channels 1-4)
1 x Stereo RCA (channels 5-6)
1 x 3.5 mm stereo (channels 7-8)
1 x USB 3.0 Type-B, stereo return
Phantom Power 48 VDC, 10 mA (maximum)

Audio Outputs
1 x XLR stereo pair
1 x RCA stereo pair
1 x USB stereo
1 x 3.5 mm stereo headphone

Signal Level / Impedance XLR/TRS Combo:
Input Signal Level: -60 to +4 dBu (maximum +22 dBu)
Input Impedance: 10 kOhms (gain 0-23 dB), 5 kOhms (gain 24-64 dB)

RCA:
Input Signal Level: -10 dBu (maximum: +8 dBu)
Input Impedance: 15 kOhms
Output Signal Level: -10 dBu (maximum: +8 dBu)
Output Impedance: 1 kOhm

XLR:
Output Signal Level: +4 dBu (maximum: +22 dBu)
Output Impedance: 600 Ohms

3.5mm (input):
Input Signal Level: -15 dBu (maximum: +3 dBu)
Input Impedance: 15 kOhms

3.5mm (headphones):
Output Signal Level: 75 mW + 75 mW
Output Impedance: 32 ohms

Other Connectors
1 x 9-pin, RS-232
1 x 15-pin, Tally/GPIO

General
Video Processing : 4:2:2 (YPbPr), 8-bit
Display : 320 x 240 touchscreen color LCD
Power Consumption: 12 VDC, 3 A, 36 W
Operating Temperature: 32 to 104°F / 0 to 40 °C
Dimensions: 33.9 x 21.7 x 8.7 cm ( 13.3 x 8.5 x 3.4")
Weight: 2.4 kg ( 5.3 lb)
