UVC-01

Name: UVC-01
Brand: Roland
SKU: UVC-01
Price: 278.04 EUR
Availability: InStock

Roland

EAN: 4957054518011

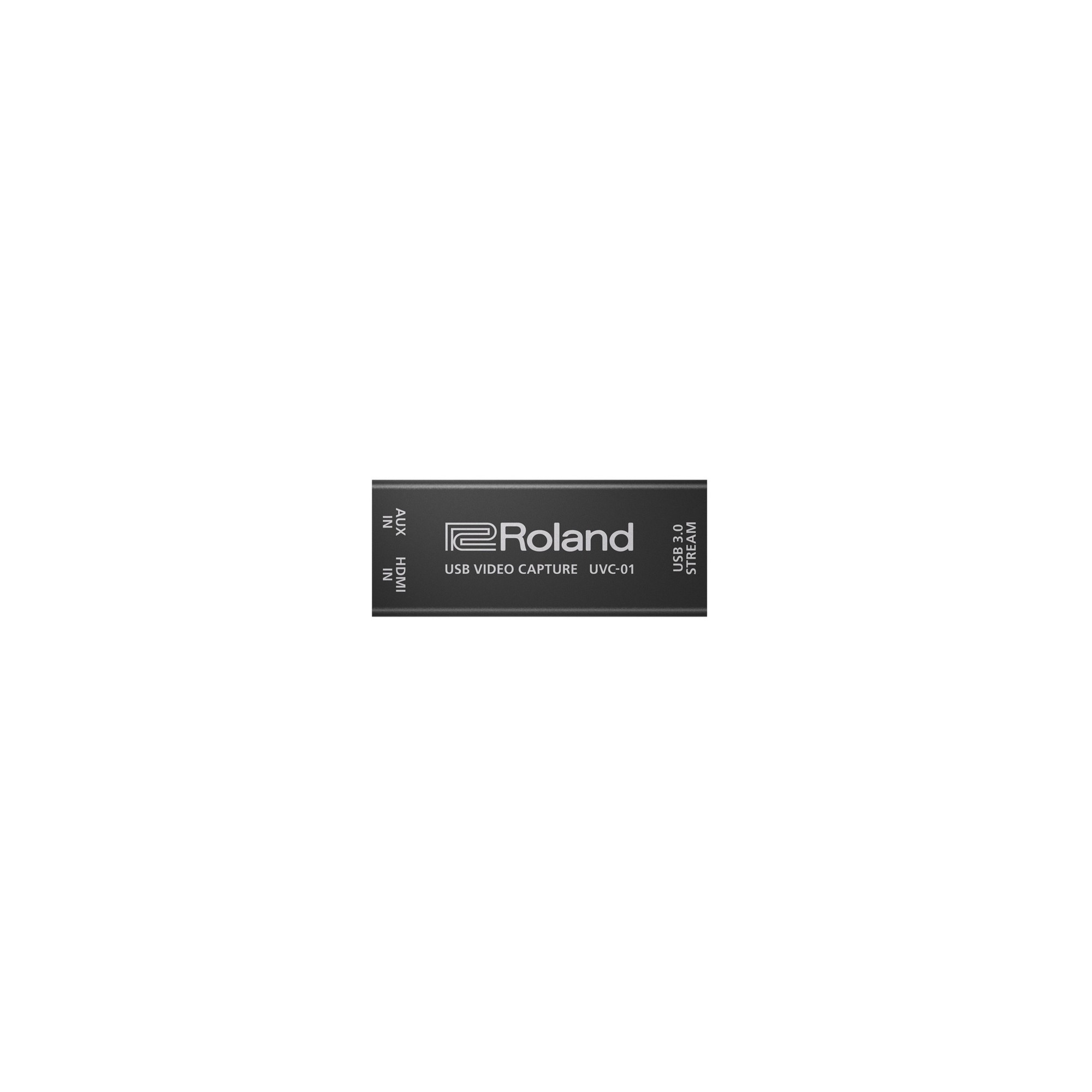

USB 3.0 Video capture card with HDMI and analog audio inputs

go to the technical sheet

-2.5%

Save 2.5%

€ 278,04

€ 258,64 VAT excl.

€ 285,17

Available 2 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

USB 3.0 Video capture card with HDMI and analog audio inputs
The card is UVC compliant so it's detected by the computer's OS as a webcam, allowing the direct use with software like Skype or Web-Ex(for video calls) or streaming platforms like Youtube and Facebook.
It supports resolutions up to 1080p60
OS Support Windows 7 / Windows 8 / Windows 8.1
Windows 10 ( 32-bit and 64-bit )
Linux / MAC OS / Android
USB 3.0 cable included

For audio/video settings you can download the utility from this link:https://www.adcom.it/yuan

Video
Input Connectors
HDMI IN connector: HDMI type A
* Multi-format Supported
* HDCP Not Supported
Output Connectors
USB STREAM port: USB 3.0 B type
Input Formats
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
USB Video Output Format
YUY2 (Uncompressed)
USB Video Output Resolution
1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
* The maximum frame rate is 60 fps.
Audio
Audio formats
HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
Input Connectors
HDMI IN connector: HDMI type A
AUX IN jack: Stereo miniature phone type
Output Connectors
USB STREAM port: USB 3.0 B type
Nominal Input Level
AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance
AUX IN jack: 10 k ohms
Others
Power Supply
Supplied from the computer via USB
Current Draw
500 mA
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
90 (W) x 37 (D) x 23 (H) mm
3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches
Weight (excluding AC adaptor)
96 g
4 oz
Accessories
Owner''s Manual
USB 3.0 Cable
