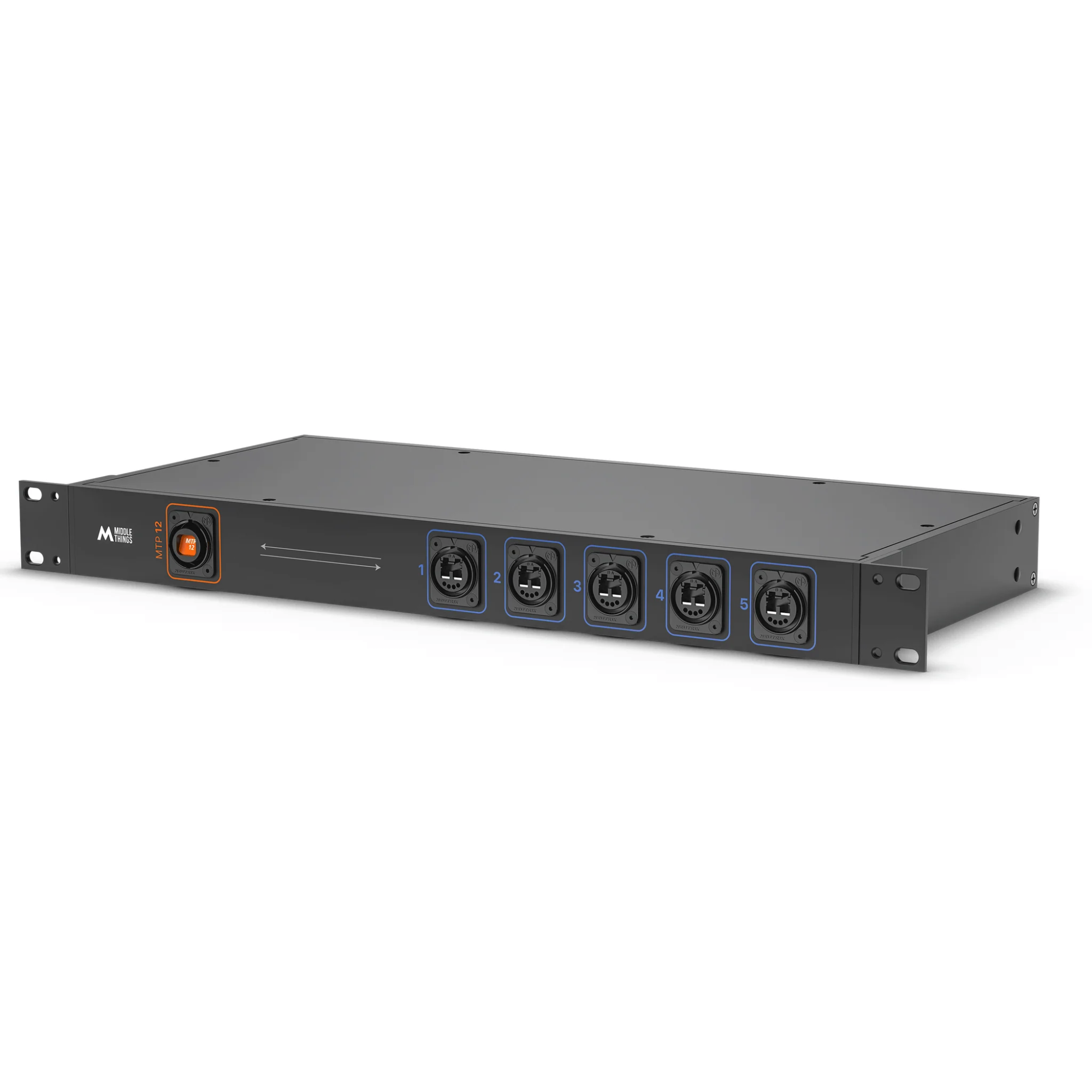

Fiber Bridge 5 12G

Middle Things Fiber Bridge 5 12G, Supports 3G, 6G, 12G Signals, 10/100/1000 Mb/s Full/Half Duplex

The Fiber Bridge 5 splits a Neutrik opticalCON MTP® 12 fiber cable into 5 different OpticalCON Duo pairs + LAN, and vice versa (reversible)

Stage box with reversible design
The Fiber Bridge 5 allows you to have only one cable running from the control room to the stage.
On the stage, the Fiber Bridge 5 acts as a stage box that splits the Neutrik opticalCON MTP® 12 fiber cable into 5 different OpticalCON Duo pairs + LAN, and vice versa.
You can also use it in reverse and merge 5 OpticalCON Duo pairs + LAN into one single opticalCON MTP® 12 fiber cable .

Can run with zero power
The Fiber Bridge is a passive splitter, meaning that no power is required to operate it.
However, if you plan to use the LAN connection, you need to provide +12V DC power using the barrel jack connector.

Rugged fiber connector
The opticalCON MTP® 12 connector makes the Fiber Bridge compatible with the rugged opticalCON MTP® 12 cable drums by Neutrik, designed for field use and tough handling.
The connector has a built-in automatic shutter that protects the 12 fiber cores as soon as the cable is disconnected.
