ez-CGER VM4

Name: ez-CGER VM4
Brand: Lumantek
SKU: ez-CGER VM4
Price: 3473.79 EUR
Availability: OutOfStock

Lumantek

4 Channels FullHd video switcher with scalers on each channel

go to the technical sheet

-2.5%

Save 2.5%

€ 3.473,79

€ 3.231,43 VAT excl.

€ 3.562,86

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

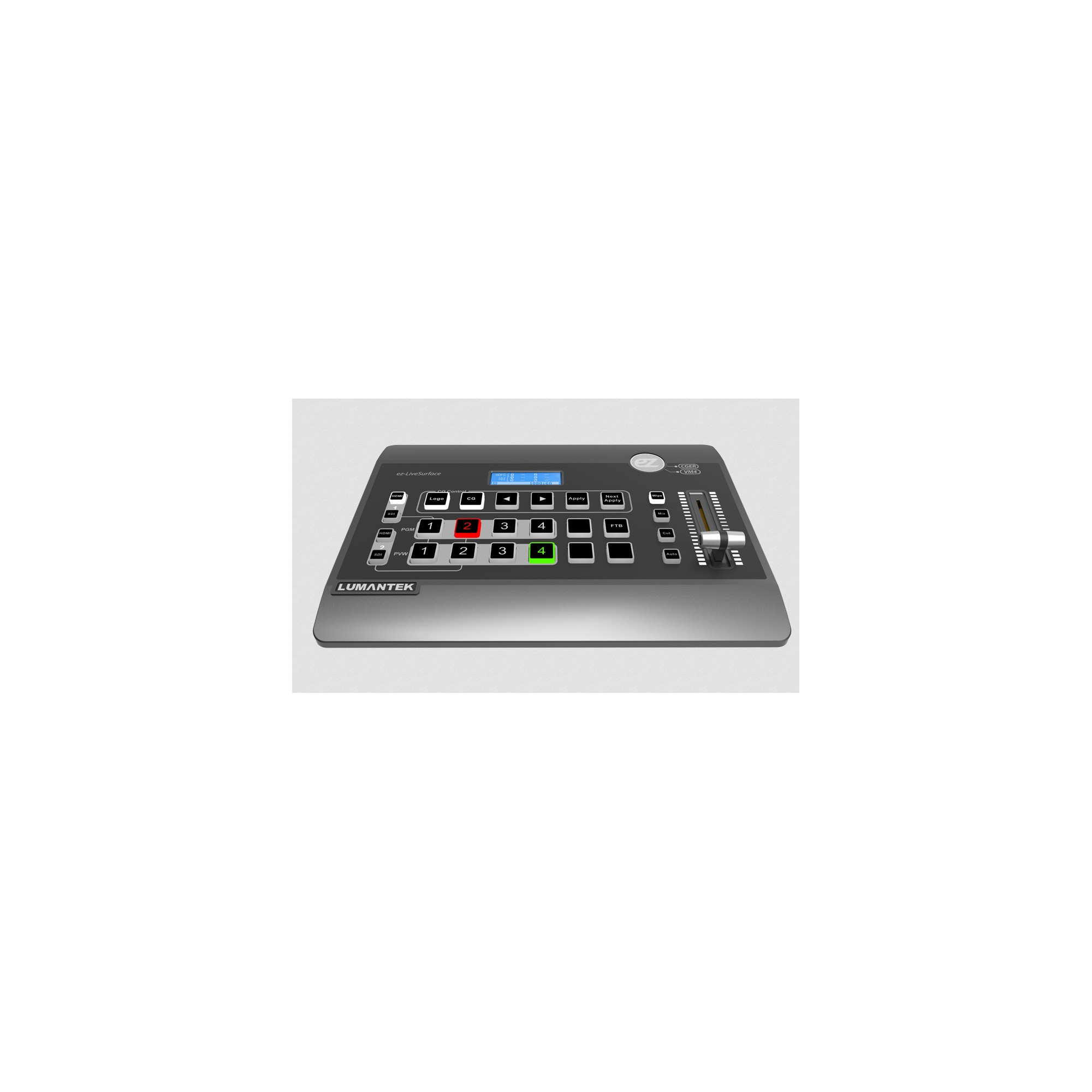

The most real innovated multi-camera live graphics production system based on video switcher. You can create impressive HD CG on live events, houses of worships, presentation and sports events. It's just like a professional television studio. Simply enjoy seamless video switching between multiple HD video sources through HD-SDI and HDMI. ez-CGER (Model : VM4) let you tell your story effectively.
Using a single console, you can control both the video switching and computer graphics. There is no need to check the switcher and the computers during live events. You only need one console.
LUMANTEK provides complimentary CG software, ez-CGER, available for download from LUMANTEK website. It has a very easy user interface, and you will be able to quickly learn how to use the software.
There are 2 output ports with scaling capabilities. 1 x VGA and 1 x HDMI. You can change the resolution as needed.

Cables & Connectors

Teradek

Bolt D-TapLemo Cable

€ 128,83 VAT included

Available in 14 days

Input Video:
2 x HDMI/SDI interchangeable
2 x SDI
1 x Fill & Key Input : USB 3.0
Audio:
1 couple of XLR for external audio
Computer Graphics:
1 x USB 3.0
Control:
Output Video:
1 x VGA (with scaler)
1 x HDMI (with scaler)
1 x SDI
Output Video Output: HD -SDI (BNC 75 Ohm) x1
Multiview Output : USB 3.0 x 1, (1920x270P @30/25, 1280x180p @60/50)
USB Devices USB 3.0 Video Streamer Device : Fill& Key Input, Multiview Output
USB 2.0 USB to Serial (Com Port) Device : Control
USB 2.0 USB to SPI Device : Firmware Update
Software OS : Windows7, Windows8, 32bit/64bit
CPU : Intel i5 2.8 GHz & Abovle
USB 3.0 Host controller
Internal Video Processing 4:2:2 10 bit
Input Resolution Supported 1920 x 1080i @59.94/60/50 - 1280 x 720p @59.94/60/50
Management Large "L"logo LED @ front : easy to identify device status
USB @ Rear : easy to use GUI application, Firmware update
Physical Dimension : 44(H) x 483(W) x240(D) (excluding connectors)
Operation Temperature : 0-40 C
Weight : 3.1 Kg
Power Consumption : 30W (max.)
