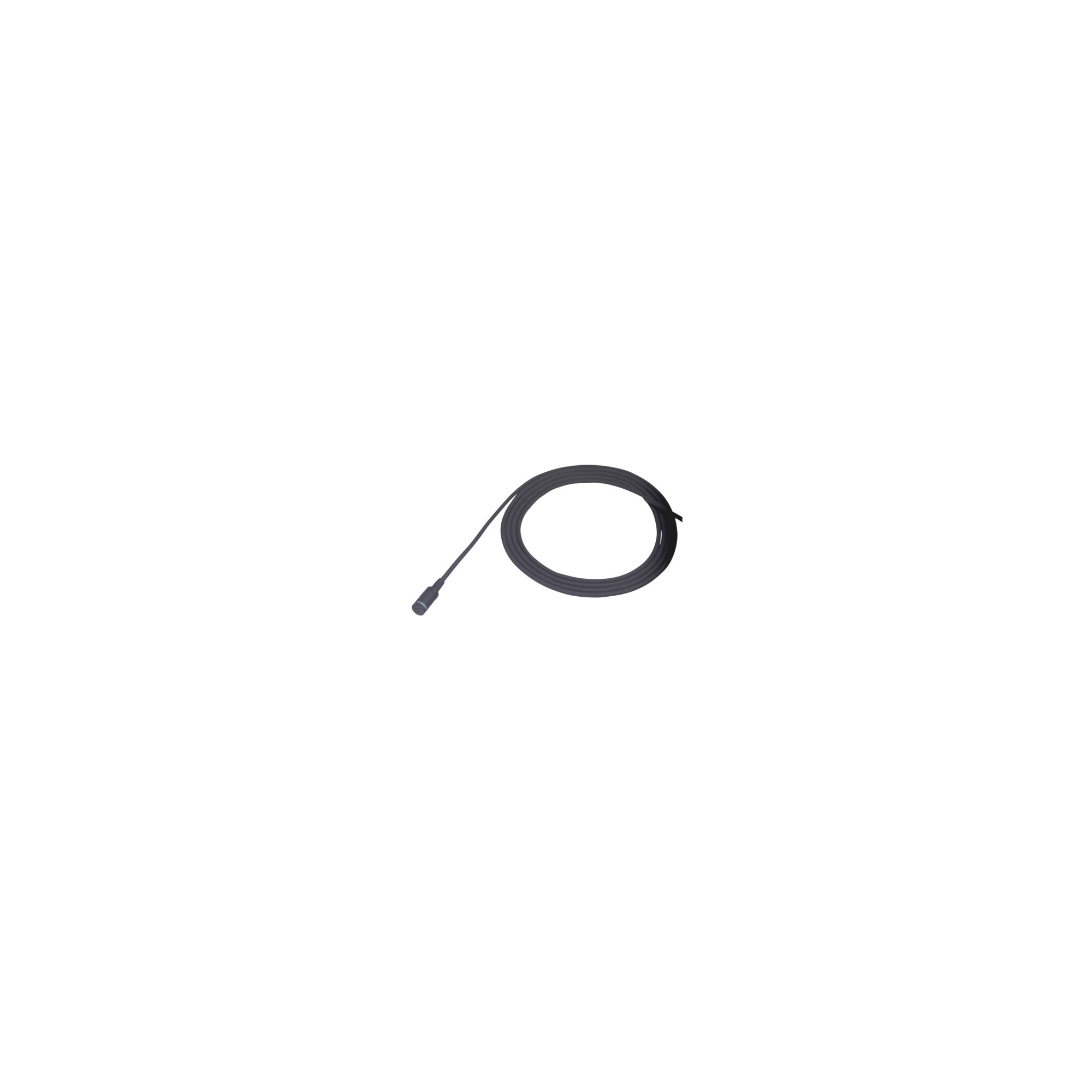

ECM-77B

The ECM-77 is probably the most often seen lapel microphone on TV and it is used widely in both studio production and on location. Its popularity is based on a combination of excellent sound quality, robust construction and an attractive cosmetic design. This microphone is the ECM-77B XLR3 version with power barrel for use as a wired microphone.

This product comes with PrimeSupport - fast, hassle-free repairs and a helpline offering expert technical advice. Which gives you the peace of mind that Sony is looking after your equipment, and your business.

FEATURES
Transducer Electret Condenser
Polar Pattern Omnidirectional
Frequency Response 40 Hz - 20 kHz
Dynamic Range (Typical) > 90 dB
Signal-to-Noise Ratio 64 dB, (@ 1 kHz)
Maximum Input Sound Level 120 dB, (@ 1 kHz, 1% THD)
Power Requirements ''AA'' Battery (1.5v DC), or Phantom Power 48v DC
Output Impedance 150 Ohms, (+/-20%, 1 kHz Balanced)
Output Connectors XLR-3M Type
Pad None
Low Frequency Roll-Off None
Applications Radio, Television and Broadcast.
Dimensions Microphone: .5 x .25" (12.5 x 5.6mm) LxDiameter
Power supply: 5.25 x .82 (131.5 x 20mm) LxW
Cable: 10'' x .09" (3m x 2.3mm) LxW
Weight Microphone: 0.053 oz. (1.5 g)
Power Supply: 4.2 oz. (120 g)
