Splitter HDMI 2.0 18G 4 Port
Splitter HDMI 2.0 18G 4 Port
Previous keyboard_arrow_left
Next keyboard_arrow_right
Splitter HDMI 2.0 18G 4 Port
Splitter HDMI 2.0 18G 4 Port

Splitter HDMI 2.0 18G 4 Port

Lindy

4002888382366

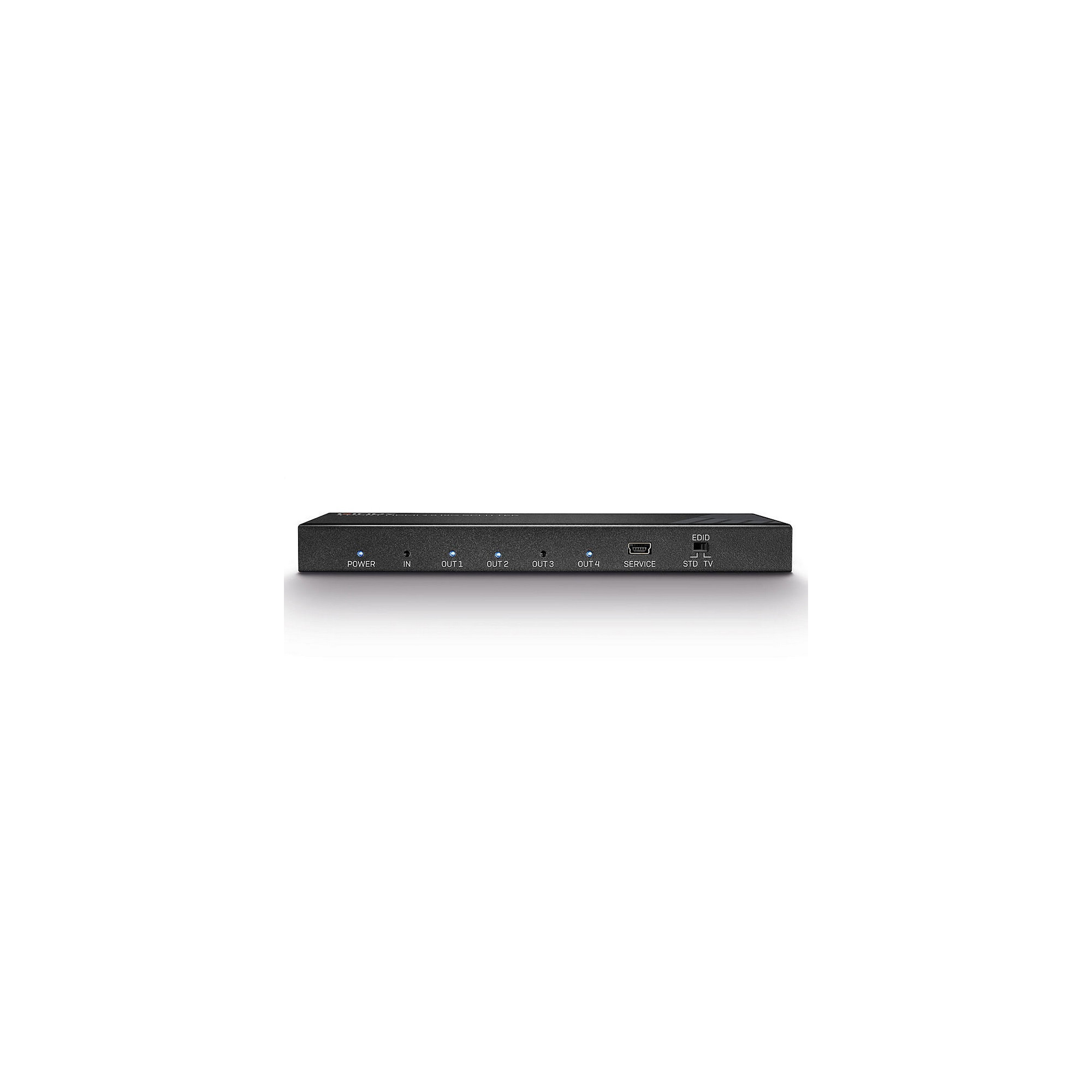

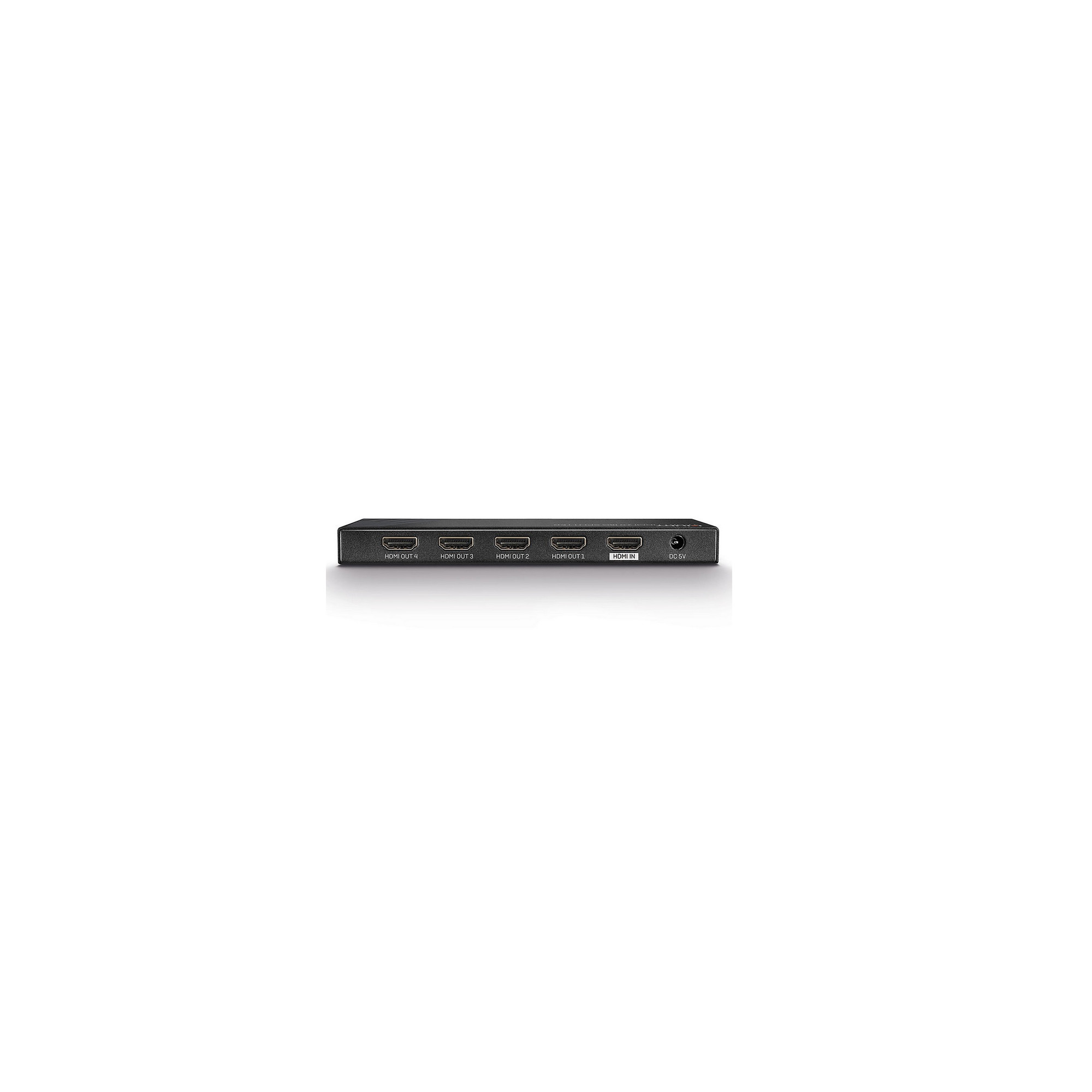

4 Port HDMI 2.0 18G Splitter
go to the technical sheet
€ 96,26

€ 89,54 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
Split a single HDMI 2.0 source across 4 HDMI displays
Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
HDCP 2.2 support for enhanced compatibility
EDID Management for hassle free installation
2 Year Warranty


The Lindy 4 Port HDMI 2.0 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

Specifications

AV Interface: HDMI
Interface Standard: HDMI 2.0
Supports Bandwidth: 18Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Supported Audio: Audio Pass-through
Separate Audio Ports: -
CEC Support: -
Serial Interface: -
Special Features: EDID emulation

Connectors

Input: 1 x HDMI (Female)
Output: 4 x HDMI (Female)
Control: -
Power: 5.5/2.1mm DC socket

Physical Properties

Dimensions (approx.) WxDxH: 163x63x16mm (6.42x2.48x0.63in)
Housing Material: Metal
Net Weight: 0.373kg (0.82lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (Non-condensing)
Power Requirements: 5VDC 1A
Colour: Black

Miscellaneous

Packaging Type: Carton box
Packaging Dimensions: 248x55x183mm (9.76x2.17x7.2in)
Gross Weight: 0.526kg (1.16lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

HDMI Splitter
Multi-country PSU (UK, EU, US & AUS)
Lindy Manual
