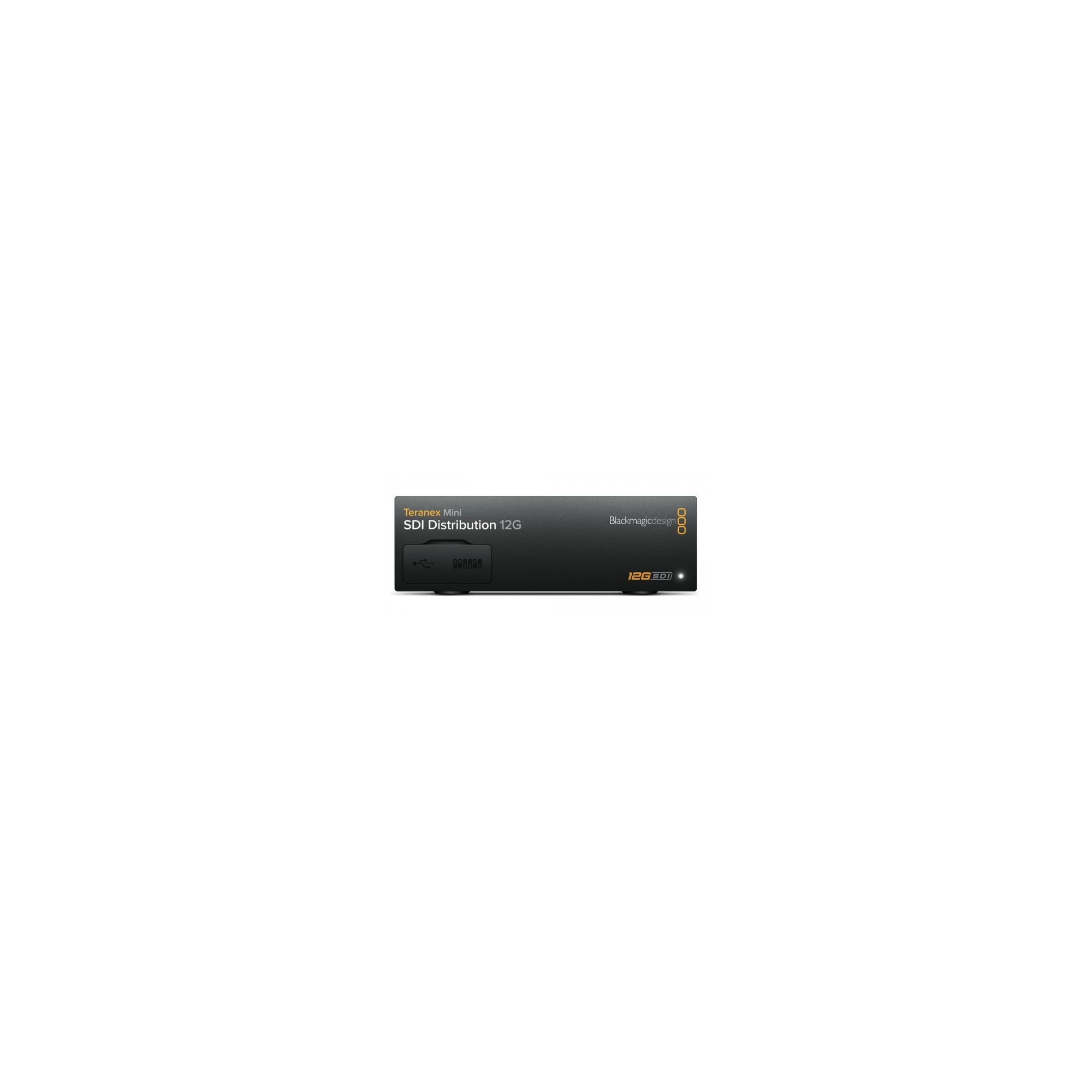

Teranex Mini - SDI Distr 12G

Connections SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
Multi Rate Support: Automatic switching between SD/HD/2K and 4
Updates and Configuration: USB or Ethernet
Re-Clocking: Yes
Standards SD Format Support: 525/29.97 NTSC, 625/25 PAL
HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2K Format Support: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,
Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.
4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082
SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space: YUV & RGB
Software Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade: Via included updater application.
Settings Control Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption: 18 Watts
Operational Voltage Range: 90 - 240V AC
Environmental Specifications Operating Temperature: 0°to 40°C (32° to 104°F)
Storage Temperature: -20°to 60°C (-4° to 140°F)
Relative Humidity: 0% to 90% non-condensing
What''s Included Teranex Mini - SDI Distribution 12G
Software SD Card
