OG-3GDA-1x9

openGear 1x9 3G-SDI Reclocking DA

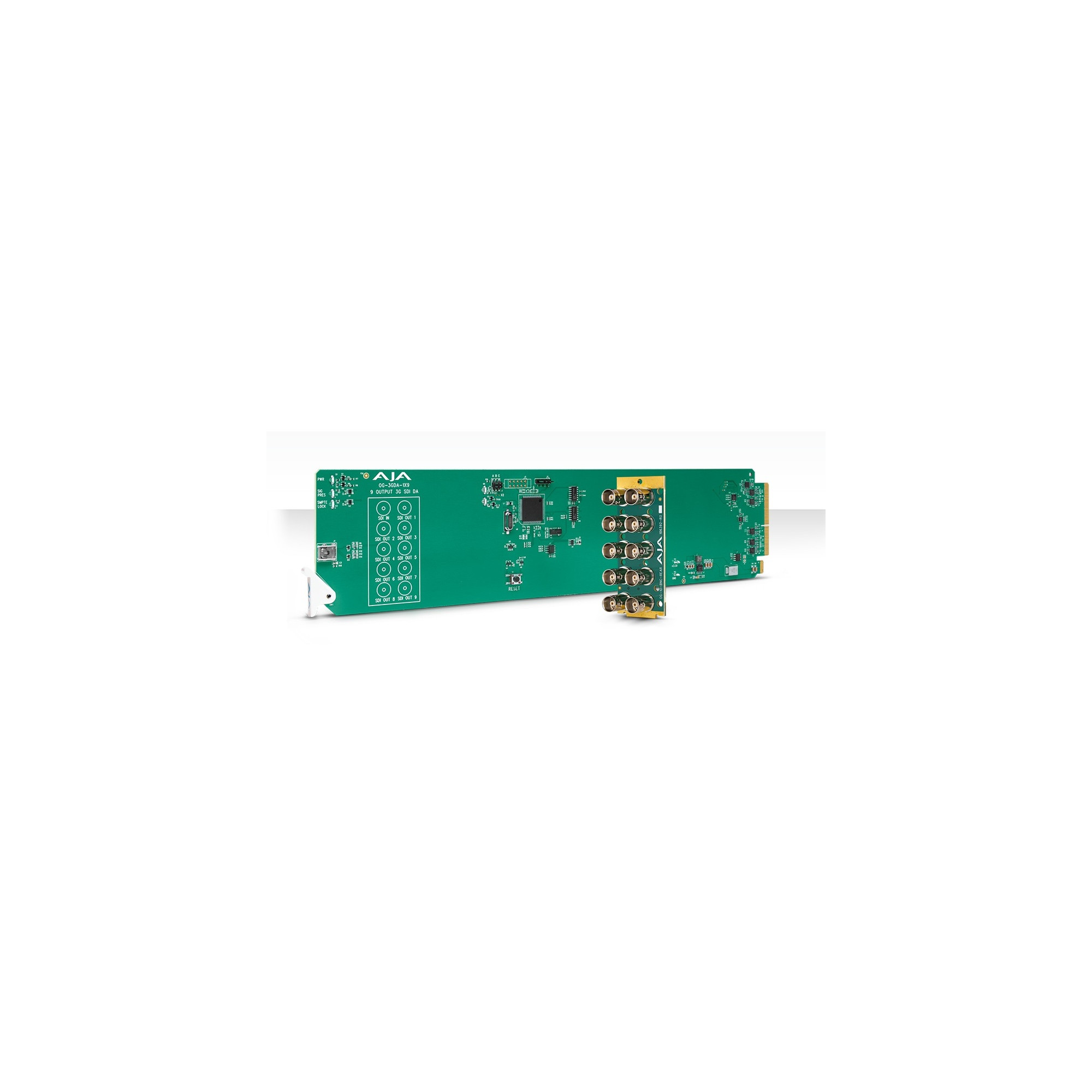

The OG-3GDA-1x9 is a state of the art, openGear compatible, 3G-SDI distribution amplifier. The incoming 3G-SDI signal is reclocked and distributed to each of the nine 3G-SDI outputs, allowing the same signal to be sent to multiple destinations simultaneously.

Designed for use in high density openGear 2RU frames including AJA's OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.


Features

Video Formats: 150 Mbps - 3 Gbps, format agnostic
Input: 1x 3G-SDI BNC
Outputs: 9x 3G-SDI BNC
Support for HDR - High Dynamic Range video
Monitor via openGear DashBoard
Passes embedded audio, all ancillary data including closed caption and time code
Input Present and Input SMPTE Lock LEDs
Automatic input equalization and output reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
Power: 2.5 watts max per card
Hot swappable
Compatible with OGX, OG3 and DFR-8321 openGear frames


The 3G-SDI input is automatically equalized and the outputs are automatically reclocked with best in class input jitter tolerance. SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. One SDI input and nine SDI outputs are provided. A 10x BNC rear openGear connector module is included.
