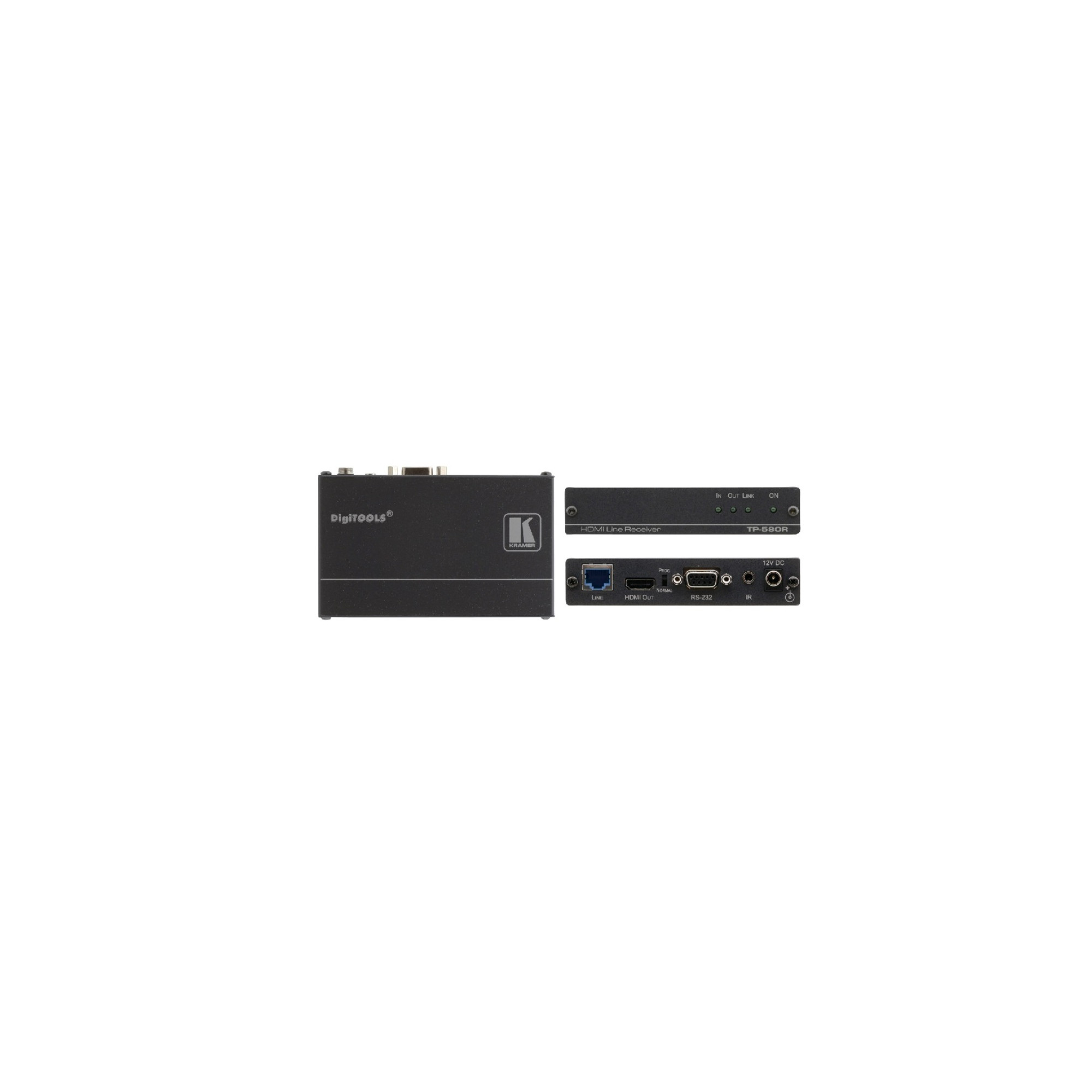

TP-580R

Name: TP-580R
Brand: Kramer
SKU: TP-580R
Price: 275.64 EUR
Availability: InStock

Kramer

4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS-232 & IR over Long-Reach HDBaseT

go to the technical sheet

-2.5%

Save 2.5%

€ 275,64

€ 256,41 VAT excl.

€ 282,70

Available 1 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

TP-580R is a high-performance, long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.
Easy Installation - Compact DigiTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the optional RK-3T rack adapter.

Applicazioni:
Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

INPUTS: 1 HDBT on an RJ-45 female connector.
OUTPUTS: 1 HDMI on an HDMI connector.
PORTS: 1 IR on a 3.5mm mini jack for IR link extension,
1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade.
EXTENSION LINE:: HDBaseT 1.0 compliant;
Up to 40m (130ft) at 4K @60Hz (4:2:0);
up to 70m (230ft) at full HD (1080p @60Hz 36bpp);
Note: When using Kramer HDBaseT cables.
VIDEO: Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
HDMI 2.0 and HDCP 2.2 signal compliance
EXTENDED RS-232: 300 to 115200 baud rate.
CONTROL RS-232: 115200 baud rate.
POWER SOURCE: 12V DC, 2A.
POWER CONSUMPTION: 12V DC, 430mA.
ENCLOSURE: Tools size, Aluminium type.
COOLING: Convection ventilation.
OPERATING TEMPERATURE: 0° to 40°C (32° to 104°F).
STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
HUMIDITY: 10% to 90%, RHL non-condensing.
INCLUDED ACCESSORIES: Power supply unit.
OPTIONAL ACCESSORIES: RK-3T rack adapter.
PRODUCT DIMENSIONS: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT: 0.2kg (0.4lbs) approx.
SHIPPING DIMENSIONS: 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT: 0.7kg (1.6lbs) approx.
