openGear 12G-SDI - Analog Audio Embedder/Disembedder

go to the technical sheet

₦ 2,468,468.00

₦ 2,296,249.04 VAT excl.

Available in 19 days

: Download

Not sure if this is the right product for you? Talk to a consultant

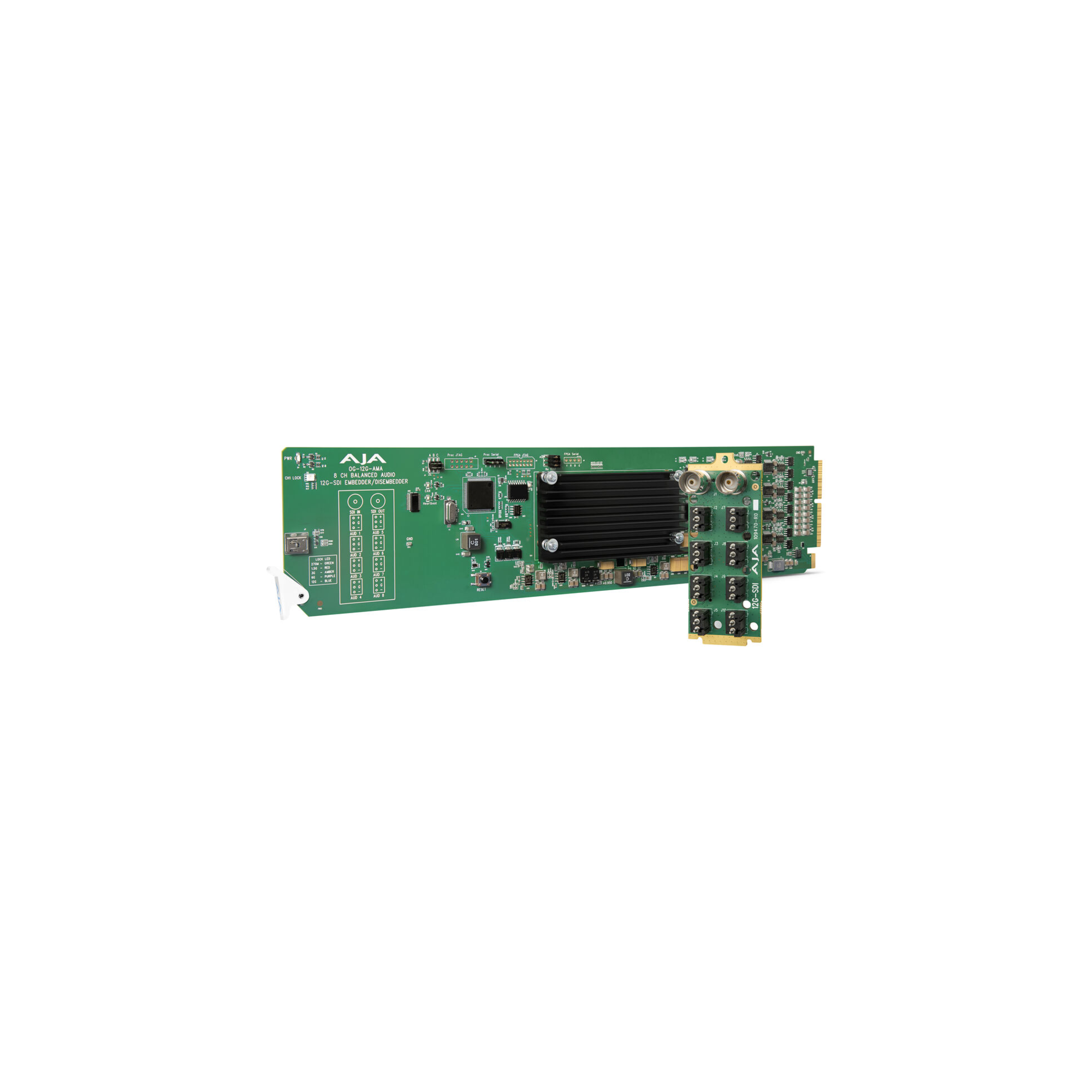

AJA openGear 12G-SDI - Analog Audio Embedder/Disembedder

The OG-12G-AMA is an openGear 8-channel analog audio embedder/disembedder, that supports 12G-SDI input and output up to 4K/UltraHD, and automatically detects and configures to the input video standard.
It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.
Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 12G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.
Designed for use in high density openGear 2RU frames, including AJA's OG-X-FR frame.
Ross DashBoard Software supports Windows®, macOS®, and Linux® and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard's web UI.

DashBoard Software
Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.

OG-12G-AMA Workflow
The OG-12G-AMA in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI.
At the same time, the OG-12G-AMA is disembedding analog audio and sending the analog audio I/O for mixing.
The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI connection of the OG-12G-AMA.
This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio.

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication.
Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

AJA Mini-Matrix
Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix.
AJA products are extensive, and this resource helps you find the right converter for any situation, wherever you are.
Individual products have links back to the main AJA website for more details.

Download

Download (0)

Video Formats
______________________________
, (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
, (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
, (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
, (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
, (HD) 1920x1080i 50, 59.94, 60
, (HD) 1280x720p 50, 59.94, 60
, (SD) 625i 50
, (SD) 525i 59.94
, RGB and YCbCr, 4:4:4/4:2:2, 10-bit

Video Input Digital
______________________________
, 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
, Single Link SD/HD/2K/UltraHD/4K
, Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425

Video Output Digital
______________________________
, 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
, Single Link SD/HD/2K/UltraHD/4K
, Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425

Video Path Delay
______________________________
Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc. Video Out is undefined when no input.
° Video Latency, time measured between video input and video output connector:
, 12G = 4 µsec
, 6G = 4 µsec
, 3G level A = 4 µsec
, 3G level B = 8 µsec
, HD (1.5 Gb) = 8 µsec
, SD (270 Mb) = 22 µsec

Audio Inputs and Outputs
______________________________
, Audio Connectors
, 8 Balanced analog audio connections (4 pairs total)
, Each pair configurable to Inputs or Outputs

Embedded Audio
______________________________
, SMPTE 272M (SD): 20-bit, 48 kHz synchronous
, SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
, Incoming embedded audio can be passed, removed, or overridden
, Up to 16-channels supported
*Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

Path Audio Latency
______________________________
, Embed Path 1100 µsec
, Disembed Path 1200 µsec

Analog Audio Levels
______________________________
° Configured via Mini-Config software:
, Pro 1: 0 dBfs = +24 dBu
, Pro 2: 0 dBfs = +18 dBu
, Pro 3: 0 dBfs = +15 dBu
, Consumer 1: 0 dBfs = +12 dBu

User Interface
______________________________
openGear DashBoard network control software via Windows, macOS, or Linux

Power
______________________________
openGear frame compatible, 8 watts max per card

Environment
______________________________
, Safe Operating Temperature: 0 to 40 C (32 to 104 F)
, Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
, Operating Relative Humidity: 10-90% noncondensing
, Operating Altitude: <3,000 meters (<10,000 feet)

General
______________________________
Size (w x d x h): openGear standard form factor, front slot and rear card | Two slots required for each card
Weight: 0.5 lb (0.3 kg)
