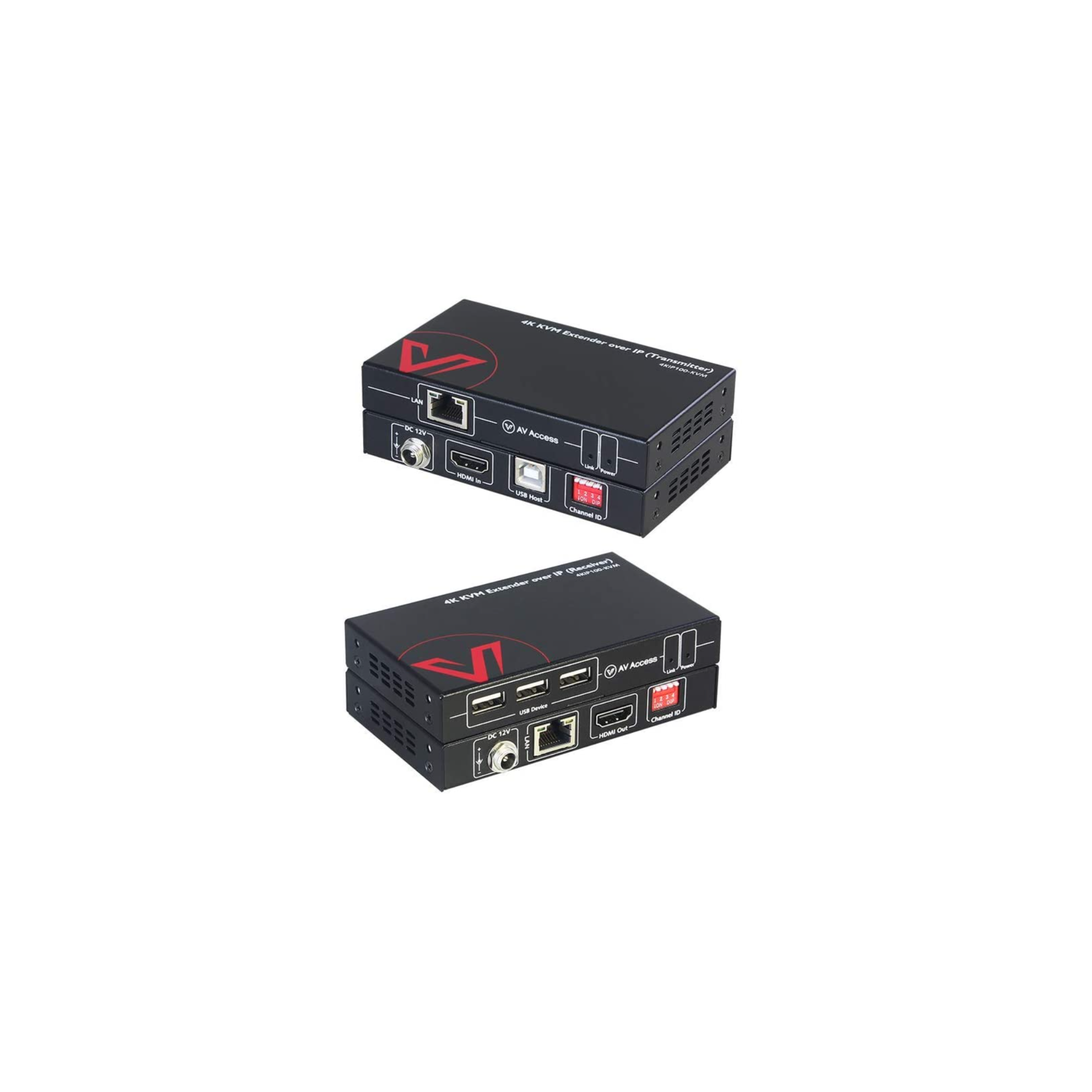

4K HDMI KVM Extender over IP

Name: 4K HDMI KVM Extender over IP
Brand: AVAccess
SKU: 4K HDMI KVM Extender over IP
Price: 288.57 EUR
Availability: OutOfStock

AVAccess

4K HDMI KVM Extender over IP/TCP

go to the technical sheet

€ 288,57

€ 268,44 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

4K UHD & 120Hz High Refresh Rate:
Transmits 4K@30hz HDMI signal up to 120m/390ft over a single CAT5e/6/7 Ethernet cable; also supports 1080P@120Hz and 7.1-channel audio for wonderful game experience.
3-Port USB 2.0 Hub:
1x USB host port on the transmitter and 3x USB device port on the receiver. Remotely control your source device with keyboard, mouse and other USB 2.0 peripherals (high speed up to 480Mbps).
Multi-User Control of Remote PCs:
Deploy up to 16 sets in the same network for multi-user control. To route the signal from a transmitter (TX) to a receiver (RX), toggle each DIP Switch in RX to the same position of TX.
Excellent Compatibility:
Works with PC, PS, Xbox with keyboard, mouse and gamepad. Compatible with all operating systems, like Windows, Mac, Linux, etc. No driver required, just plug and play.
High Reliability:
Certificated by CE, FCC. Built-in superior surge/ESD protection. Comes with mounting ears for easy installation.

Video

Lindy

HDMI extender Gigabit IP Rx

€ 102,31 VAT included

Available in 14 days

Transmitter
Technical
Input/Output 1 x HDMI IN (19-pin female HDMI Type-A)
1 x USB HOST (female USB Type-B)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
1 x LAN (RJ45)
Input Signal Type HDMI 1.4b
Input Resolution Supported 640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x21602,3,5, 4096x21602,3,5
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Input Audio Format Supported PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate 9 Gbps
Maximum Pixel Clock 300 MHz
Output Signal Type Compressed IP streams
Transmission Distance Cat 5e or above: 120m/395ft
HDMI: 15m/49ft
General
Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to +158 °F), 10% to 90%, non-condensing
ESD Protection Human Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power Supply DC 12V 1A
Power Consumption <2.5 W
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41'''' × 0.70'''' × 2.57''''
Unit Weight
(without accessories)
0.18kg/0.40lb
Receiver
Technical
Input/Output 1 x LAN (RJ45)
1 x HDMI OUT (19-pin female HDMI Type-A)
3 x USB DEVICE (female USB Type-A)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
Input/Output Signal Type
Output Resolution Supported 640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x2160P2,3,5, 4096x2160P2,3,5
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Output Audio Format Supported PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate 9 Gbps
Maximum Pixel Clock 300 MHz
Transmission Distance Cat 5e or above:120m/395ft
HDMI: 15m/49ft
USB Consumption Recommended no more than 0.5A per USB port
Transmission Distance Cat 5e or above:120m/395ft
HDMI: 15m/49ft
USB Consumption Recommended no more than 0.5A per USB port
General
Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature -20 to +70°C (-4 to +158 °F), 10% to 90%, non-condensing
ESD Protection Human Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power Supply DC 12V 1A
Power Consumption < 4W (without USB Consumption)
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41'''' × 0.70'''' × 2.57''''
Unit Weight
(without accessories)
0.18kg/0.40lb
