12GDA-R0

Name: 12GDA-R0
Brand: AJA
SKU: 12GDA-R0
Price: 1275970 NGN
Availability: OutOfStock

AJA

12G/6G/3G/HD/SD-SDI Distribution Amplifier

go to the technical sheet

₦ 1,275,970.00

₦ 1,186,949.00 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

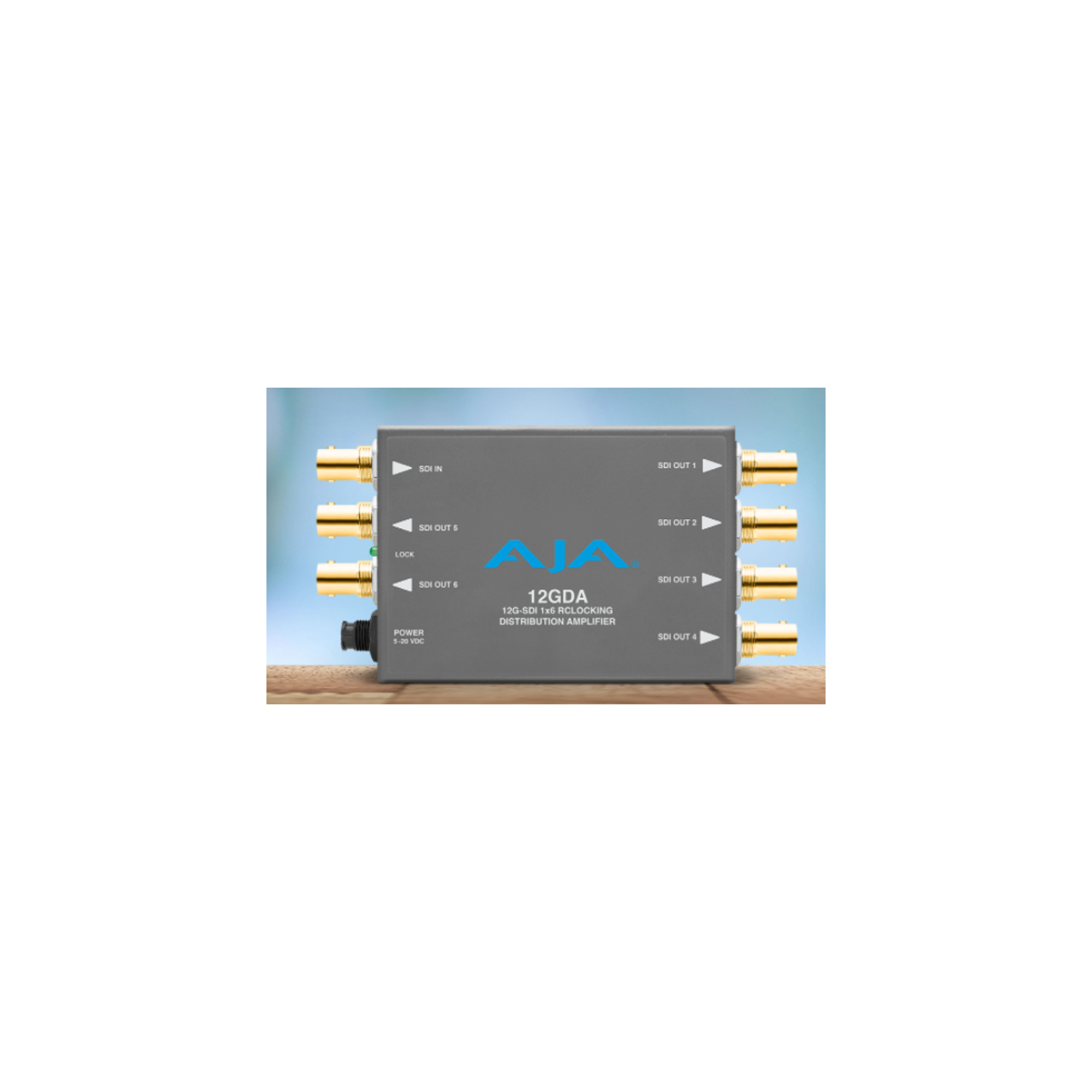

12GDA is a miniature 1x6 12G-SDI reclocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, reclocking and cable equalization, as well as a throw down package and LED signal detection indicator.

Features
Compact 12G-SDI distribution
Six separately buffered outputs
Miniature size
12G cable equalization (1694 coax)
12 Gbps, 70m
6 Gbps, 120m
3 Gbps, 190m
1.5 Gbps, 195m
270 Mbps, 405m
12G/6G/3G/HD/SD-SDI input, auto sensing
Passes all ancillary data
DWP-U-R1 power supply included

Video Formats
• 100 Mbps - 12 Gbps, format agnostic

Video Input Digital
• 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Video Output Digital
• 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Cable Equalization (Belden 1694A coax)
• 12 Gbps, 70m
• 6 Gbps, 120m
• 3 Gbps, 190m
• 1.5 Gbps, 195m
• 270 Mbps, 405m

Reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• All other rates are passed through and not reclocked

Power
• +5-20VDC, regulated, 3 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

Size (w x d x h)
• 5.8" x 3.1 x 1" (147mm x 79mm x 25mm)

Weight
• 0.7 lb (0.3 kg)
