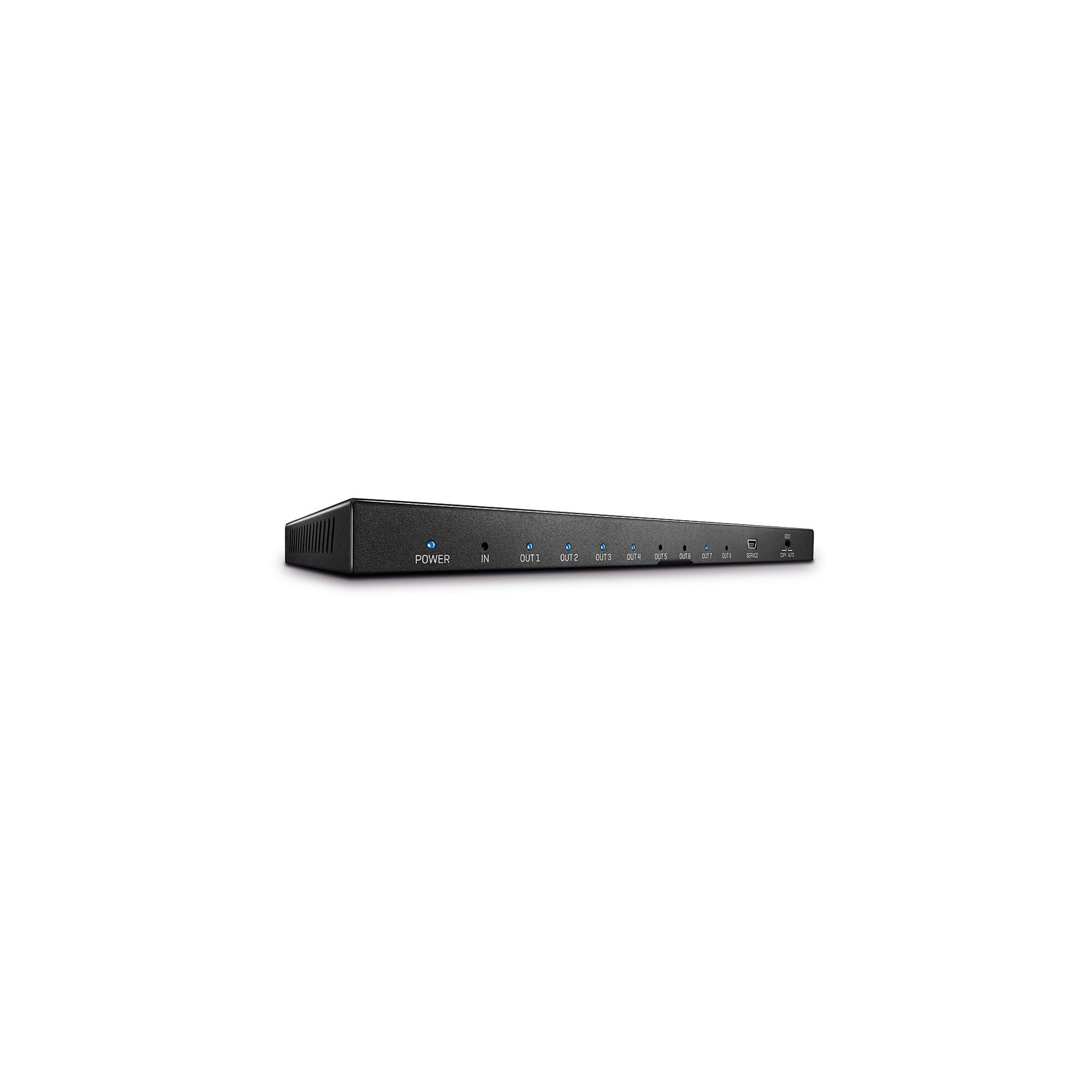

8-port HDMI 2.0 splitter
Lindy
Supports resolutions up to 4K @ 60Hz 4: 4: 4 with HDR
HDCP 2.2 support
EDID data management
2 year guarantee
This 18G HDMI Splitter is a compact, high-quality solution for distributing 18G HDMI 2.0 signals from a single source device to multiple monitors. With support for resolutions up to 4K 60Hz 4: 4: 4 8bit, this splitter is the ideal solution in retail scenarios, medical facilities or public commercial establishments for the reproduction of video signals on different monitors at high resolutions. Additional High Dynamic Range (HDR) support allows you to view video content with higher brightness, sharper contrast and a much wider color range for highly realistic colors.
Cascaded up to three levels for large multi-screen installations such as in shopping malls, airports, train stations or stock exchange offices.
HDCP 2.2 support excludes any problem in playing a wide range of protected content with connection to source devices such as satellite receivers, decoders, Blu-Ray players and 4K HDR media players, while EDID data management via selectors ensures maximum compatibility with monitors. The robust and compact design allows for installation in hidden places and confined spaces, while the screw connector of the power supply allows it to be secured to the unit, preventing it from being accidentally extracted
Specifications
AV Interfaces: HDMI
Interface standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum resolution: 3840x2160 @ 60Hz 4: 4: 4 8bit
HDCP Support: 2.2
Audio Support: Pass-through audio
CEC Support: -
Separate Audio Ports: -
Serial interface: -
Special features: EDID emulation
Connectors
Inputs: 1 x HDMI (Female)
Outputs: 8 x HDMI (Female)
Check: -
Power supply: 5.5 / 2.1mm DC
Physical characteristics
Dimensions (approx.) LxWxH: 243x102x16mm (9.57x4.02x0.63in)
Material: Metal
Net Weight: 0.728kg (1.6lb)
Operating temperature: 0 ° C - 40 ° C (32 ° F - 104 ° F)
Storage temperature: -20 ° C - 60 ° C (-4 ° F - 140 ° F)
Humidity rate: 20 - 90% RH (non-condensing)
Power supply: 5VDC 1A
Black colour
Various
Packaging type: Cardboard box
Packaging Dimensions: 277x68x183mm (10.91x2.68x7.2in)
Overall Weight: 0.913kg (2.01lb)
Warranty (Years): 2
Certifications: CE, FCC, RoHS, REACH & California Proposition 65
Package Contents
HDMI splitter
Multi-country power supply (UK, EU, US & AUS)
Manual
