OG-3GDA-2X4

SDI to 3G-SDI and HDMI with Region of Interest scaling. DashBoard support

3G-SDI openGear Distribution Amplifier
2 x SDI BNC Inputs, 8 x SDI BNC Outputs
Embedded Audio, HDR Video Support
Format Agnostic 150 Mb/s to 3 Gb/s Video
Reclocking for Distribution up to 1148'
Card Fits 2 RU openGear Frames
Supports Timecode, Closed Captioning

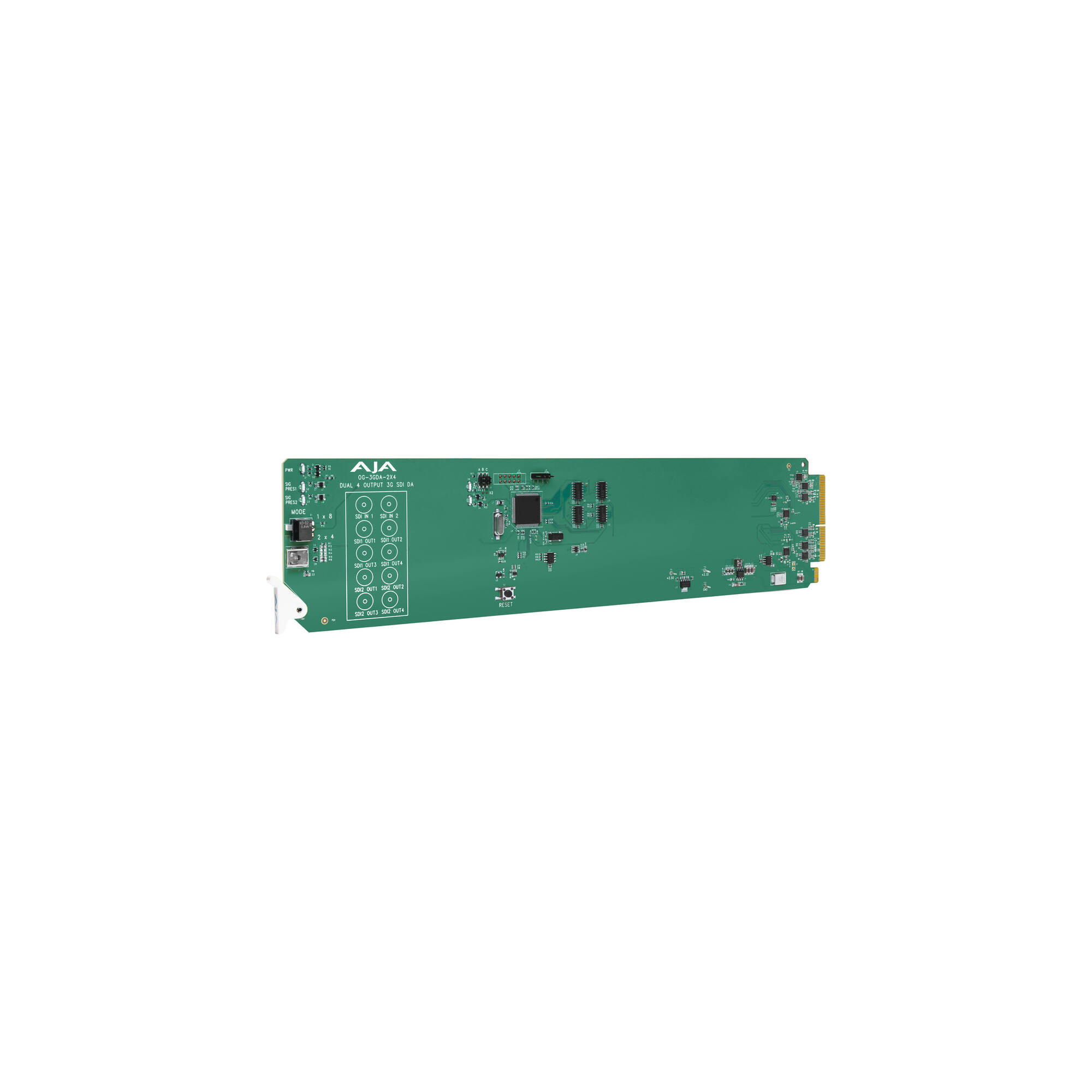

The 2x4 3G-SDI Reclocking Distribution Amplifier Card from AJA is a distribution amplifier in the form of a rackmount card that's compatible with 2 RU openGear frames. It can share the frame with converters made by different manufacturers and is hot-swappable, so it can be pulled out of the rack at any moment without the prerequisite of the rack first being powered off.

The 2x4 card features two SDI inputs and automatically distributes up to 3 Gb/s format-agnostic video to up to eight SDI outputs, and even supports HDR video. Its distribution amplifier function allows it to run in 1x8 or 2x4 mode digital input and output. The converter also features reclocking distribution, reclocking the incoming signal so a 3 Gb/s SDI output can be transmitted up to 394' over 75-Ohm coax cables, which are not included.

In addition to video formats, the OG-3GDA-2X4 card passes embedded audio and all ancillary data such as timecode and closed captioning. When installed, the card can be configured and controlled with DashBoard software for macOS, Windows, or Linux.
OpenGear-compatible 2 RU rackmount SDI distribution amplifier card
Supports two 3G-SDI inputs and automatically distributes format-agnostic video and embedded audio to up to eight 3G-SDI outputs
Multiple input modes: One 3G-SDI in 1x8 mode, two 3G-SDI in 2x4 mode
Multiple output modes: Four 3G-SDI non-inverting in 1x8 mode, two 3G-SDI non-inverting in 2x4 mode
High dynamic range (HDR) video support
Fits 2 RU openGear frames and is hot-swappable
Can work in the same rack as openGear converters made by different manufacturers
Reclocks distribution to output 3 Gb/s SDI video up to 394'
Accepts ASI format and supports ancillary data such as timecode and closed captioning
Configure and control with DashBoard software for macOS, Windows, and Linux
