AJA 3G-AM-XLR AES EMBED/DISEMBED

go to the technical sheet

€ 1.178,76

€ 1.096,52 VAT excl.

Available in 24 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

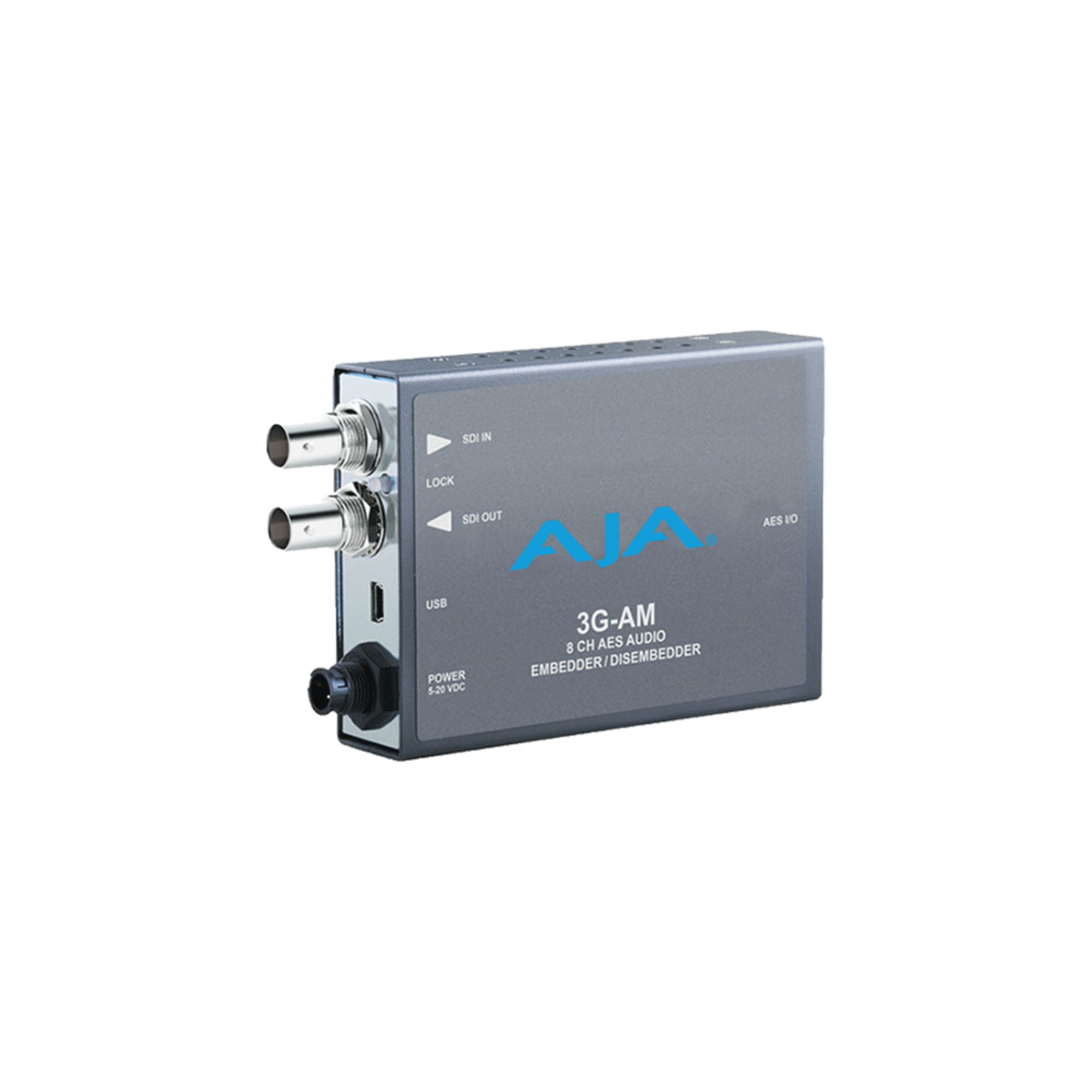

AJA 3G-AM-XLR (3GAMXLR) 3G/HD/SD SDI 8-Channel AES Embedder/Disembedder - XLR Audio Connections. The 3G-AM is an 8-Channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs.
Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable.
AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.

In The box:
1x AJA 3G-AM-XLR AES Embed/Disembed
1x Power Supply

Video Input Formats 1 x 3 Gb SDI (level A or B), (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60. (2K) 2048 x 1080psf 23.98, 24, 25, 29.97, 30. (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60. (HD) 1920 x 1080psf 23.98, 24, 25, 29.97, 30. (HD) 1920 x 1080i 25, 29.97, 30. (HD) 1280 x 720p 50, 59.94, 60. 1 x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30. (2K) 2048 x 1080psf 23.98, 24, 25, 29.97, 30. (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30. (HD) 1920 x 1080psf 23.98, 24, 25, 29.97, 3. (HD) 1920 x 1080i 25, 29.97, 30. (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60. 1 x 270 Mb SDI. (SD) 625i. (SD) 525i

Video Output Formats Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input

Video Latency (time measured between video input and video output connector):
3G level A = 3.2 usec
3G level B = 6.1 usec
HD (1.5 Gb) = 6.3 usec
SD (270 Mb) = 17.2 usec

Video Input SDI, 1 x BNC
3G SMPTE 424/425M
HD SMPTE 292/296M
SD SMPTE 259M

Video Output SDI, 1 x BNC

Audio Inputs and Outputs AES PCM audio, 1 x 25 pin D female connector on converter, 8-Channels in, 8-Channels out, selectable in pairs
Breakout cable provided with 1 x 25 pin D male connector:
4 x XLR female input breakout connectors (AES3 110 ohm)
4 x XLR male output breakout connectors (AES3 110 ohm)

Audio Data Formats AES3-2003
SMPTE 337M

Digital Audio Converters 24-bit

Embedded Audio SMPTE 272M (SD): 20-bit, 48 KHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous
Incoming embedded audio can be passed, removed, or overridden
Up to 16 channels supported
NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8-Channels embedded audio

Embed Path Audio Latency (time measured between audio input and video output connector):
1500 usec (SRC ON)
400 usec (SRC OFF)

Disembed Path Audio Latency 210 usec

User Controls External DIP switch
USB port used with Mini-Config software application to configure device via PC/Mac

Size (w x d x h) 147 x 79 x 25 mm
5.8x 3.1x 1

Power +5-20VDC, 5 watts. power supply required, included with purchase

Environment

Safe Operating Temperature 0 to 40 degrees C
32 to 104 degrees F

Safe Storage Temperature (Power OFF) -40 to 60 degrees C
-40 to 140 degrees F

Operating Relative Humidity 10-90% noncondensing

Operating Altitude 3,000 metres
10,000 feet
