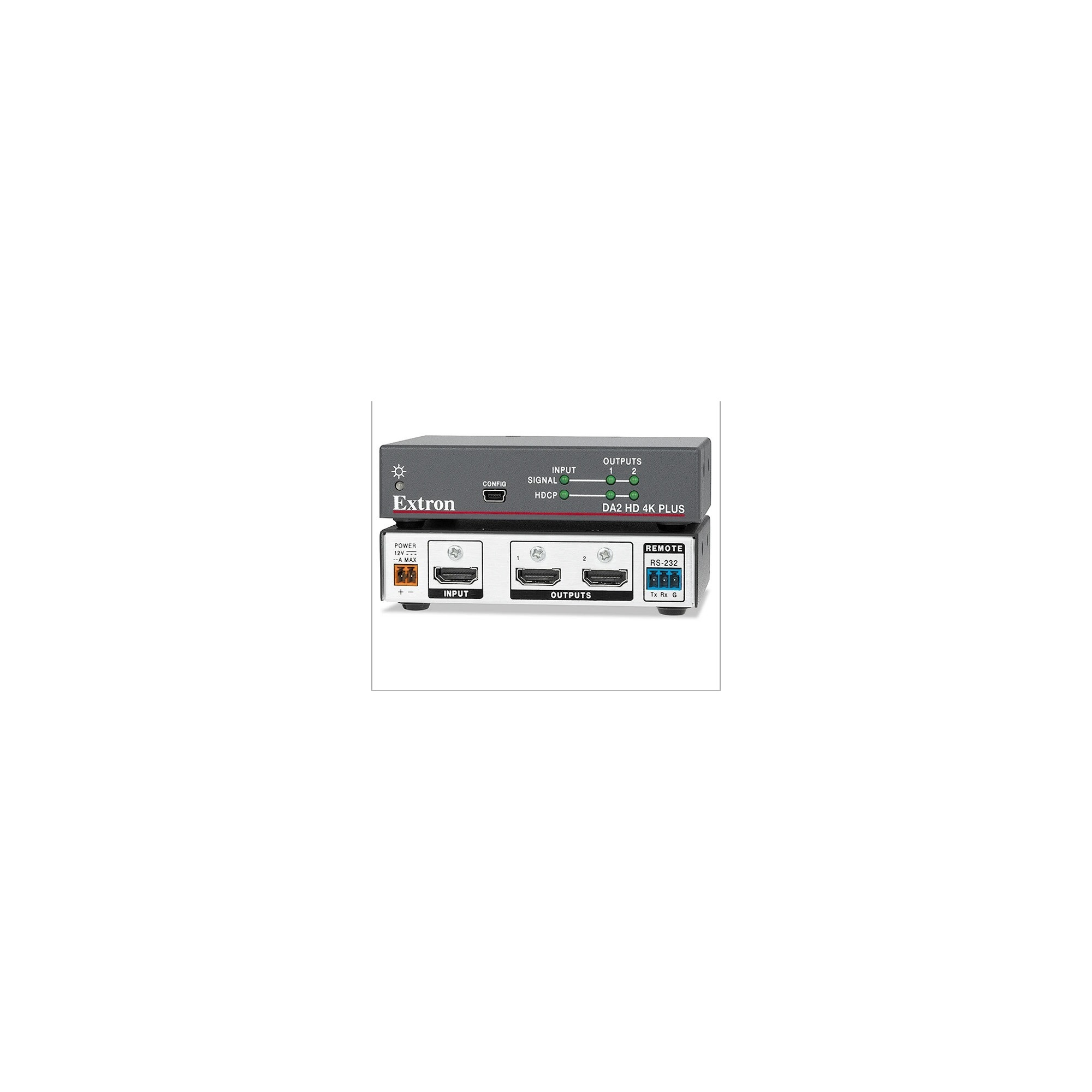

DA2 HD 4K PLUS

Frame rate1 24, 25, 30, 50, or 60 fps
Chroma sampling1 4:4:4, 4:2:2, or 4:2:0
Color bit depth1 8, 10, or 12 bits per color
Signal type HDMI 2.0b, HDCP 1.4 and 2.3
Max. video data rate 18.0 Gbps (6 Gbps per color)
NOTE 1Subject to the maximum data rate limit. Use our calculator (http://www.extron.com/8Kdatarate) to determine video parameters supported by this data rate.
Video
Maximum data rate 18.0 Gbps (6 Gbps per color)
Maximum pixel clock 600 MHz
Resolution range Up to 4096x2160 @ 60 Hz (4K), 3840x2160 @ 60 Hz (UHD),
1920x1200 or 1080p @ 60 Hz
Formats RGB and YCbCr digital video
Standards DVI 1.0*, HDMI 2.0b, HDCP 2.3
NOTE *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input/output.
NOTE Extron strongly recommends compatibility testing while designing, and before installing any 3D or HDR (high dynamic range) system. There are several unique 3D and HDR formats in use by source devices and display manufacturers. The level of 3D and HDR product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Application Engineer for more information.
Video input
Number/signal type 1 single link HDMI (or DVI-D*)
Connectors 1 female 19-pin HDMI type A
Input cable length Up to 15 feet (4 meters) with a 600 MHz signal (100 feet (30 meters) with 165 MHz)
Horizontal frequency 15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency 24 Hz to 240 Hz for resolutions up to 18 Gbps
Video output
Number/signal type
DA2 HD 4K PLUS 2 single link HDMI (or DVI-D*)
DA4 HD 4K PLUS 4 single link HDMI (or DVI-D*)
DA6 HD 4K PLUS 6 single link HDMI (or DVI-D*)
Connectors
DA2 HD 4K PLUS 2 female 19-pin HDMI type A
DA4 HD 4K PLUS 4 female 19-pin HDMI type A
DA6 HD 4K PLUS 6 female 19-pin HDMI type A
Video output power for active cables
DA2 HD 4K PLUS 2.2 W total power for all HDMI ports, 1.1 W per HDMI port max
DA4 HD 4K PLUS 4.3 W total power for all HDMI ports, 1.1 W per HDMI port max
DA6 HD 4K PLUS 6.6 W total power for all HDMI ports, 1.1 W per HDMI port max
Audio input
Number/signal type 1 HDMI, embedded
Connector 1 female HDMI type A
Supported formats
Analog de-embedding LPCM-2Ch
HDMI pass-through LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats
DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats
Audio output
Number/signal type
DA2 HD 4K PLUS 2 HDMI, embedded
DA4 HD 4K PLUS 4 HDMI, embedded
DA6 HD 4K PLUS 6 HDMI, embedded
Connectors
DA2 HD 4K PLUS 2 female 19-pin HDMI type A
DA4 HD 4K PLUS 4 female 19-pin HDMI type A
DA6 HD 4K PLUS 6 female 19-pin HDMI type A
Communications
Serial control port RS-232, 3.5 mm, 3-pole captive screw connector
Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, non-parity
Serial control pin configuration 1 = Tx, 2 = Rx, 3 = GND
USB control port 1 front panel, female, mini USB B
USB standards USB 2.0
Program control Extron Simple Instruction Set (SIS™)
General
Power
DA2 HD 4K PLUS External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts
DA4 HD 4K PLUS and DA6 HD 4K PLUS Internal
Input: 100-240 VAC, 50-60 Hz
Power consumption
DA2 HD 4K PLUS
Device 3.6 watts
Device and power supply 4.8 watts
DA4 HD 4K PLUS 8.6 watts
DA6 HD 4K PLUS 10.6 watts
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling Convection, no vents
Thermal dissipation
DA2 HD 4K PLUS
Device 10.2 BTU/hr
Device and power supply 14.3 BTU/hr
DA4 HD 4K PLUS 25.5 BTU/hr
DA6 HD 4K PLUS 30.5 BTU/hr
Mounting
Rack mount Yes, with optional rack shelf kit
Enclosure type Metal
Enclosure dimensions
DA2 HD 4K PLUS 1.00" H x 4.30" W x 3.00" D (one quarter rack wide)
25 mm H x 109 mm W x 76 mm D (depth excludes connectors)
DA4 HD 4K PLUS and DA6 HD 4K PLUS 1.75" H x 8.75" W x 6.00" D (1U high, half rack wide)
44 mm H x 222 mm W x 152 mm D (Depth excludes connectors)
Product weight
DA2 HD 4K PLUS 0.35 lbs (0.2 kg)
DA4 HD 4K PLUS and DA6 HD 4K PLUS 1.6 lbs (0.7 kg)
