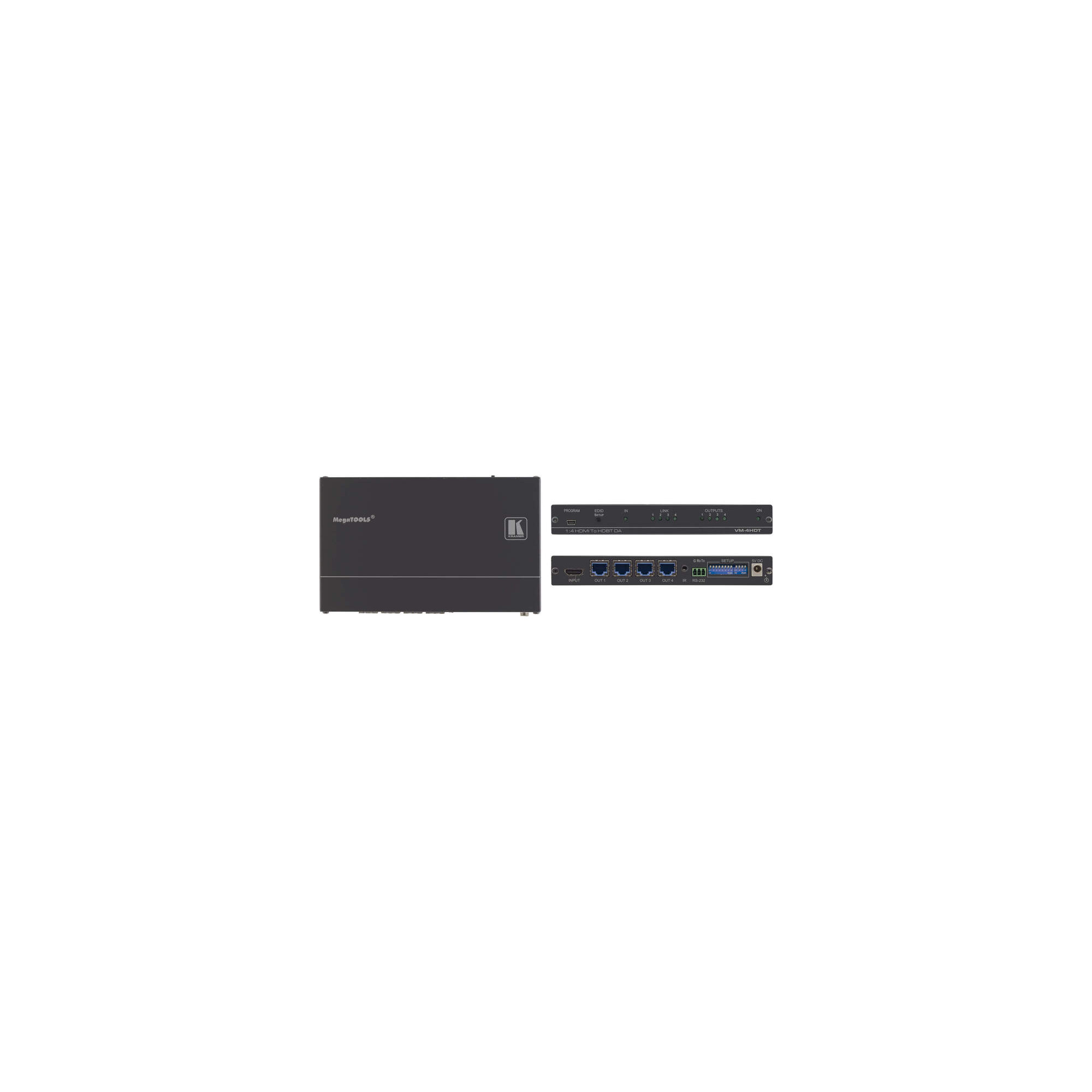

VM-4HDT is a high-quality, long-reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one HDMI input, with IR and RS-232 control signals, converts them to HDBaseT extension line signal and distributes it to four HDBaseT outputs that connect to compatible HDBaseT receivers such as the TP-580R. VM-4HDT distributes HDMI signals with up to 4K video resolution, along with their extension over HDBaseT.
1:4 HDMI extender distributor
Up to 70m (230ft) at 1080p
Up to 40m (130ft) at 4K (4:2:0)
Up to 4K (4:2:0) 24bpp video resolution
HDMI 2.0, HDCP 1.4, HDBaseT 1.0 compliance
Size — MegaTOOLS® — Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Audio — E
