WP-572EU W

HDMI HDCP 2.2 Wall Plate Receiver over PoC Long-Reach DGKat - WP-572/EU

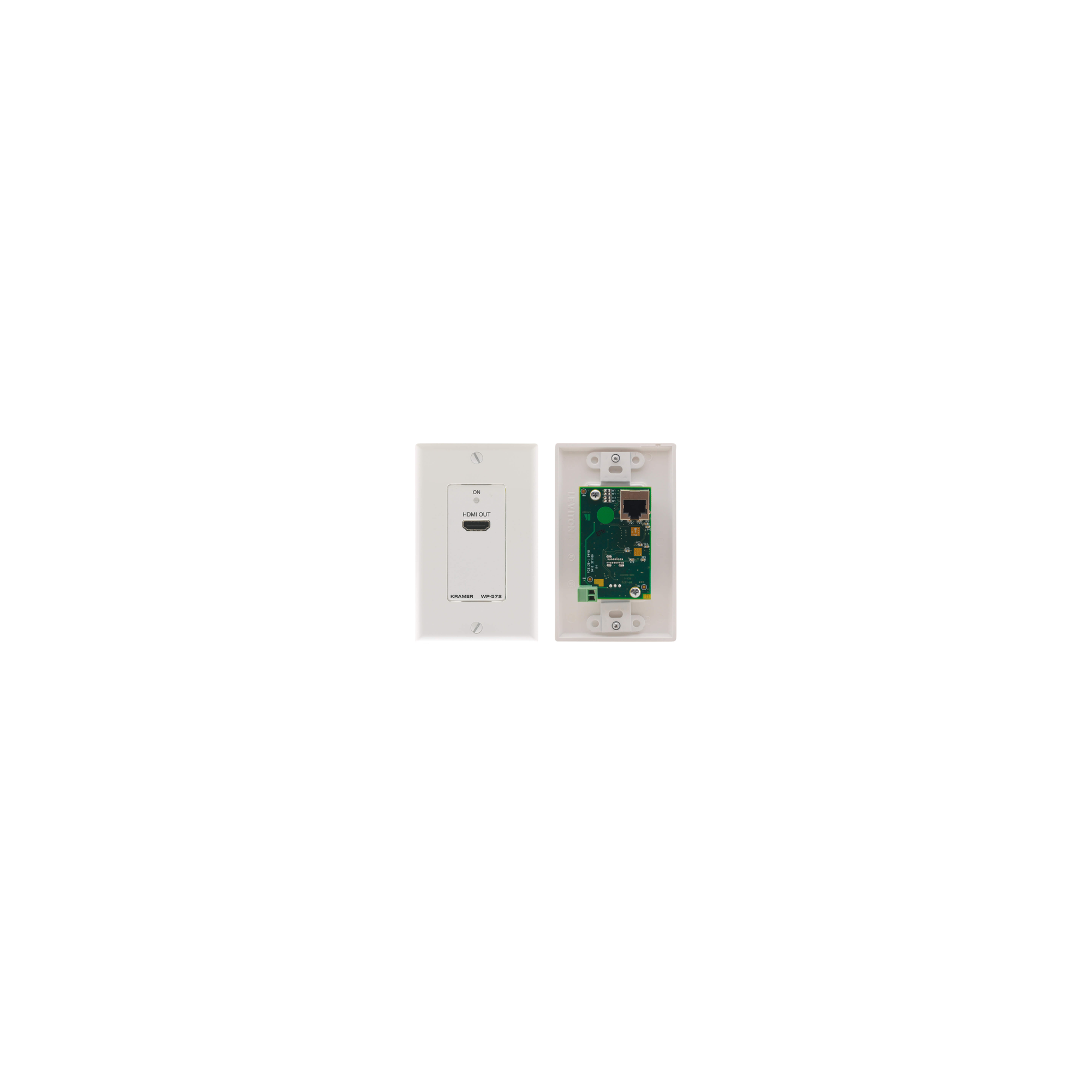

The WP-572 is a PoC DGKat™ twisted pair receiver for HDMI signals.
The WP-571 converts an HDMI signal to a single twisted pair signal and the WP-572 converts the twisted pair signal back to an HDMI signal.

Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).

HDTV Compatible

HDCP Compliant.

DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.

HDMI Support - x.v.Color™, up to 7.1 Uncompressed Audio Channels.

3D Pass-Through.

System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used.
If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.

EDID PassThru - Passes EDID signals between the source and display.

ON LED - Lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.

Power Connect™ System - A single connection to the transmitter powers the receiver.

* Available in: UK, US-D
