Eco Capture Dual HDMI 11510

Name: Eco Capture Dual HDMI 11510
Brand: Magewell
SKU: Eco Capture Dual HDMI 11510
Price: 585014 NGN
Availability: OutOfStock

Magewell

EAN: 6936572400969

Dual HDMI M.2 Two-Channel 2K Capture Card - 11510

go to the technical sheet

₦ 585,014.00

₦ 544,199.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

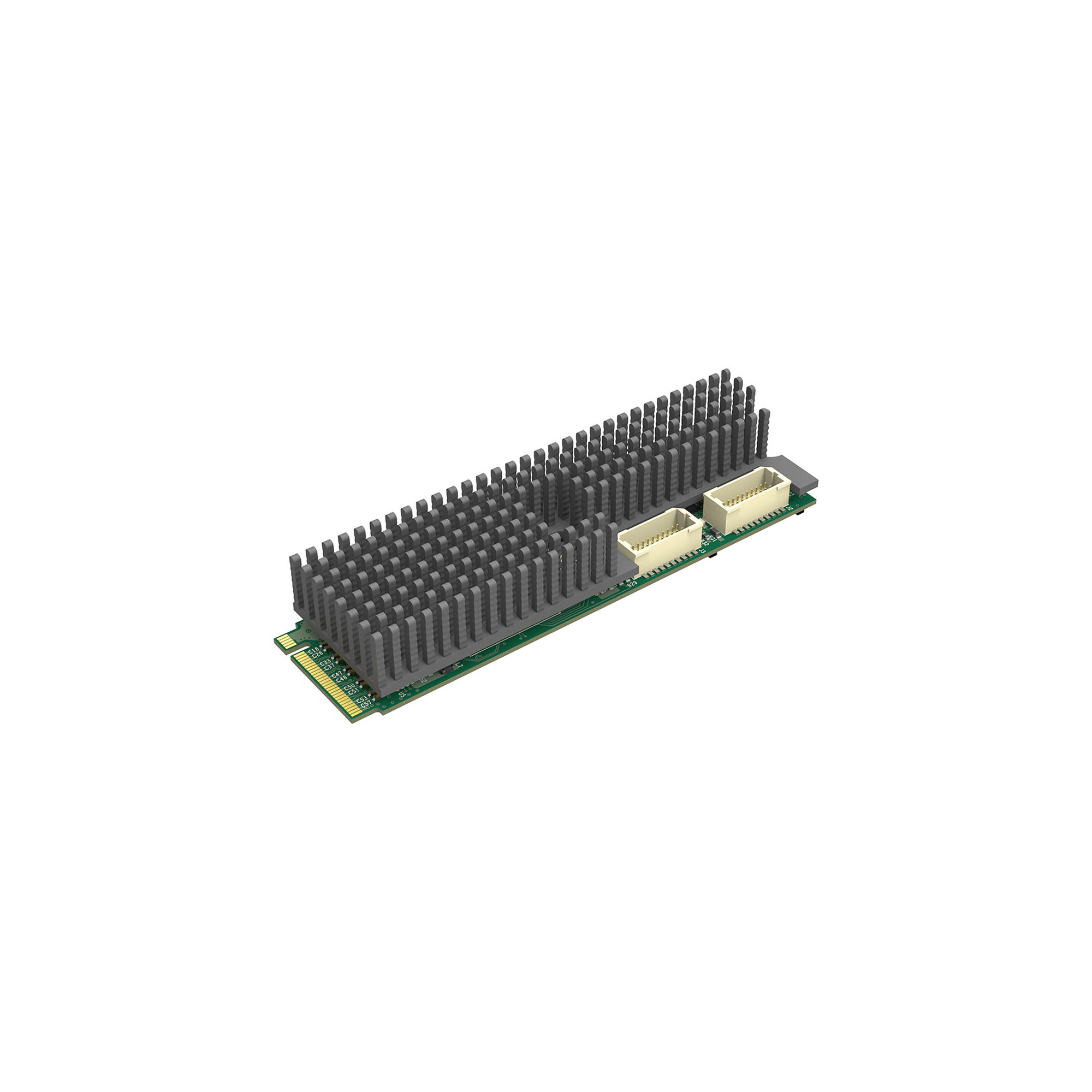

The Magewell Eco Capture Dual HDMI M.2 Card supports two HDMI input sources simultaneously and allows you to capture up to 2048 x 2160 resolution with embedded audio from each source to your computer. Featuring an M.2 (PCIe 2.0) computer interface, this card provides the flexibility to be used in compact/thin tablet computers and other small form factor PCs where PCIe slots may be at a minimum. It's compatible with Windows and Linux operating systems and is capable of operating 24 hours a day, 7 days a week while an LED indicator confirms the working state of the input the entire time (idle, input signal locked, memory failed, or FPGA configuration).

The Eco Capture Dual HDMI M.2 Card also offers many processing and other features, including resolution scaling and a high-fidelity pipeline. The card has two native JST SHD input connectors and comes with two matching SHD to HDMI type A adapter cables for connecting your HDMI signals.
Key Features

Two JST SHD connectors supporting included SHD to HDMI adapter cables
Capture 2K x 2K resolution (2048 x 2160)
M.2 Interface (PCIe 2.0)
Compatible with Windows and Linux
Resolution scaling
High-fidelity video processing pipeline
Image control
Various output color spaces
SG-DMA transmission mode
Multiple devices on one host
Multiple replicated capture streams
Hardware time stamp
Mounting hole
LED indicator
Firmware upgradeable
Common driver
24/7 continuous operation

HDMI Specific Features

165 MHz HDMI receiver
Adaptive HDMI equalizer
HDMI transmission distance up to 100'
Customized EDID
Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry
8/10/12-bit color depths
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Up to 8-channel IEC60958/IEC61937 audio streams
Extraction of audio formation information and channel status data
Extraction of video timing information
Extraction of 3D format information
Extraction of Sony/Canon DSLR timecode
Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Video Capture Formats
Image resolutions up to 2048 x 2160
Frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth, for 1280 x 1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock - for example, the maximum frame rate of 1920 x 1080 resolution can up to 80 fps)
4:2:0 8-bit capture formats: NV12, I420, YV12
4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
More capture formats are supported via Magewell Capture SDK for DirectKS
Video Processing Features
Video processing pipelines with 180 megapixels processing bandwidth
8-bit 4:4:4 video processing
Cropping
Scaling
Deinterlacing
Video aspect ratio conversion
Color format conversion
Frame rate conversion
Video Deinterlacing
Weave
Blend top and bottom field
Top field only
Bottom field only
Aspect Ratio Conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
Color Format Conversion
Auto or manual selection of input color format and quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation range
Multiple Cards Per System
Support for multiple cards plugged to one system
On-board rotary switch to set card number with 16 positions
System hardware device tree will display "01: Eco Capture Dual HDMI M.2" when rotary switch is set to 0001, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Replicated Capture Streams
Unlimited capture streams for any one input channel (but in the same format)
Timestamp & A/V Synchronization
Hardware based 100ns high resolution clock
Audio frames (192 audio samples) and video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA
700 MB/s per channel DMA bandwidth in PCIe 2.x system
400 MB/s per channel DMA bandwidth in PCIe 1.x system
Auto detection of Intel tiled GPU surface
DirectGMA for AMD video adapter chipsets
GPUDirect for NVIDIA video adapter chipsets
SDK
Magewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility and performance (Windows)
Windows Driver Tweaks
All options can be controlled by three levels of registry key: global level, product level, and device level
Video, audio, crossbar filter names can be customized via registry keys
