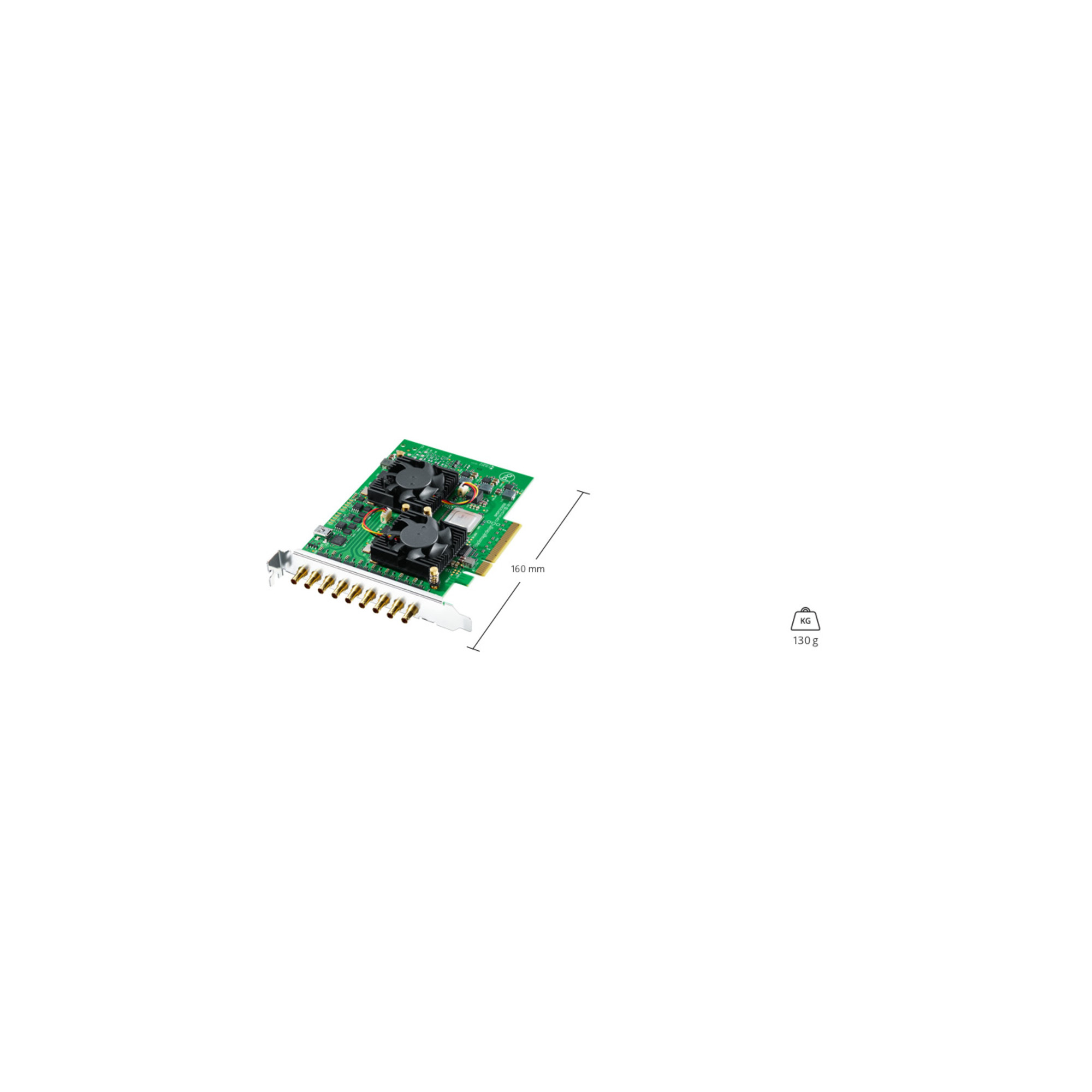

DeckLink QUAD 2
Blackmagic
Build custom broadcast solutions with DeckLink Quad. When you need broadcast grade multi channel SDI capture and playback, then DeckLink Quad gives you four completely independent DeckLink capture cards, each with bypass relays and watchdog timer, all designed into a single PCI Express card! Perfect for developers and OEMs, now you have an ideal solution for media playout servers and real time processors.
° 4 PCIe connections for low latency
° Output at a transfer rate of 10Gbps
° Instant switch between a SD and HD modes
° Allows connection of up to 16 independent SDI devices
° Supports up to 8 channels of uncompressed SDI embedded audio and Dolby digital pass through that provides high quality sound output
° Offers a wide range of features allowing you to use custom made option to suit your needs
° Includes a built-in keyer for live overlay of graphics into production switchers
° Used to connect to SDI enabled VTR such as Digital Betacam, HDCAM SR, XDCAM, D5, DVCPRO HD, etc.
° Zero latency for instant response
° Offers compatibility with Mac OS X, Windows 7, or 64-bit Linux computers
° Includes media express application which provides timecode accurate capture and play out of uncompressed QuickTime, AVI, and DPX files
CABLE-DINDIN
CABLE-DINBNCFEMALE
4.512 / 5.000
Connections
SDI Video Input: 8 x 12-bit bi-directional connections for SD and HD, independently configurable as inputs or outputs.
SDI Video Output: 8 x 12-bit bi-directional connections for SD and HD, independently configurable as inputs or outputs.
SDI Audio Input: 16 channels embedded in SD and HD
SDI Audio Output: 16 channels embedded in SD and HD
Sync Input: Black burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94, or tri-sync in any HD format.
Computer Interface: 8 lane PCI Express, compatible with 8 and 16 lane PCIe slots.
DeckLink Quad 2 Codec
Compatible with: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, ProRes 422 (Proxy), uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4
Software included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and the Blackmagic Driver on Mac OS Blackmagic driver on Windows 8 and Windows 10. Blackmagic Desktop Video Utility and Blackmagic Driver on Linux
Internal Software Update
Firmware embedded in the driver. Loads at system startup or via software updates.
Physical Installation: 8-lane PCI Express, compatible with 8- and 16-lane PCI Express slots on Mac OS X, Windows 8, Windows 10, and Linux. Mac OS X operating systems require a Mac Pro with a PCI Express slot. See the Support pages for complete system requirements.
Compatible Software Applications
&emsp, DaVinci Resolve
&emsp, Fusion
&emsp, Final Cut Pro X
&emsp, Premiere Pro CC
&emsp, Avid Media Composer
&emsp, After Effects CC
&emsp, Avid Pro Tools
&emsp, Steinberg Cubase
&emsp, Steinberg Nuendo
&emsp, Photoshop CC
Compatibility with other programs
Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in, live:cut, just:play and just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro, Studio, Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity and InfoCaster.
Standard Video
Compatible SD formats: 525/29.97 NTSC, 625/25 PAL
Compatible HD formats: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60
SDI Standard Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B
SDI Metadata Support: Vertical timecode readout for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in the archive. RP188 HD and closed captioning.
Audio Sampling: Television standard sampling rate of 48kHz and 24bit.
Video Sampling: 4:2:2 and 4:4:4
Color Accuracy: 8- and 10-bit YUV 4:2:2 and 8-, 10- and 12-bit RGB 4:4:4
Color Space: REC 601, REC 709
Data Processing: Color space conversion
&emsp, Real-time via hardware
&emsp, Downconversion from HD
High-quality built-in hardware for converting HD signals to lower SD resolution. Selectable SD downconversion formats: letterbox, 16:9 anamorphic, and 4:3 center cut
Upconversion from HD
High-quality built-in hardware for converting SD to 720HD or 1080HD during playback. Selectable 4:3 pillarbox, 14:9 (zoom), and 16:9 (zoom) effects.
Cross conversion
High-quality built-in hardware for converting from 720HD to 1080HD and vice versa during playback.
Real-time effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Operating Systems
Mac Icon
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows Windows 8.1 or Windows 10.
Linux: Linux
Environmental Specifications
Operating Temperature: 5° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C
Relative Humidity: 0% to 90% non-condensing
